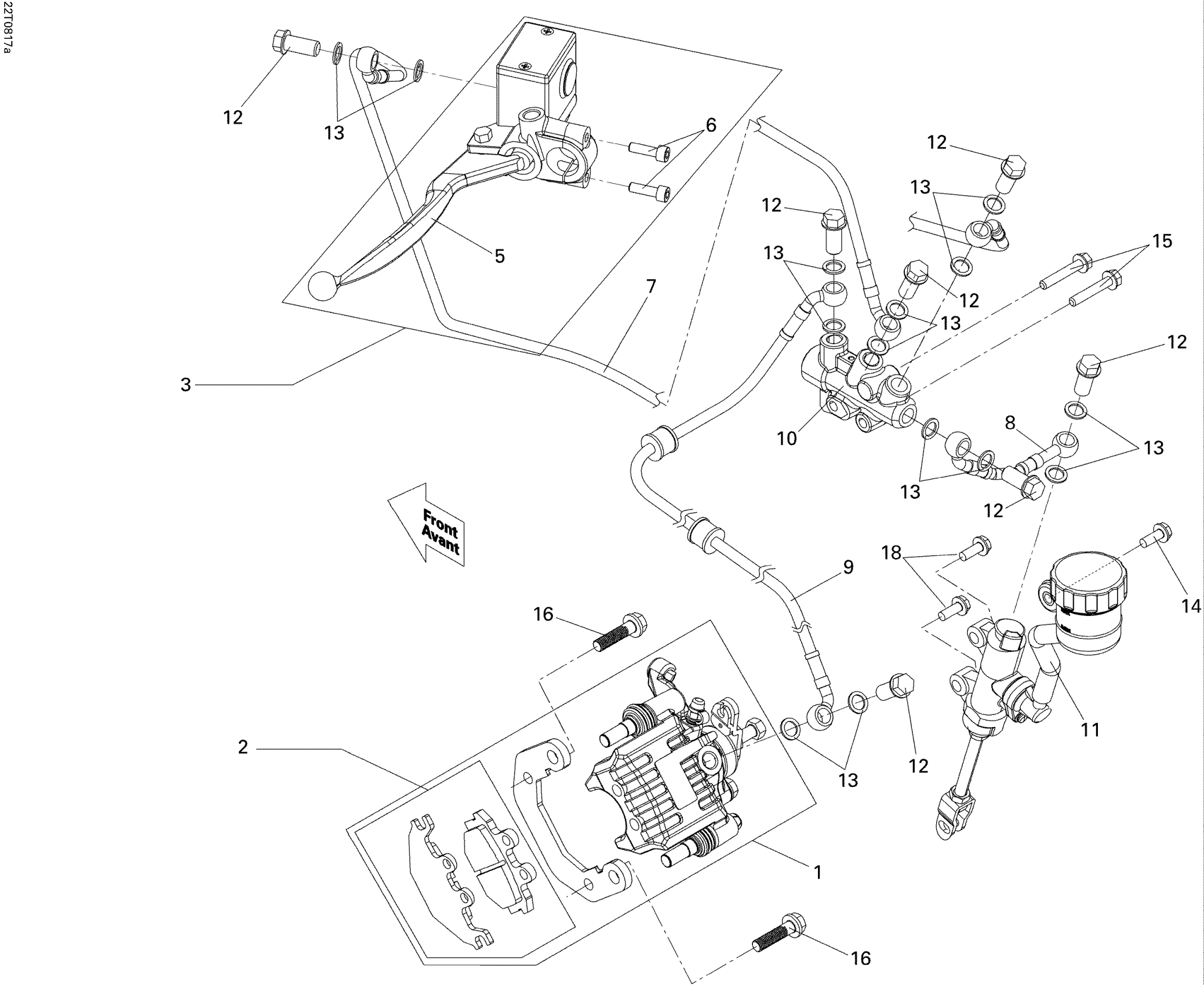

Can-Am DS 250 CVT, 2008 Rear Brake Diagram

#

Description
Price

1

REAR BRAKE CALIPER ASS'Y - Call your local BRP dealership

S43100RCA000

Unavailable

1

Rear Brake Caliper Ass'y

S43100RCB000

$502.21

2

Rear Brake Pad Kit

S4311ARCA000

$39.52

3

REAR MASTER CYLINDER ASS'Y - Call your local BRP dealership

S43500RCA000

Unavailable

3

Rear Master Cylinder Ass'y

S43500RCB000

$216.39

5

Not Available As Spare Parts

NASP/NDPR

Unavailable

6

Socket Bolt M6 X 25

S967000602507

$0.39

7

HOSE - Call your local BRP dealership

S46202RCA000

Unavailable

7

Brake Hose

S46202RCB000

$112.66

8

Foot Master Cylinder Hose

S46205RCA000

Unavailable

8

Foot Master Cylinder Hose

S46205RCB000

$64.15

9

REAR BRAKE CALIPER HOSE - Call your local BRP dealership

S46206RCA000

Unavailable

9

Rear Brake Caliper Hose

S46206RCB000

$97.73

10

PRESSURE CONTROL VALVE - Call your local BRP dealership

S46300RA1000

Unavailable

10

Pressure Control Valve

S46300RCB000

$194.75

11

Foot Master Cylinder Ass'y

S46500RCA000

$232.06

12

Banjo Bolt

S90145M9Q000

$2.24

13

Washer

S90545M9Q000

$0.88

14

Flanged Bolt M6 X 18

S958010601807

$0.39

15

Flanged Bolt M6 X 40

S958010604007

$0.72

16

Flanged Bolt M8 X 12

S958010801207

$0.72

18

Flanged Bolt M6 X 16

S958010601607

$0.39
