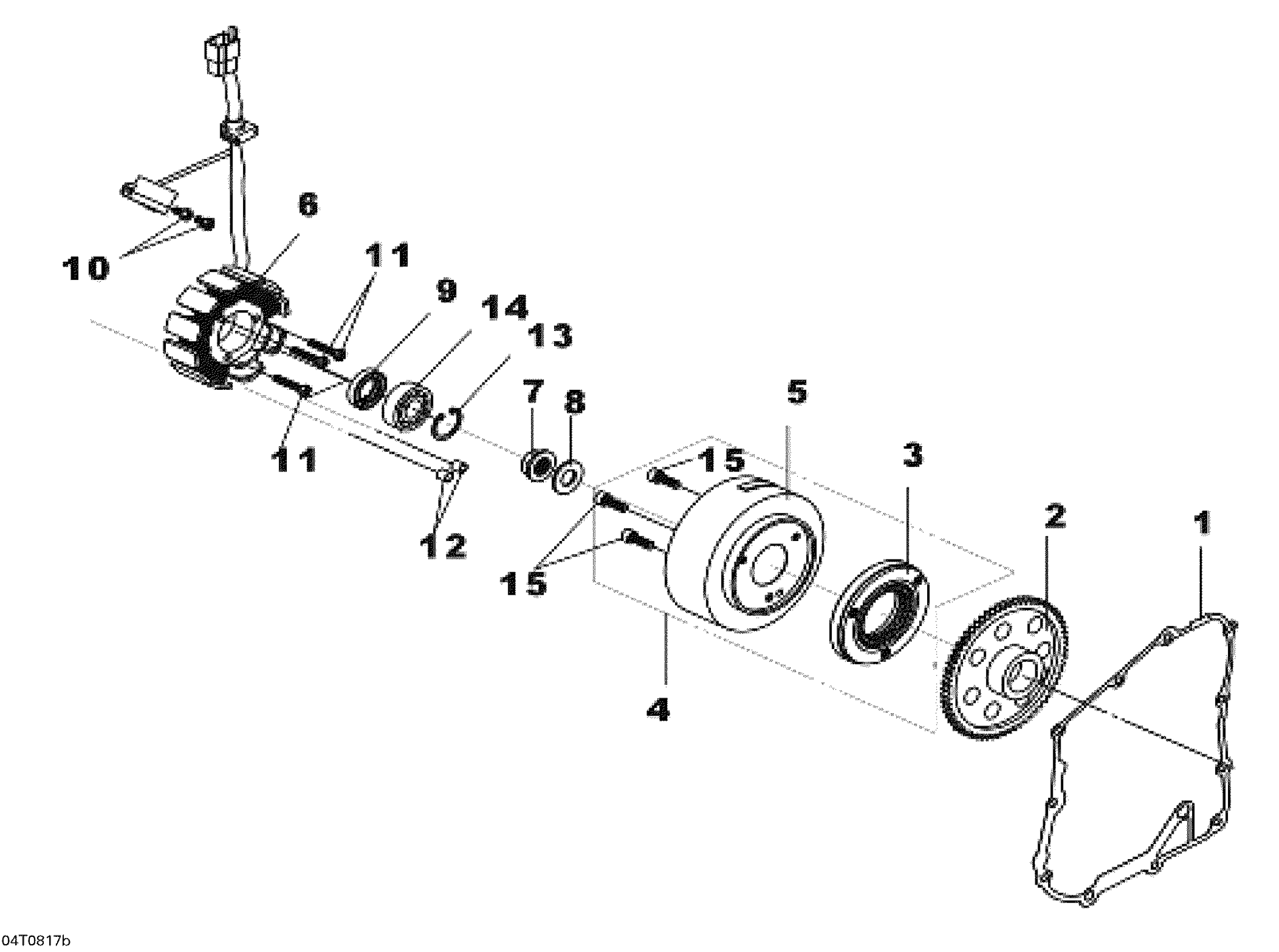

Can-Am DS 250 CVT, 2008 Magneto Diagram

#

Description
Price

1

Cover Gasket

S11394RB1003

$7.60

2

Starter Wheel

S28110HMA000

$67.13

3

One Way Clutch

S2812AHMA000

$322.36

4

Generator Flywheel

S3110ARB1010

$425.34

5

Not Available As Spare Parts

NASP/NDPR

Unavailable

6

Stator Ass'y

S31120RCA000

$154.45

7

NUT FLANGE - Call your local BRP dealership

S90201KR8751

Unavailable

8

Thrust Washer

S90401KJ9000

$1.66

9

Oil Seal

S91202HMA000

$5.04

10

Not Available As Spare Parts

NASP/NDPR

Unavailable

11

Pan Screw M5 X 16

S93500060400A

Unavailable

12

Dowel Pin

S9430108140

$2.57

13

Circlip

S9452032000

$0.88

14

Ball Bearing

S961406201310

$11.33

15

Not Available As Spare Parts

NASP/NDPR

Unavailable
