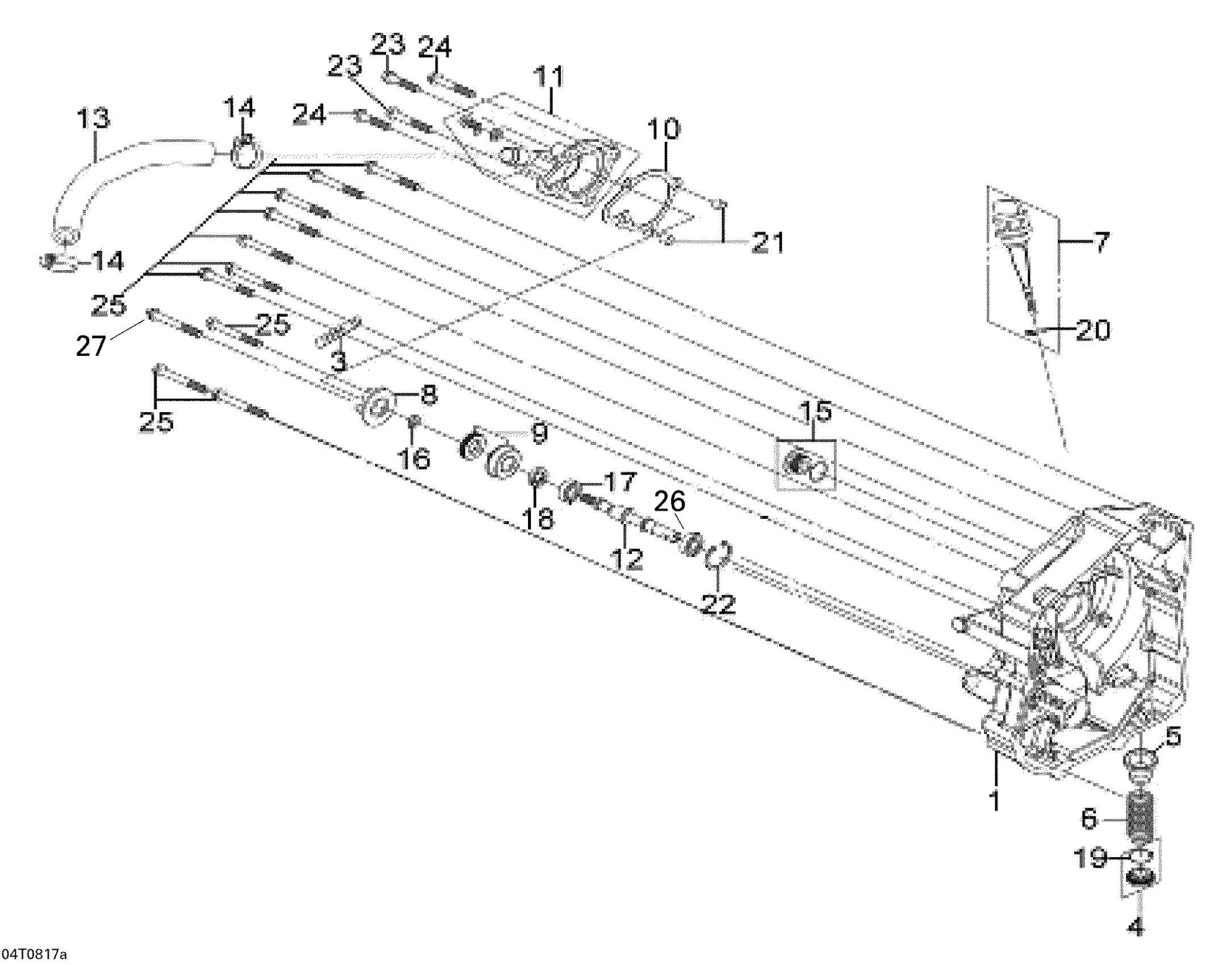

Can-Am DS 250 CVT, 2008 Magneto Cover and Water Pump Diagram

#

Description
Price

1

Crankcase

S11330RB1000

$167.88

3

CLAMP - Call your local BRP dealership

S12342G02000

Unavailable

4

Cap Ass'y

S1236AV02000

$6.16

5

OIL FILTER SCREEN - Call your local BRP dealership

S15421M9Q000

Unavailable

6

Oil Filter Screw Spring

S15426M9Q000

$19.37

7

Oil Level Gauge Ass'Y

S1565ARCA001

$12.04

8

Water Pump Impeller

S19215HLA000

$5.93

9

Mechanical Seal

S19217H9A300

$22.99

10

Gasket

S19229H9A002

$0.91

11

Water Pump Cover

S1922AHLA000

$12.34

12

Water Pump Shaft

S19231HMA000

$14.48

13

Hose

S19502RB1000

$6.16

14

Clamp

S19505KS6700

$1.40

15

Cap And Seal Ass'y

S9008AH9A000

$2.68

16

Washer

S90423KJ9000

$0.49

17

Ball Bearing

S91001KJ9005

$9.26

18

Oil Seal

S91205KF0003

$4.19

19

Not Available As Spare Parts

NASP/NDPR

Unavailable

20

O-RING - Call your local BRP dealership

293300037

Unavailable

21

Dowel Pin

S9430108140

$2.57

22

Circlip

S9452026000

$0.88

23

Flanged Bolt M6 X 22

S960010602200

$0.39

24

Flanged Bolt M6 X 32

S960010603200

$0.39

25

Flanged Bolt M6 X 45

S960010604500

$0.39

26

Ball Bearing

S961006000000

$12.34

27

Hex. Flange Screw M6 X 70

S960010607000

$0.84
