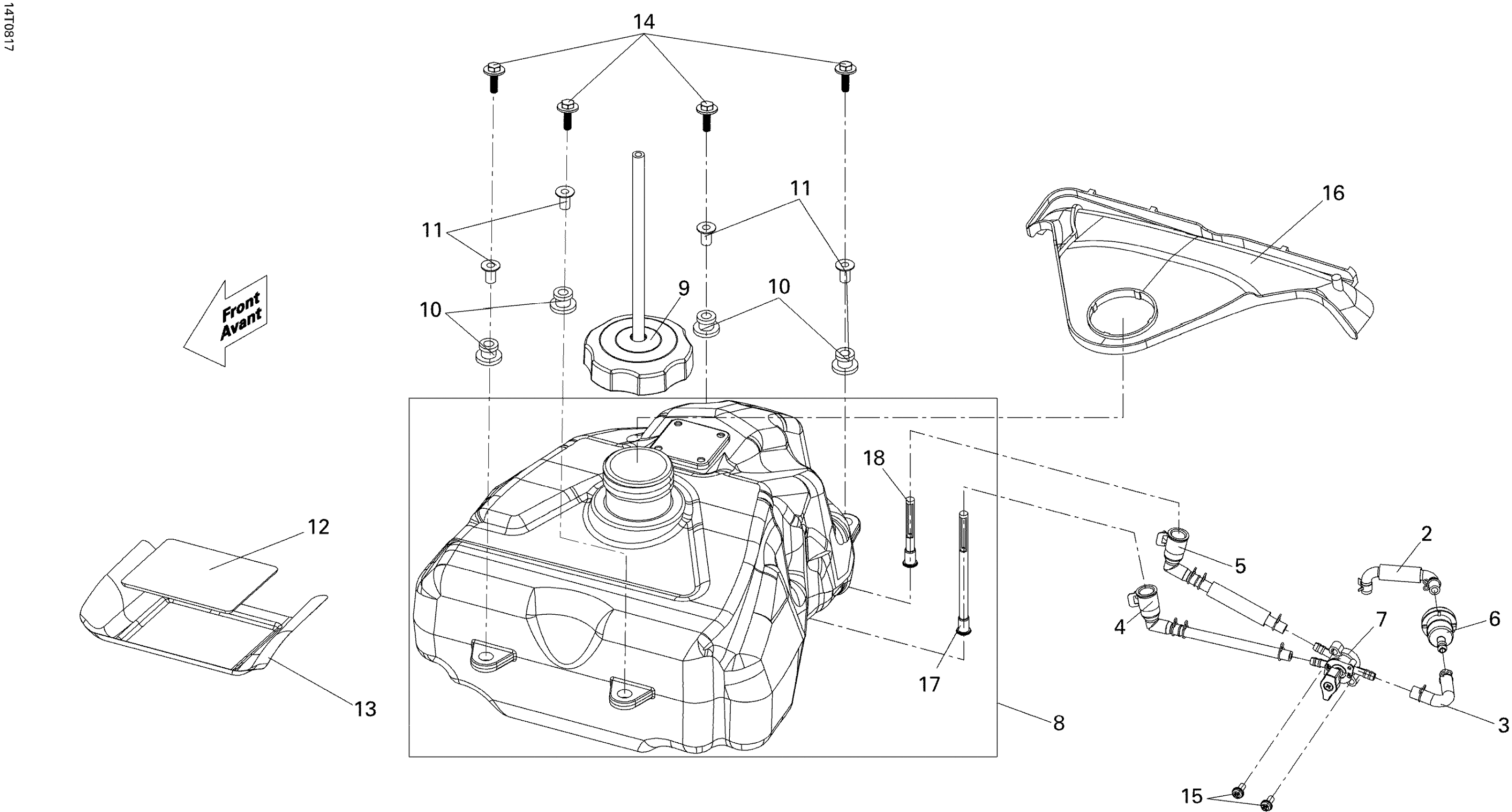

Can-Am DS 250 CVT, 2008 Fuel System Diagram

#

Description
Price

2

Hose

S16702RFB000

$43.25

3

Hose

S16702RFB000

$43.25

4

Fuel Tube

S16708RCA000

Unavailable

5

Fuel Tube

S16708RCA000

Unavailable

6

Fuel Strainer

S16910GN5911M1

$17.88

7

Fuel Valve

V16950DGF010LL

$43.25

8

Fuel Tank

S17500RCB000

$223.85

9

Fuel Tank Cap

S17620RCB000

$39.52

10

Fuel Tank Rubber Bushing

S80103RCA000

$5.18

11

Fuel Tank Collar

S80104RCA000

$4.19

12

Heat Shield A

S80101RCA000

$20.12

13

Heat Shield B

S80102RCA000

$17.88

14

Washer Bolt M6 X 30

S934040603007

$0.39

15

Washer Bolt M5 X 18

S938910501807

$0.39

16

Fuel Tank Cover

S17510RFA000

$38.03

17

Fuel Strainer A

S17501RCA000

$18.63

18

Fuel Strainer B

S17502RCA000

$22.36
