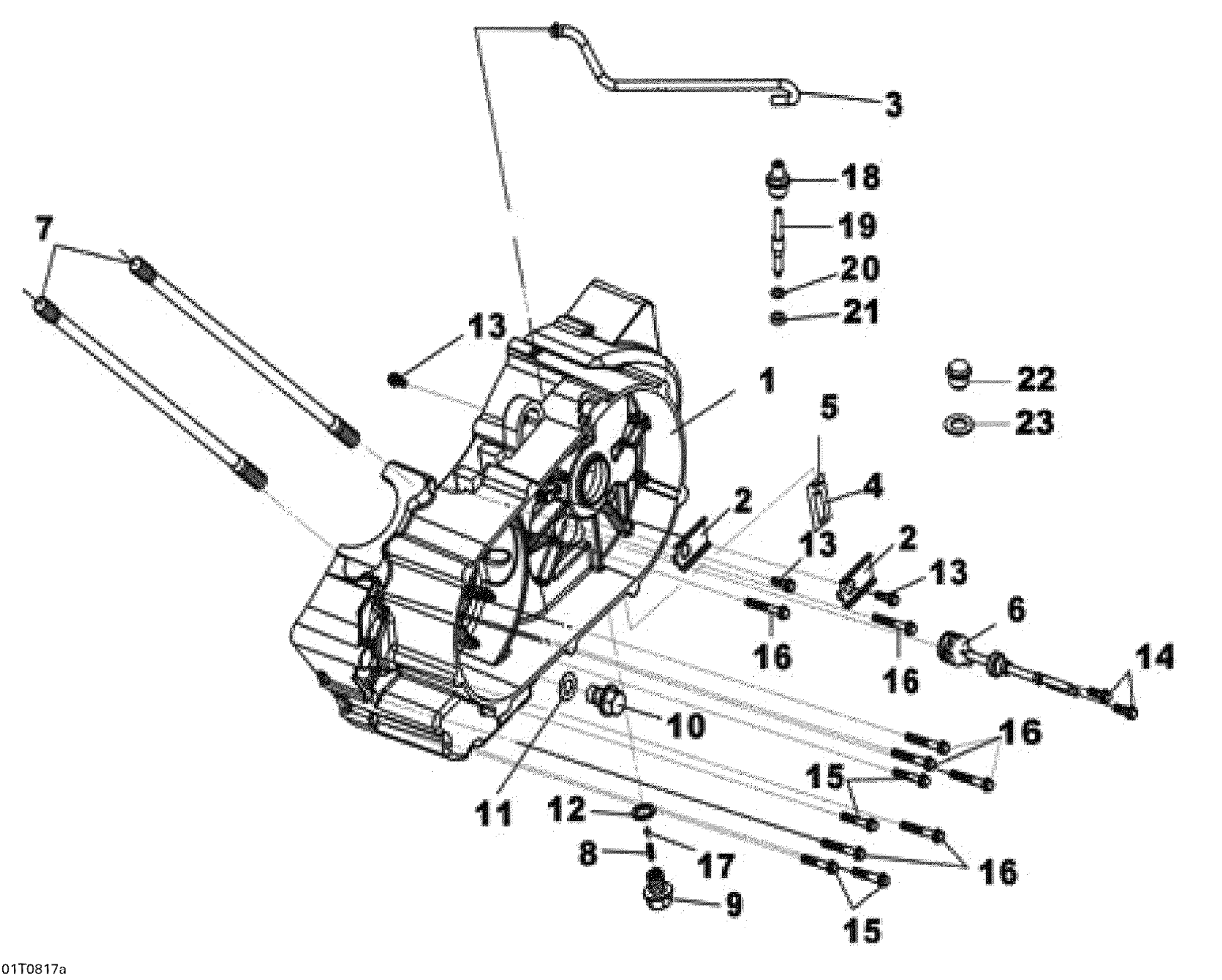

Can-Am DS 250 CVT, 2008 Left Crankcase Half Diagram

#

Description
Price

1

LH Crankcase Ass'y

S11200RB1000

$399.22

2

Setting Plate

S11205RB1000

$4.09

3

Breather Hose

S11221RB1000

$13.39

4

Drain Tube Ass'y

S11230RA1000

$4.25

5

Not Available As Spare Parts

NASP/NDPR

Unavailable

6

Change Sw

S3575ARB1020

$32.81

7

Cylinder Stud

S90032HMA000

$10.30

8

Spring Fixed Catch

S90051RB1000

$1.04

9

Drain Plug Screw

S90052RB1000

$1.67

10

Drain Plug Screw

S9280012000

$0.72

11

Washer 12 mm

S9410912000

$0.49

12

Drain Plug Screw Washer 14 mm

S9410914000

$0.49

13

Hex. Flange Screw M6 X 12

S960010601200

$0.72

14

Hex. Flange Screw M6 X 18

S960010601800

$0.39

15

Hex. Flange Screw M6 X 50

S960010605000

$0.72

16

Hex. Flange Screw M6 X 70

S960010607000

$0.84

17

Steel Ball

S9621112000

$6.16

18

Gear Fixing Bolt

S23434RCA000

Unavailable

19

METER GEAR - Call your local BRP dealership

S23433RCA000

Unavailable

20

Thrust Washer

S23435RCA000

Unavailable

21

OIL SEAL - Call your local BRP dealership

S91201RCA000

Unavailable

22

Sealing Bolt

S11206RB1000

$6.73

23

Sealing Washer

S90403RB1000

$1.04

23

Sealing Washer 10.5 mm

S90442HMA000

Unavailable
