01- Cylinder Head and Valve

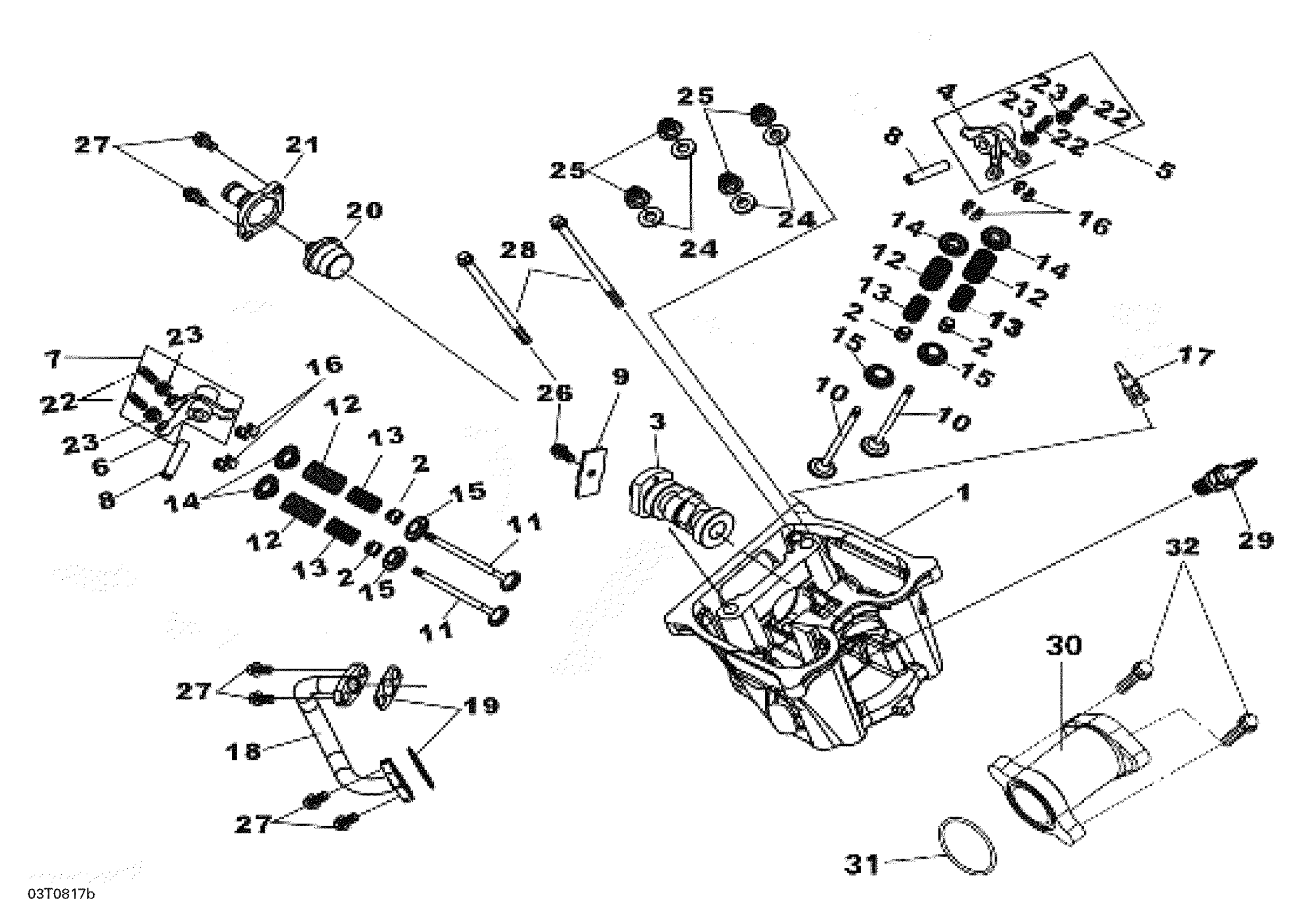

Can-Am DS 250 CVT, 2008 01- Cylinder Head and Valve Diagram
#
1
Cylinder Head Ass'y
S12200RB1000
Unavailable
2
Valve Stem Seal Cap
S12209H6B900M2
Unavailable
3
Cam Shaft
S14100RB1000
Unavailable
4
Not Available As Spare Parts
NASP/NDPR
Unavailable
5
INTAKE VALVE ROCKER ARM - Call your local BRP dealership
S14431RB1000
Unavailable
6
Not Available As Spare Parts
NASP/NDPR
Unavailable
7
VALVE ROCKER ARM EX. - Call your local BRP dealership
S1444ARB1000
Unavailable
8
Rocker Arm Shaft
S14451HMA000
Unavailable
9
Cam Shaft Setting Plate
S14457HMA000
Unavailable
10
Intake Valve
S14711HMA000
Unavailable
11
Exhaust Valve
S14721RFS000
Unavailable
12
Valve Outer Spring
S14751HMA000
Unavailable
13
Valve Inner Spring
S14761HMA000
Unavailable
14
Valve Spring Retainer
S14771M8Q000
Unavailable
15
Valve Spring Seat
S14777KN7670
Unavailable
16
Valve Cotter
S14781M9Q000
Unavailable
17
Temperature Sensor
S37750PC1004
Unavailable
18
AIR PIPE COMP - Call your local BRP dealership
S18647RB1000
Unavailable
19
Air Pipe Gasket
S18654N14000
Unavailable
20
Thermostat
S19300HMA000
Unavailable
21
Thermostat Cover
S19315KJ9000
Unavailable
22
Not Available As Spare Parts
NASP/NDPR
Unavailable
23
Not Available As Spare Parts
NASP/NDPR
Unavailable
24
Sealing Washer 10.5 mm
S90442HMA000
Unavailable
25
Flanged Nut 10 mm
S9405010080
Unavailable
26
Flanged Bolt M6 X 14
S960010601408
Unavailable
27
Flanged Bolt M6 X 16
S960010601600
Unavailable
28
Flanged Bolt M6 X 90
S960010609000
Unavailable
29
Spark Plug
219703176
Unavailable
30
Inner Pipe
S1711ARCA000
Unavailable
31
O-ring
S91308HMA000
Unavailable
32
Flanged Bolt M6 X 22
S960010602500
Unavailable
