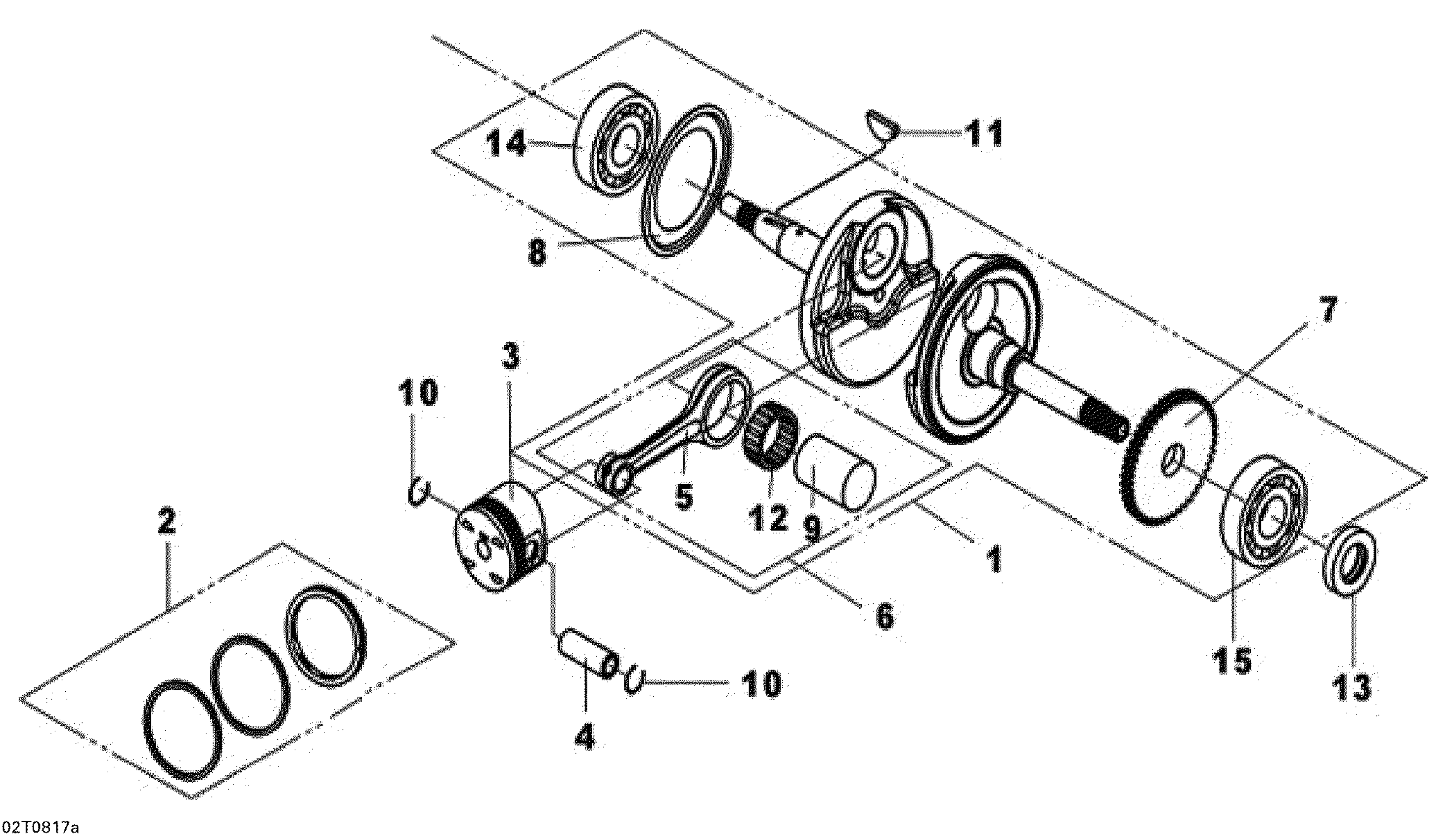

Can-Am DS 250 CVT, 2008 Crankshaft And Pistons Diagram

#

Description

Price

1

Crankshaft Ass'y

S13000RB1000

$542.49

2

Piston Ring Set

S13010HMA000

$56.49

3

Piston

S13101RB1000

$82.99

4

Piston Pin

S13111HMA000

$25.49

5

Not Available As Spare Parts

NASP/NDPR

Unavailable

6

Not Available As Spare Parts

NASP/NDPR

Unavailable

7

Not Available As Spare Parts

NASP/NDPR

Unavailable

8

Not Available As Spare Parts

NASP/NDPR

Unavailable

9

Not Available As Spare Parts

NASP/NDPR

Unavailable

10

Clip Piston Pin

S90601HMA000

$4.89

11

Semicycle Key

S90701HB6010

$4.44

12

Bearing

S91004RB1000

$78.49

13

Oil Seal

S91201HMA300

$8.85

14

Ball Bearing

S961006207010

$28.49

15

Radial Ball Bearing

S91002RB1000

$55.99
