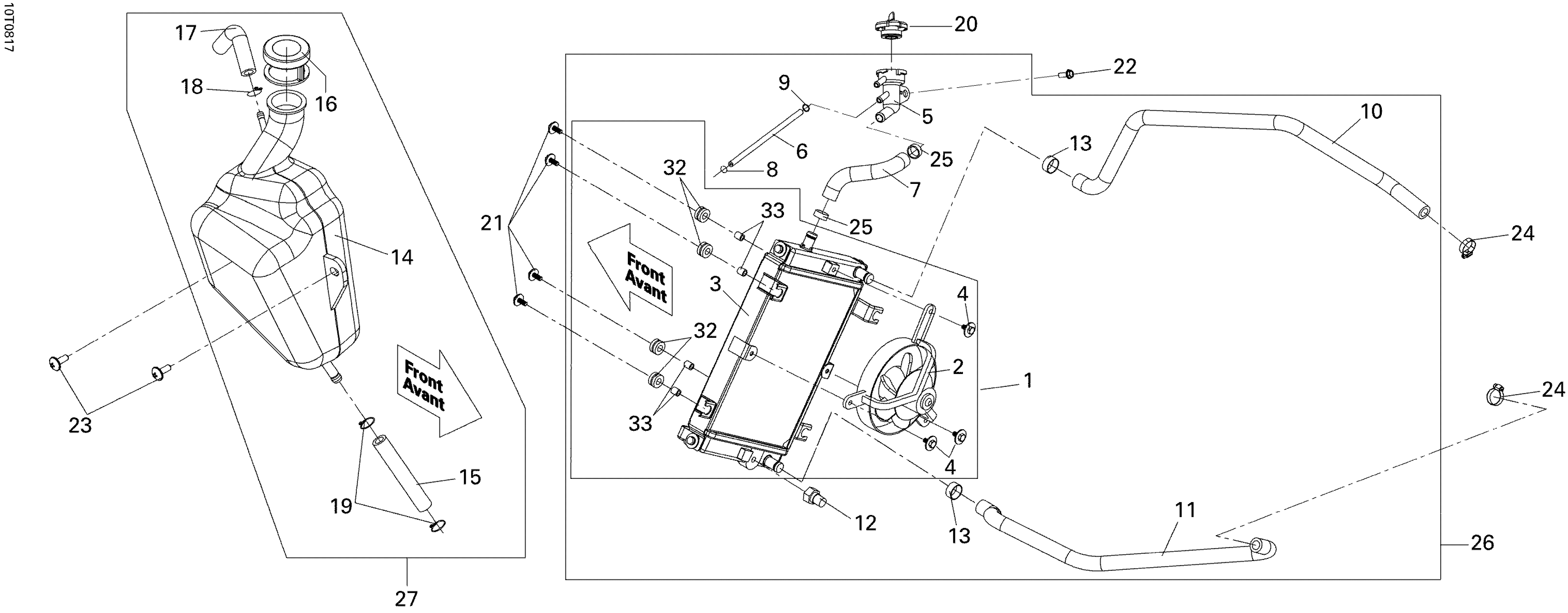

Can-Am DS 250 CVT, 2008 Cooling System Diagram

#

Description
Price

1

Not Available As Spare Parts

NASP/NDPR

Unavailable

2

Fan Ass'y

S19005RB1000

$397.73

3

Radiator

S19010RCA000

$387.28

4

Flanged Bolt M6 X 12

S958010601208

$0.39

5

Filler Neck Ass'y

S19039H9A000

$27.58

6

Hose

S19124RB1000

$10.51

7

Hose

S19125RB1000

$10.51

8

Spring Clamp, Universal

S950024073008

$0.88

9

Spring Clamp, Universal

S950024085008

$0.88

10

Radiator Inlet Hose

S19121RB1000

$17.13

11

Radiator Outlet Hose

S19123RCA000

$14.33

12

Thermostatic Switch

S37760RCA000

$63.40

13

Clamp

S19505KS6700

$1.40

14

Not Available As Spare Parts

NASP/NDPR

Unavailable

15

Not Available As Spare Parts

NASP/NDPR

Unavailable

16

RADIATOR PRESSURE CAP - Call your local BRP dealership

S19104MB0700

Unavailable

17

Not Available As Spare Parts

NASP/NDPR

Unavailable

18

Not Available As Spare Parts

NASP/NDPR

Unavailable

19

Not Available As Spare Parts

NASP/NDPR

Unavailable

20

Radiator Cap Ass'y

S19111H9A000

$29.82

21

Washer Bolt

S934040602007

$0.39

22

Flanged Bolt M6 X 16

S958010601607

$0.39

23

Washer Screw 5 X 18

S90119HMA000

$2.03

24

Clamp

S19505KS6700

$1.40

25

Hose Clamp

S90682SB0671

$6.69

26

Not Available As Spare Parts

NASP/NDPR

Unavailable

27

Reserve Tank Ass'y

S1910ARCA000

$27.58

30

Not Available As Spare Parts

NASP/NDPR

Unavailable

31

Not Available As Spare Parts

NASP/NDPR

Unavailable

32

Rubber Washer

S19011RCA000

$16.39

33

Bushing

S19012RCA000

$14.43
