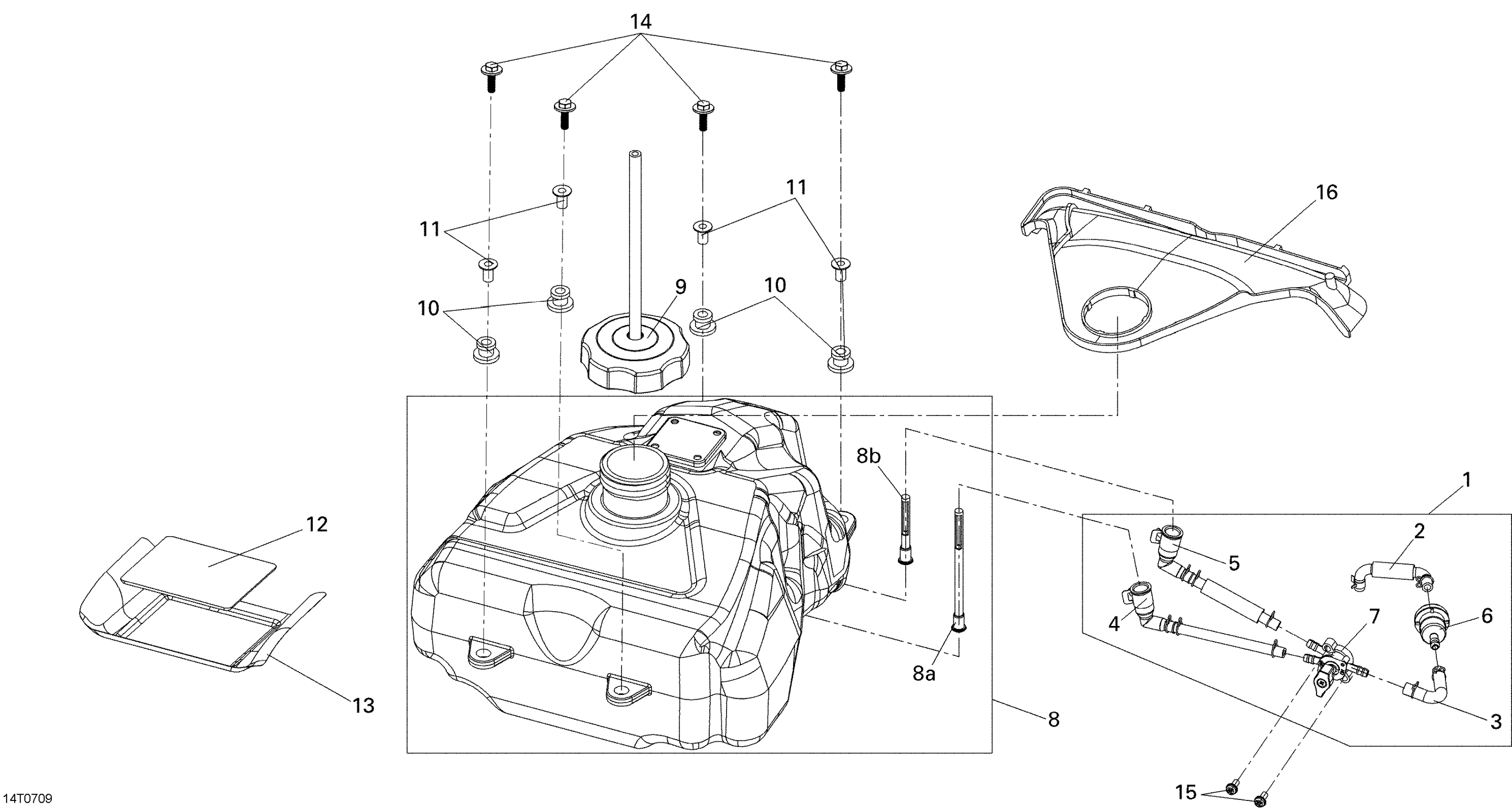

Can-Am DS 250, CE, 2007 02- Fuel System Diagram

#

Description

Price

1

Not Available As Spare Parts

NASP/NDPR

Unavailable

2

Hose

S16702RFB000

Unavailable

3

Hose

S16702RFB000

Unavailable

4

Fuel Tube

S16708RCA000

Unavailable

5

Fuel Tube

S16708RCA000

Unavailable

6

Fuel Strainer

S16910GN5911M1

Unavailable

7

Fuel Valve

V16950DGF010LL

Unavailable

8

Fuel Tank

S17500RCB000

Unavailable

8a

Fuel Strainer A

S17501RCA000

Unavailable

8b

Fuel Strainer B

S17502RCA000

Unavailable

9

Fuel Tank Cap

S17620RCB000

Unavailable

10

Fuel Tank Rubber Bushing

S80103RCA000

Unavailable

11

Fuel Tank Collar

S80104RCA000

Unavailable

12

Heat Shield A

S80101RCA000

Unavailable

13

Heat Shield B

S80102RCA001

Unavailable

14

Washer Bolt M6 X 30

S934040603007

Unavailable

15

Washer Bolt M5 X 18

S938910501807

Unavailable

16

Fuel Tank Cover

S17510RFA000

Unavailable
