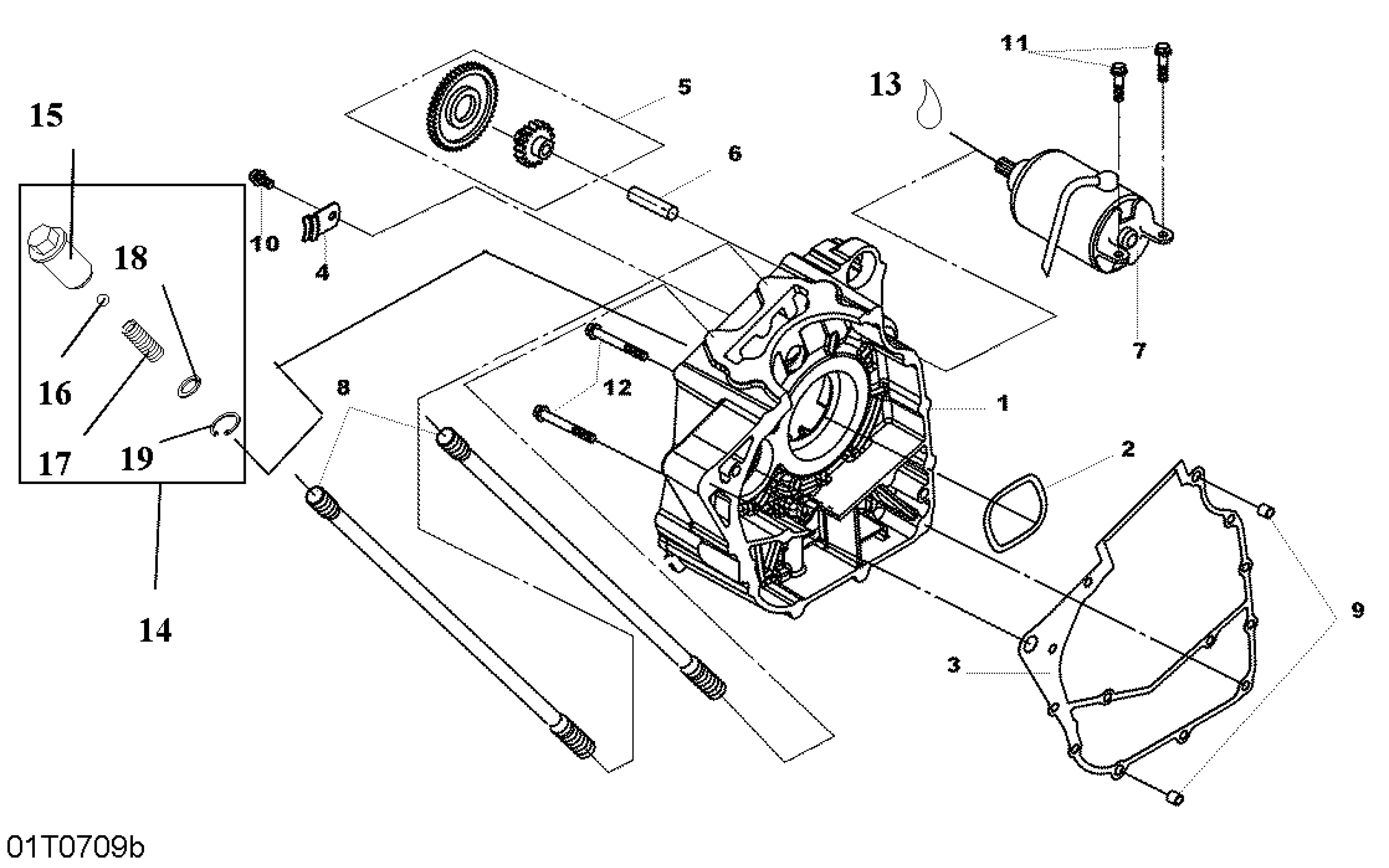

Can-Am DS 250, CE, 2007 01- Right Crankcase Half Diagram

#

Description
Price

1

RH Crankcase Ass'y

S11100RB1000

Unavailable

2

Wave Washer

S11108HMA000

Unavailable

3

Crankcase Gasket

S11191RB1000

Unavailable

4

Cam Chain Setting Plate

S14151HMA000

Unavailable

5

Starter Reduction Gear Ass'y

S28101RB1000

Unavailable

6

Starter Reduction Gear Shaft

S28102RB1000

Unavailable

7

Starter Motor

S31200RB1000

Unavailable

8

Cylinder Stud

S90031HMA000

Unavailable

9

Dowel Pin

S9430108140

Unavailable

10

Flanged Bolt M6 X 10

S960010601008

Unavailable

11

Flanged Bolt M6 X 22

S960010602200

Unavailable

12

Flange Bolt M6 X 55

S960010605500

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Oil Relief Valve Ass'y

S15200HMA000

Unavailable

15

Not Available As Spare Parts

NASP/NDPR

Unavailable

16

Not Available As Spare Parts

NASP/NDPR

Unavailable

17

Not Available As Spare Parts

NASP/NDPR

Unavailable

18

Not Available As Spare Parts

NASP/NDPR

Unavailable

19

Not Available As Spare Parts

NASP/NDPR

Unavailable
