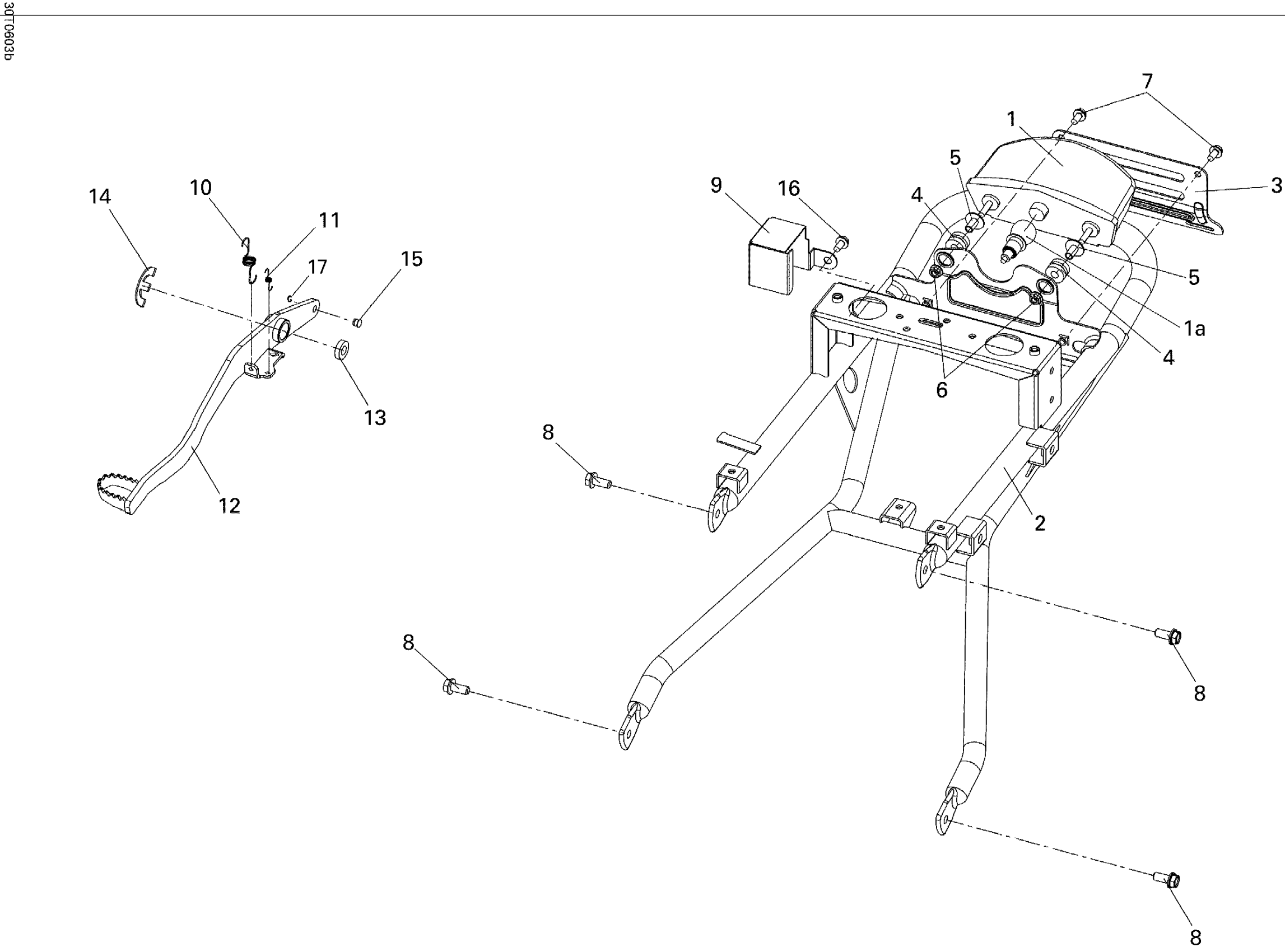

Can-Am DS 250, CE, 2006 Rear Frame Diagram

#

Description
Price

1

TAIL LIGHT ASS'Y - Call your local BRP dealership

S33700RCA000

Unavailable

1a

Tail Light Bulb

S34906RCA000

$13.75

2

Rear Frame

S50180RCA000

Unavailable

3

License Plate Support

S50185RCA000

Unavailable

4

Rubber Washer

S80103X01000

$4.14

5

Fender Collar

S80104X01000

$4.29

6

Flanged Nut 6 mm

S9405006070

$0.46

7

Flanged Bolt M6 X 12

S958010601207

$0.42

8

Flanged Bolt M8 X 18

S958010801807

$0.77

9

CVT Tube Stay

S50175RCA000

$14.49

10

Brake Pedal Spring

S50706RCA000

$5.40

11

Brake Switch Spring

S50707RCA000

$7.99

12

Brake Pedal Ass'y

S50708RCA000

$62.99

13

Brake Plate Washer

S50709RCA000

$3.29

14

E-Ring

S9454005017

$1.09

15

Pin

S91510RCA000

$5.50

16

Flanged Bolt M8 X 12

S958010801207

$0.77

17

Circlip 5 mm

293370002

$5.50
