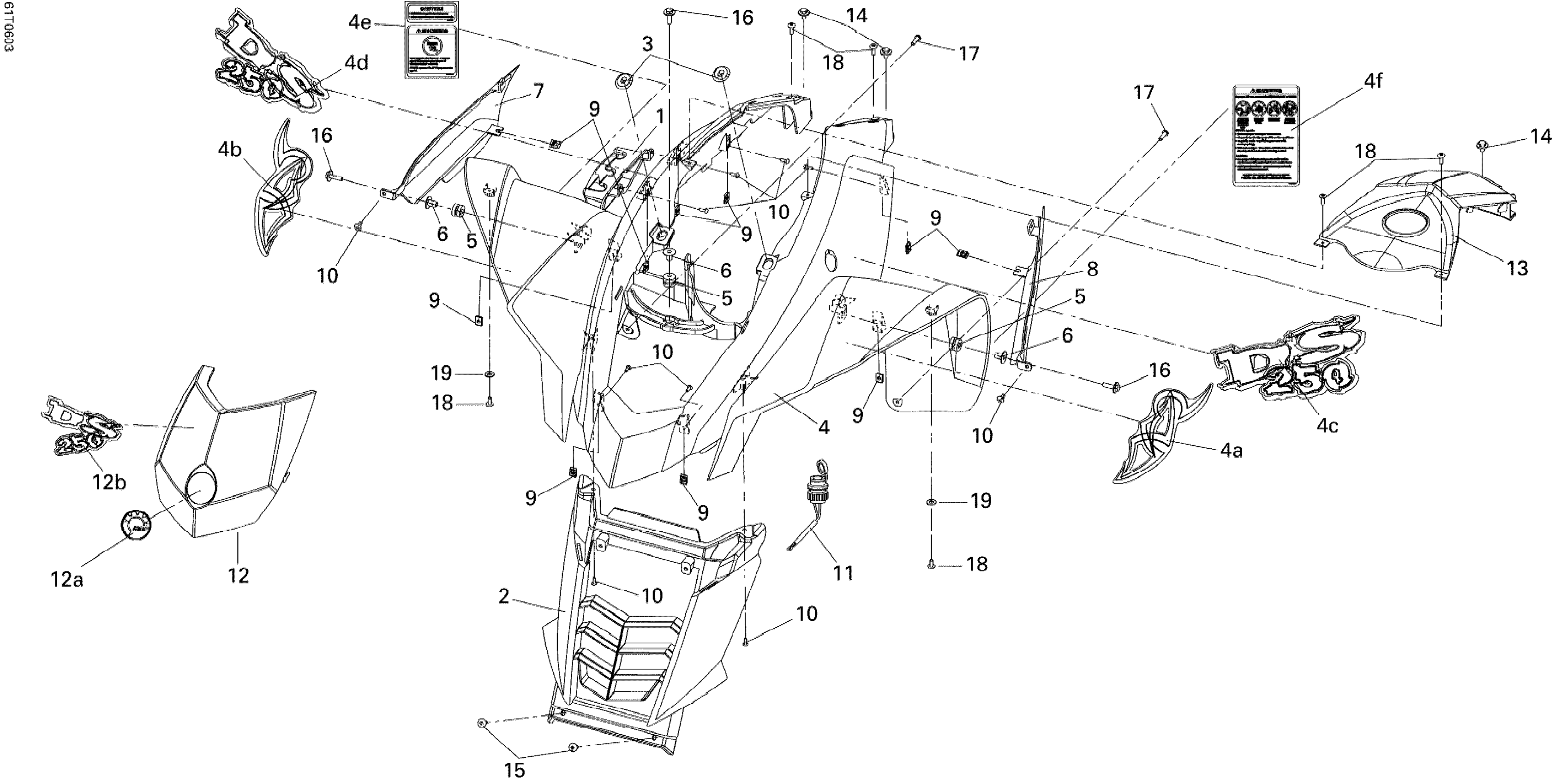

Can-Am DS 250, CE, 2006 Front Fender Diagram

#

Description
Price

1

Shift Lever Cover

S46220RCA000

$6.49

2

Radiator Grille

S50611RCA000

$17.05

3

Grommet

S61105RCA000

$4.29

4

Front Fender Yellow

S6110GRCBK00ZY

$204.99

4a

LH FRONT FENDER DECAL - Call your local BRP dealership

S87134RCA000

Unavailable

4b

RH FRONT FENDER DECAL - Call your local BRP dealership

S87135RCA000

$13.99

4c

LH Front Decal "DS 250"

S87136RCA000

Unavailable

4d

RH FRONT DECAL DS 250 - Call your local BRP dealership

S87137RCA000

Unavailable

4e

Warning Decal, Under 16 Years Old

S8750ARCA000

Unavailable

4f

Warning Decal, Death And Injury

S87501RCA000

Unavailable

5

Rubber Washer

S80103X01000

$4.14

6

Fender Collar

S80104X01000

$4.29

7

Fr.Rh.Side Fender

S83520RCA000JF

$21.99

8

LH Pannel

S83620RCA000JF

$21.99

9

Clip Nut

S90302V02000

$0.53

10

Tapping Screw M4 X 12

S9390332280

$0.42

11

DC Power Outlet, 12 Volts

S38600RA1000

$30.49

12

Radiator Cover

S64305RCA000

$20.49

12a

BRP Logo

S87500RCA000

$36.99

12b

DS250 Decal

S87130RCA000

$12.99

13

Fuel Tank Cover

S43020RCA000

$23.99

14

Washer Bolt

S934040601407

$0.42

15

Special Screw

S90164RCA000

$0.97

16

Washer Bolt

S934040602507

$0.42

17

Tapping Screw

S9390344380

$0.42

18

Taping Screw M5 X 16

S9390345380

$0.90

19

Spring Washer 5 mm

S9411105800

$4.14
