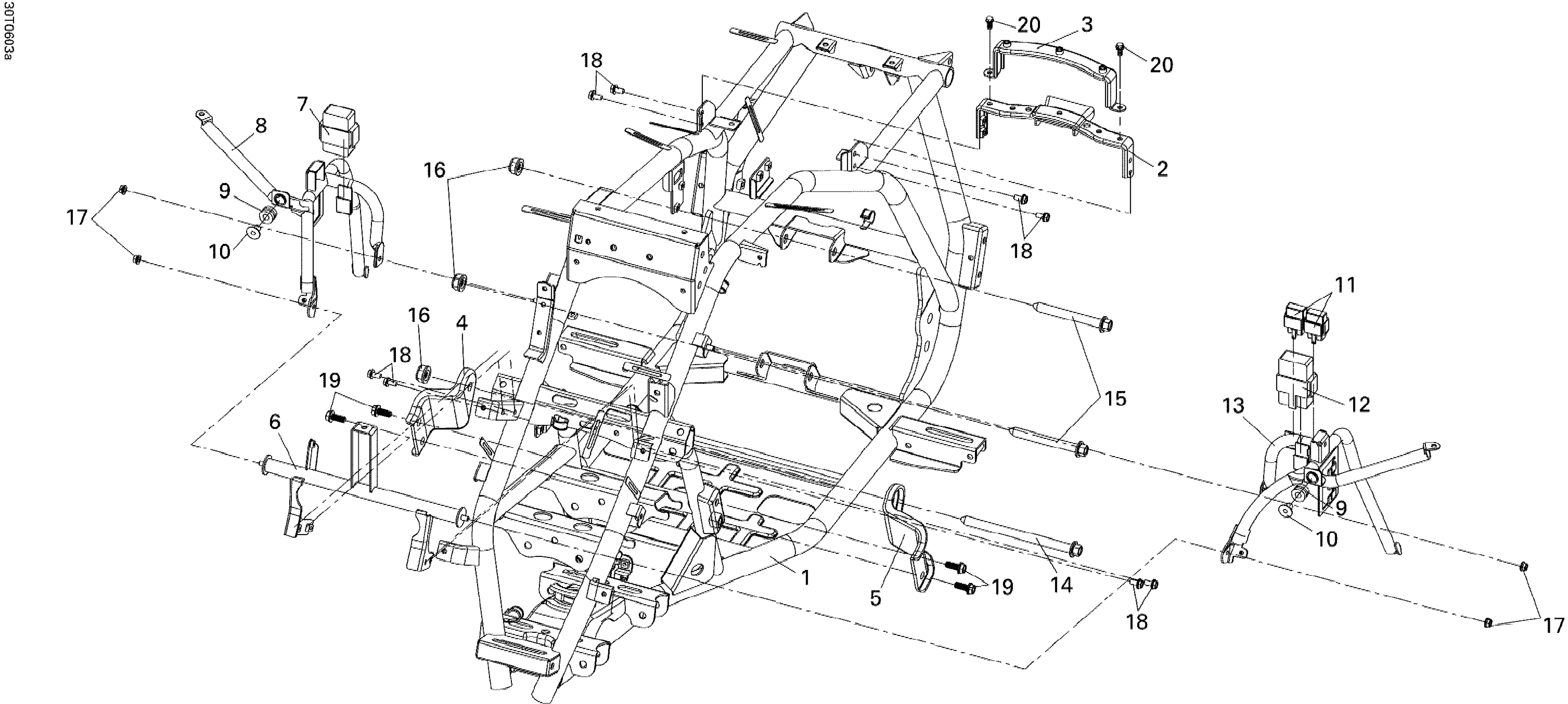

Can-Am DS 250, CE, 2006 09- Frame, System Diagram

#

Description
Price

1

Frame Front

S50100RCA000

Unavailable

2

Tank Cover Bracket

S50171RCA000

Unavailable

3

Tank Bracket

S50172RCA000

Unavailable

4

RH Engine Bracket

S50350RCA000

Unavailable

5

LH Engine Bracket

S50360RCA000

Unavailable

6

Front Fender Support

S50510RCA000

Unavailable

7

SHIFT GEAR CONTROL UNIT - Call your local BRP dealership

S3576ARCA000

Unavailable

8

RH Front Fender Support

S50520RCA000

Unavailable

9

Rubber Washer

S80103X01000

Unavailable

10

Fender Collar

S80104X01000

Unavailable

11

ELEC.RELAY ASSY - Call your local BRP dealership

S3850AHLA000

Unavailable

12

Hazard Control Unit Ass'y

S3872ARB1000

Unavailable

13

LH Front Fender Support

S50522RCA000

Unavailable

14

Bolt M12 X 162

S90101RCA000

Unavailable

15

Bolt M12 X 98

S90102RCA000

Unavailable

16

Self Lock Nut M12

S90306M9Q000

Unavailable

17

Flanged Nut 6 mm

S9405006070

Unavailable

18

Flanged Bolt M6 X 12

S958010601207

Unavailable

19

Flanged Bolt M10 X 16

S958011001607

Unavailable

20

Flanged Bolt M6 X 12

S960010601207

Unavailable
