02- Carburetor

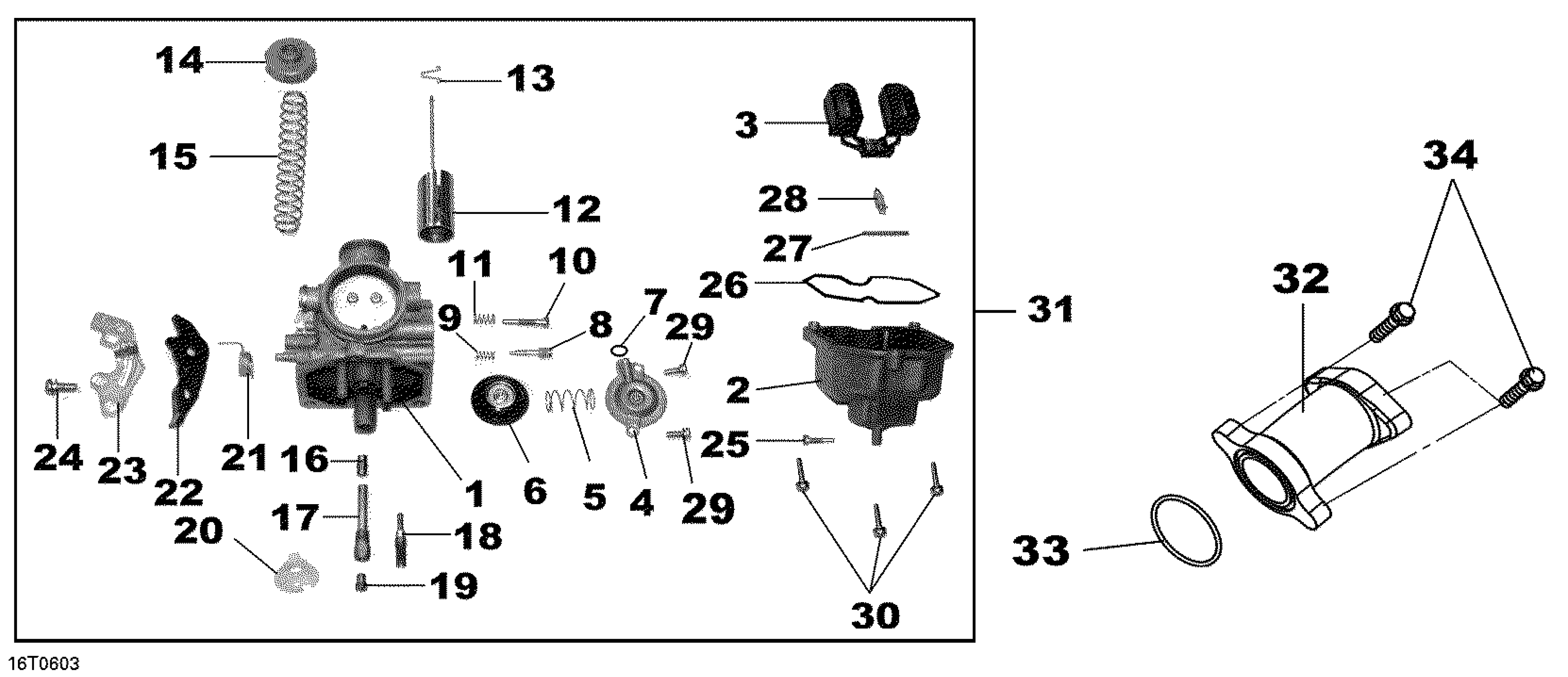

Can-Am DS 250, CE, 2006 02- Carburetor Diagram
#
1
Not Available As Spare Parts
NASP/NDPR
Unavailable
2
Not Available As Spare Parts
NASP/NDPR
Unavailable
3
Not Available As Spare Parts
NASP/NDPR
Unavailable
4
Not Available As Spare Parts
NASP/NDPR
Unavailable
5
Not Available As Spare Parts
NASP/NDPR
Unavailable
6
Diaphragm
S120A106H9900
Unavailable
7
0-ring
SW935330000
Unavailable
8
Screw
S1014240H9900
Unavailable
9
CARBURATOR REPAIR KIT - Call your local BRP dealership
S1300KG8H9010TFB-2
Unavailable
10
Screw
SW957601000
Unavailable
11
Spring
S1300KG8H0010
Unavailable
12
Throttle Valve
SN50272C00
Unavailable
13
Clip
SW957413000
Unavailable
14
Cover
S103J061H9901
Unavailable
15
Spring
S1300185H9920
Unavailable
16
Jet Needle
S101043FH9900
Unavailable
17
Needle Jet Holder
SN41315A00
Unavailable
18
Jet
SD1424KAG0100
Unavailable
19
JET - Call your local BRP dealership
S991013931050
Unavailable
20
Jet Holder
S1012382H0140
Unavailable
21
Spring
S1305491H9901
Unavailable
22
LEVER CHOKE - Call your local BRP dealership
S1113HB7H6710
Unavailable
23
Throttle Cable Support
SD1141A630100
Unavailable
24
Not Available As Spare Parts
NASP/NDPR
Unavailable
25
Drain Screw
S16162KGS9010M1
Unavailable
26
Gasket
S16163KCS9200
Unavailable
27
Pin
SW952525250
Unavailable
28
NEEDLE VALVE - Call your local BRP dealership
S16155ZG8L100
Unavailable
29
Not Available As Spare Parts
NASP/NDPR
Unavailable
30
Not Available As Spare Parts
NASP/NDPR
Unavailable
31
Carburetor Ass'y
S16100RB1000
Unavailable
32
Inner Pipe
S1711ARCA000
Unavailable
33
O-ring
S91308HMA000
Unavailable
34
Flanged Bolt M6 X 22
S960010602500
Unavailable
