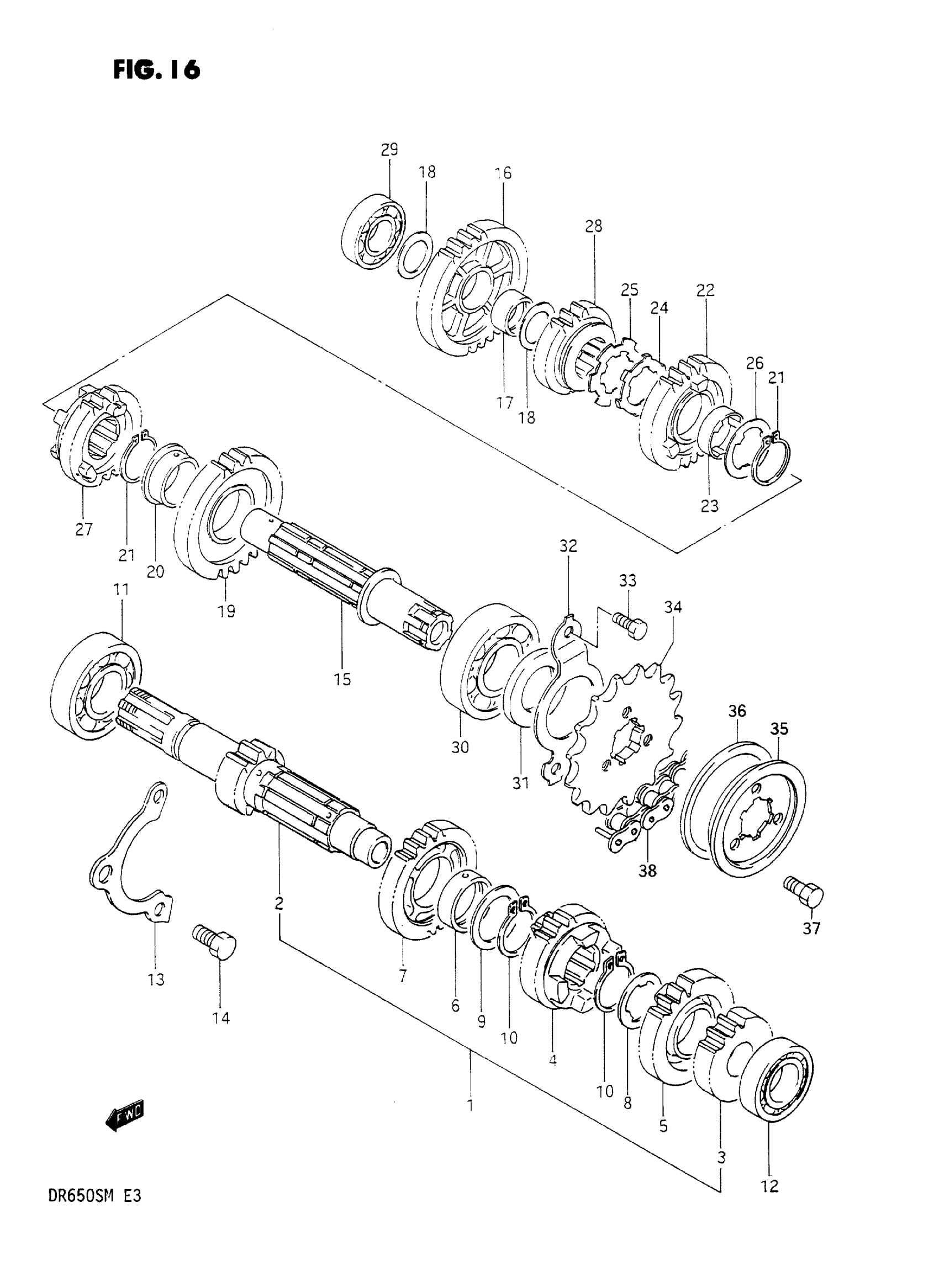

Suzuki DR650SM (1991) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT | Includes Item(s) 2 - 10

24120-12D00

Unavailable

2

COUNTERSHAFT (NT:12)

24121-14A00

Unavailable

3

GEAR, 2ND DRIVE This part replaces 24221-14A00.

24221-14A10

$115.77

4

GEAR, 3RD DRIVE (NT:19) This part replaces 24231-12D00.

24231-12D02

Unavailable

5

GEAR, 4TH DRIVE This part replaces 24241-14A00.

24241-14A10

$115.77

6

BUSH, 4TH DRIVE GEAR This part replaces 09300-25023.

24252-19F00

$17.12

7

GEAR, 5TH DRIVE (NT:23)

24251-14A00

Unavailable

8

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

9

WASHER, 5TH DRIVE This part replaces 08211-25341.

09181-25167

$3.12

10

SNAP RING

09380-25003

$3.04

11

BEARING (22X56X16) This part replaces 09262-22014.

09262-22028

$77.48

12

BEARING (17X40X12) This part replaces 09262-17018.

09262-17027

$35.28

13

RETAINER,CNTR SHAFT BRG

24741-14A00

$9.17

14

PLUG, DRAIN This part replaces 01107-08166.

01500-0816B

$2.50

15

DRIVESHAFT

24131-14A00

Unavailable

16

GEAR, 1ST DRIVEN (NT:29)

24311-14A01

$113.18

17

BUSH

09300-20032

$17.50

18

WASHER

08211-20301

$2.35

19

GEAR, 2ND DRIVEN (NT:26)

24321-14A00

Unavailable

20

BUSH

09301-25002

$18.35

21

SNAP RING

09380-25003

$3.04

22

GEAR, 3RD DRIVEN (NT:24) This part replaces 24331-14A03.

24331-14A05

Unavailable

23

BUSH, 3RD DRIVEN GEAR This part replaces 24332-24500.

24332-24510

$18.67

24

WASHER

09169-25001

$2.70

25

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

26

WASHER

09167-25016

$3.72

27

GEAR, 4TH DRIVEN This part replaces 24341-14A01.

24341-14A10

$96.59

28

GEAR, 5TH DRIVEN This part replaces 24351-14A00.

24351-14A10

$111.52

29

BEARING, RH

09262-20059

$25.60

30

BEARING, LH

09262-25066

Unavailable

31

SEAL,OIL (25X45X5)

09283-25076

$10.19

32

HOLDER, OIL SEAL This part replaces 24751-14A00.

24751-14A01

Unavailable

33

BOLT This part replaces 01107-06126.

01500-0612A

$1.78

34

SPROCKET (NT:16)

27511-14A01

Unavailable

35

PLATE

27512-14A11

Unavailable

36

DAMPER

27517-14A00

Unavailable

37

BOLT

09111-06039

$6.02

38

CHAIN ASSY,DRIV This part replaces 27600-13A60-114.

27600-14A20-114

$158.47
