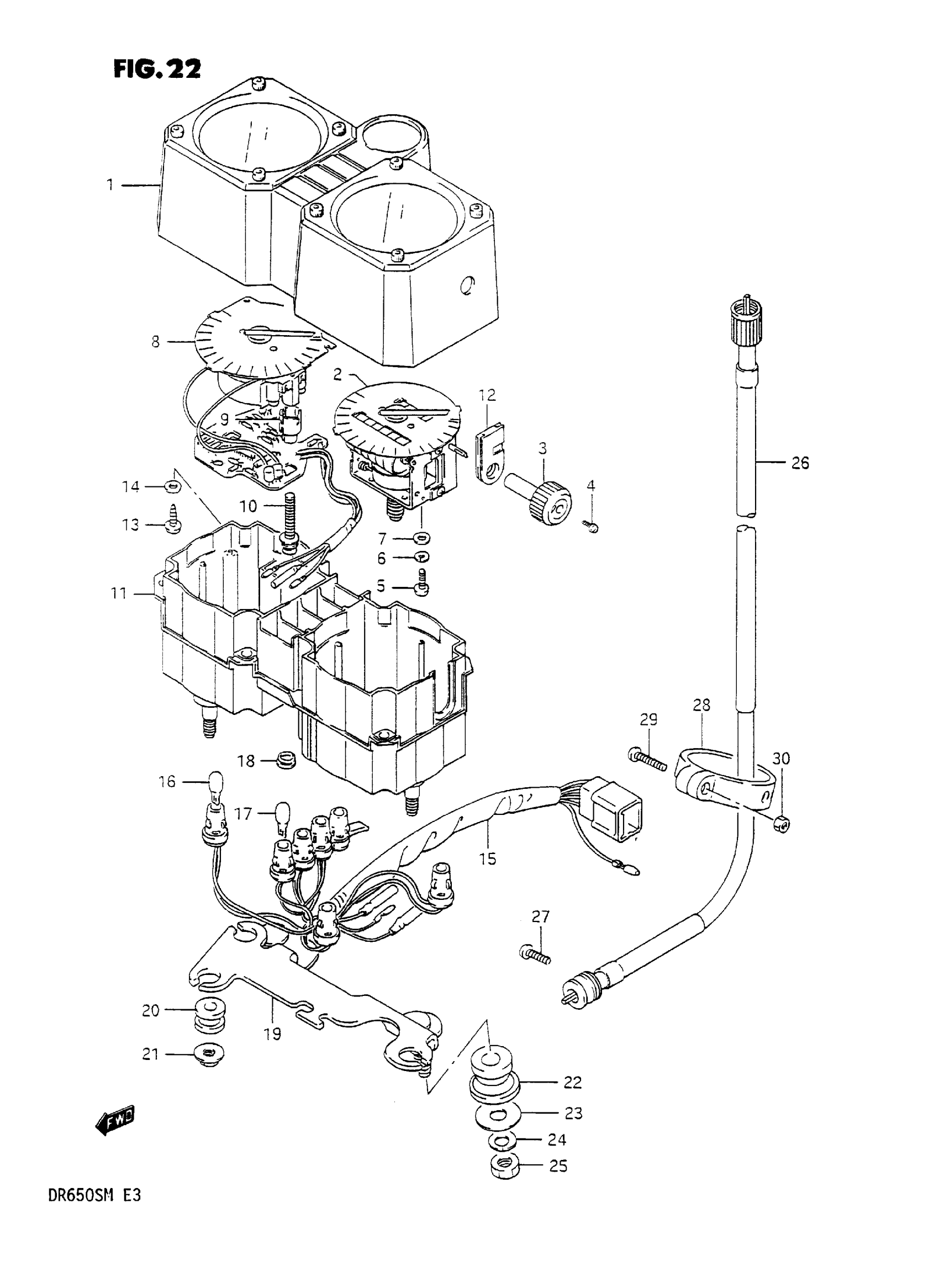

Suzuki DR650SM (1991) SPEEDOMETER Diagram

#

Description
Price

1

HOOD,METER This part replaces 34150-44B30.

34150-14C10

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 34120-14A50.

34120-12D00

Unavailable

3

KNOB, TRIP

34124-44B30

$10.80

4

SCREW, TRIP KNOB This part replaces 34184-14A00.

34184-12D00

$2.93

5

SCREW This part replaces 02112-03106.

02112-0310B

$2.72

6

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.49

7

WASHER This part replaces 08322-21036.

08322-0103B

$2.45

8

TACHOMETER

34220-14A00

Unavailable

9

SPACER

34187-14A00

Unavailable

10

SCREW This part replaces 34283-14A00.

02112-74253

Unavailable

11

CASE, METER This part replaces 34111-14A01.

34111-44B10

Unavailable

12

GROMMET

34196-14A00

Unavailable

13

SCREW This part replaces 03112-05129.

03111-0512A

$1.49

14

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

15

SOCKET

34170-14A00

Unavailable

16

BULB (12V,3W)

09471-12100

$4.13

17

BULB (12V,1.7W)

09471-12085

$5.01

18

CAP

34194-14A00

Unavailable

19

BRACKET ASSY,ME This part replaces 34950-14A00.

34950-14C00

Unavailable

20

.CUSHION

34996-43410

$4.35

21

NUT This part replaces 34185-14A00.

08310-0005A

$1.84

22

CUSHION

34956-31001

$4.37

23

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35

24

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

25

NUT This part replaces 08310-12085.

08310-0008A

$1.84

26

CABLE ASSY,SPEE This part replaces 34910-14A11.

34910-29E21

Unavailable

27

SCREW This part replaces 02112-05168.

02112-05167

$1.97

28

NO DESCRIPTION AVAILABLE | FOR 3UA This part replaces 34938-44B01-30H.

34938-44B01-019

Unavailable

29

SCREW

02112-05257

$1.49

30

NUT This part replaces 08310-11058.

08310-00057

$1.84
