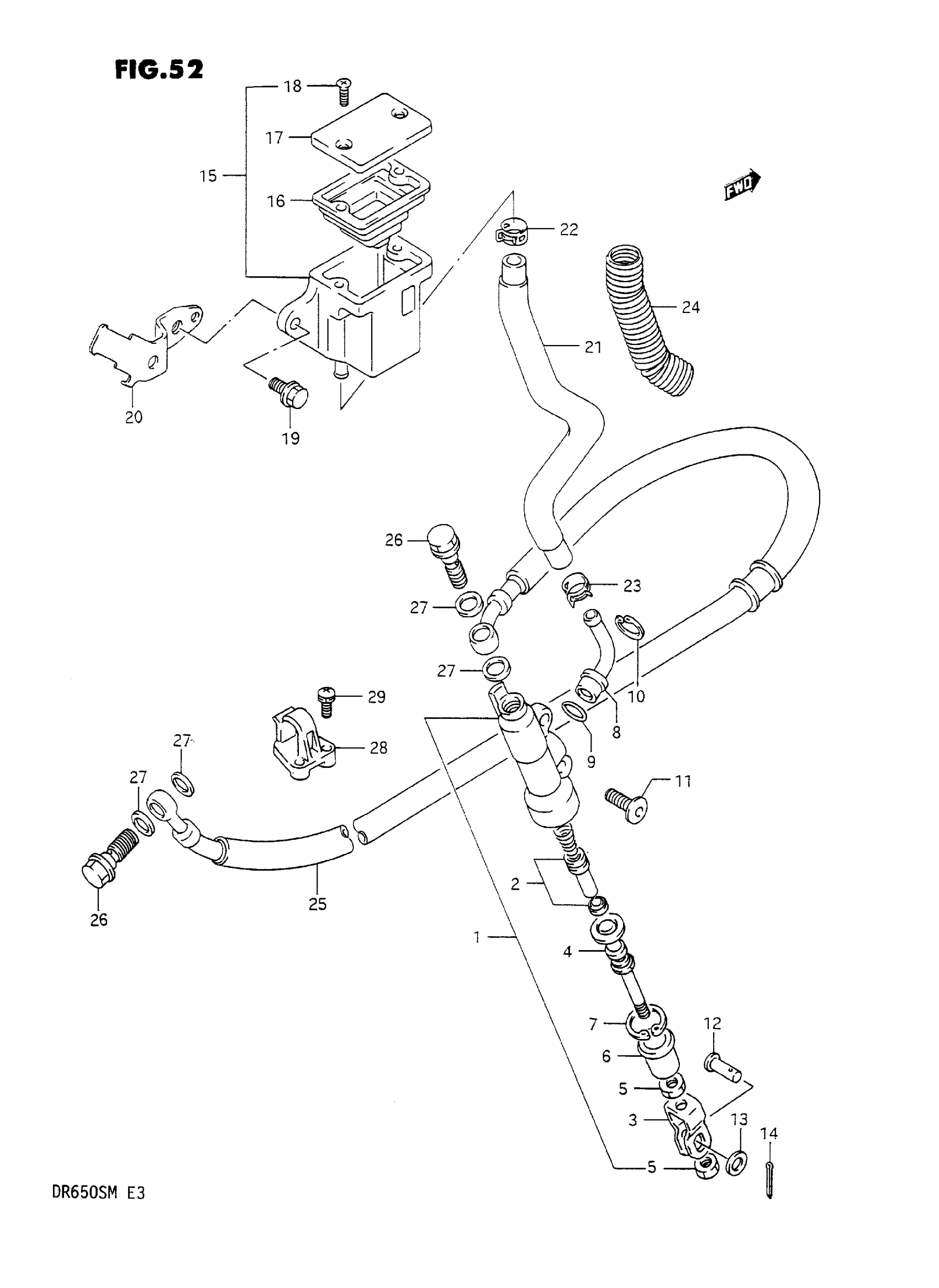

Suzuki DR650SM (1991) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 10

69600-14A51

Unavailable

2

PISTON/CUP SET

69600-34810

$56.48

3

YOKE

69692-27A30

$13.81

4

ROD, PUSH

69670-00B21

$29.25

5

NUT

69693-05A00

$1.96

6

.BOOT

69691-00A00

$5.30

7

CIRCLIP

51162-70040

$3.25

8

CONNECTOR

69672-00B20

$7.01

9

O RING

69686-34200

$2.93

10

CIRCLIP

69674-00B20

$3.97

11

BOLT

09106-06064

$6.02

12

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

13

WASHER This part replaces 08322-21067.

08322-01067

$2.13

14

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

15

TANK ASSY, REAR RESERVOIR | Includes Item(s) 16 - 18 This part replaces 69740-38B20.

69740-38B21

$103.83

16

DIAPHRAGM

59667-04700

$9.78

17

CAP

69669-24A01

$15.10

18

SCREW

69689-04A00

$1.78

19

BOLT This part replaces 01517-06128.

01550-06127

$2.30

20

PLATE, RESERVOIR TANK

69750-12D02

Unavailable

21

HOSE, RESERVOIR TANK

69730-12D00

Unavailable

22

CLAMP, HOSE UPPER

09401-12405

$2.26

23

CLIP This part replaces 09401-12402.

09401-12404

$2.34

24

SHIELD, HOSE This part replaces 69732-12D00.

69732-12D10

Unavailable

25

HOSE COMP, RR B This part replaces 69480-12D00.

69480-12DV0

Unavailable

26

BOLT, UNION

09360-10017

$3.42

27

WASHER (10X15X1.5)

09161-10009

$1.84

28

GUIDE, BRAKE HOSE

61196-03D00

$4.54

29

SCREW, OUTER This part replaces 02112-35168.

02112-35167

$2.63
