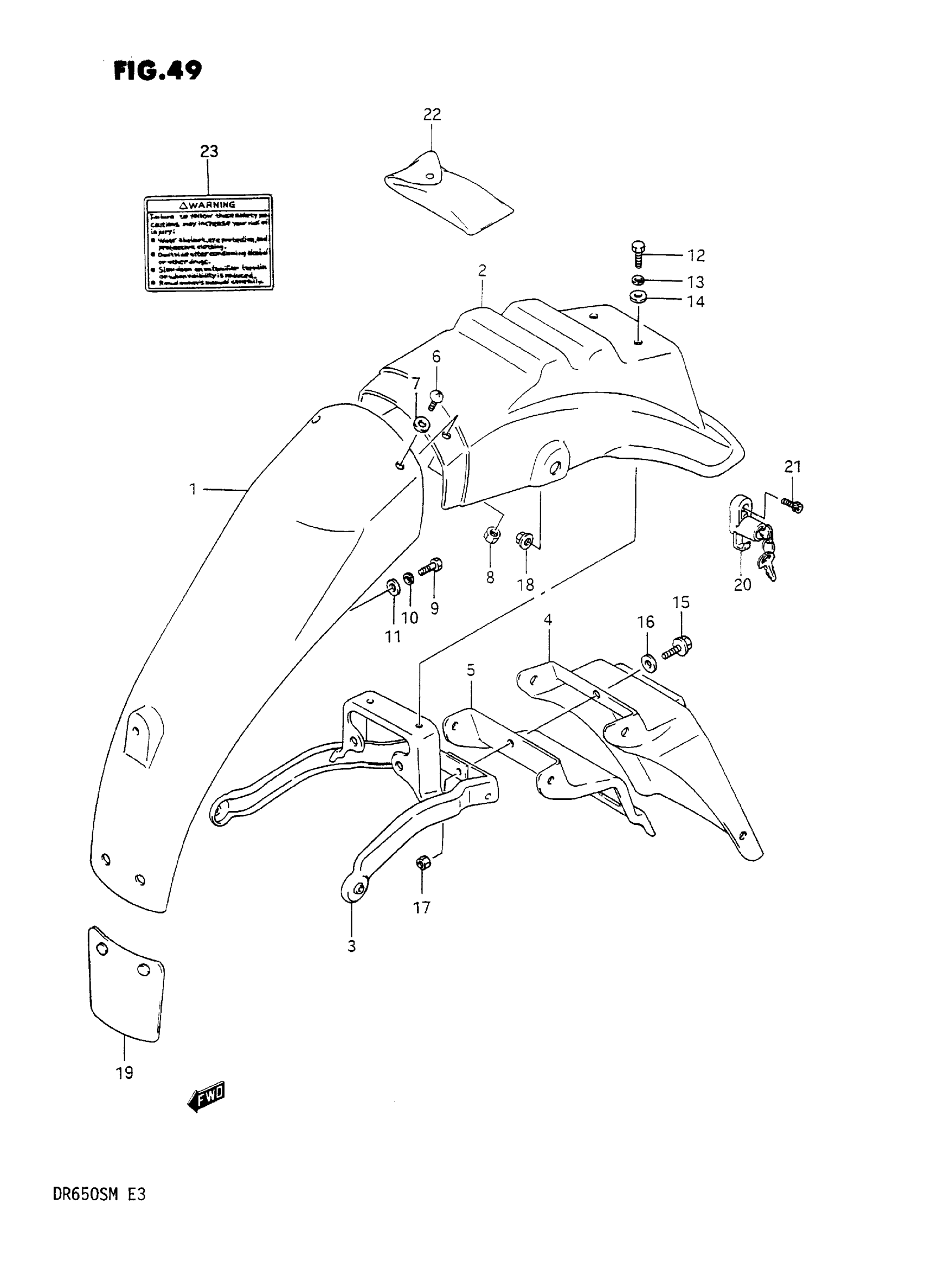

Suzuki DR650SM (1991) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT

63112-14A10

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 63113-14A20-30H.

63113-14A20-13L

Unavailable

3

REINFORCEMENT, FENDER

63120-14A00

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 63311-15A10.

63311-15A20

Unavailable

5

REINFORCEMENT, EXTENSION

63130-15A10

Unavailable

6

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

7

WASHER (5.5X16X1.2) This part replaces 09160-05031.

09160-05037

$1.49

8

.NUT This part replaces 08319-21055.

08319-2105A

$2.19

9

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

10

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

11

WASHER

09169-06026

$2.20

12

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.78

13

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

14

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

15

BOLT, EXTENSION

09116-06152

$2.36

16

WASHER

09169-06026

$2.20

17

NUT This part replaces 08319-31065.

08319-3106A

$2.03

18

NUT This part replaces 08319-31085.

08319-3108A

$2.32

19

MUD GUARD, REAR FENDER

63411-13700

Unavailable

20

LOCK SET, HELMET

95700-31810

Unavailable

21

BOLT This part replaces 07110-06165.

07130-0616B

$2.39

22

TOOL ASSY This part replaces 09800-00242.

09800-21024

Unavailable

23

LABEL,GENERAL W This part replaces 68319-15D00.

68319-33E02

$7.25
