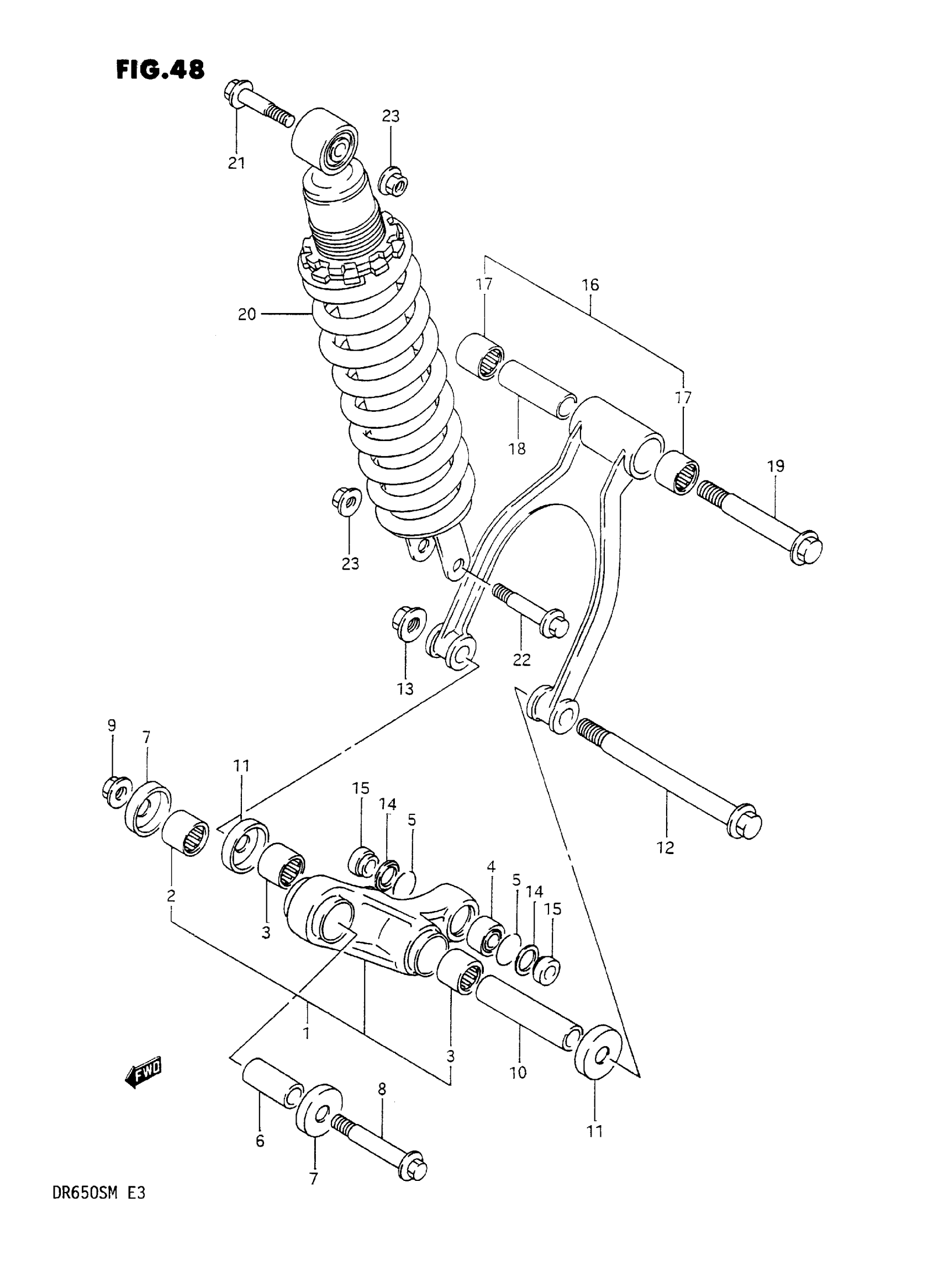

Suzuki DR650SM (1991) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 5 This part replaces 62600-12870.

62600-12871

Unavailable

2

.BEARING (20X27X30) This part replaces 09263-20073.

09263-20121

$17.82

3

BEARING

09263-20071

$25.92

4

BEARING, REAR (10x24x14.5) This part replaces 62175-27C00.

62175-00B00

$61.15

5

RING, STOPPER This part replaces 62277-14200.

62657-34A01

$1.99

6

SPACER, FRONT

62317-44B00

$21.03

7

COVER This part replaces 62624-08D00.

62624-08D01

$8.73

8

BOLT, FRONT

62658-00B20

$11.47

9

NUT This part replaces 08319-31128.

08319-3112A

$3.76

10

SPACER, CENTER

09180-14013

Unavailable

11

SEAL,DUST This part replaces 62624-08D10.

62624-08D11

$9.87

12

BOLT, ROD LOWER

62622-44B00

Unavailable

13

NUT This part replaces 08319-31148.

08319-3114A

$9.66

14

SEAL, DUST, REAR

62226-14520

Unavailable

15

SPACER

62684-14520

Unavailable

16

ROD SET, REAR CUSHION | Includes Item(s) 17 This part replaces 62600-44820.

62600-44821

Unavailable

17

BEARING

09263-20071

$25.92

18

SPACER, ROD

09180-14015

Unavailable

19

BOLT, ROD UPPER

62621-44B00

Unavailable

20

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 62100-14A10-163.

62100-14A11-28W

Unavailable

20

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 62100-14A10-28W.

62100-14A11-28W

Unavailable

21

BOLT, UPPER

09103-10064

$5.52

22

BOLT, LOWER

09103-10213

$5.77

23

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55
