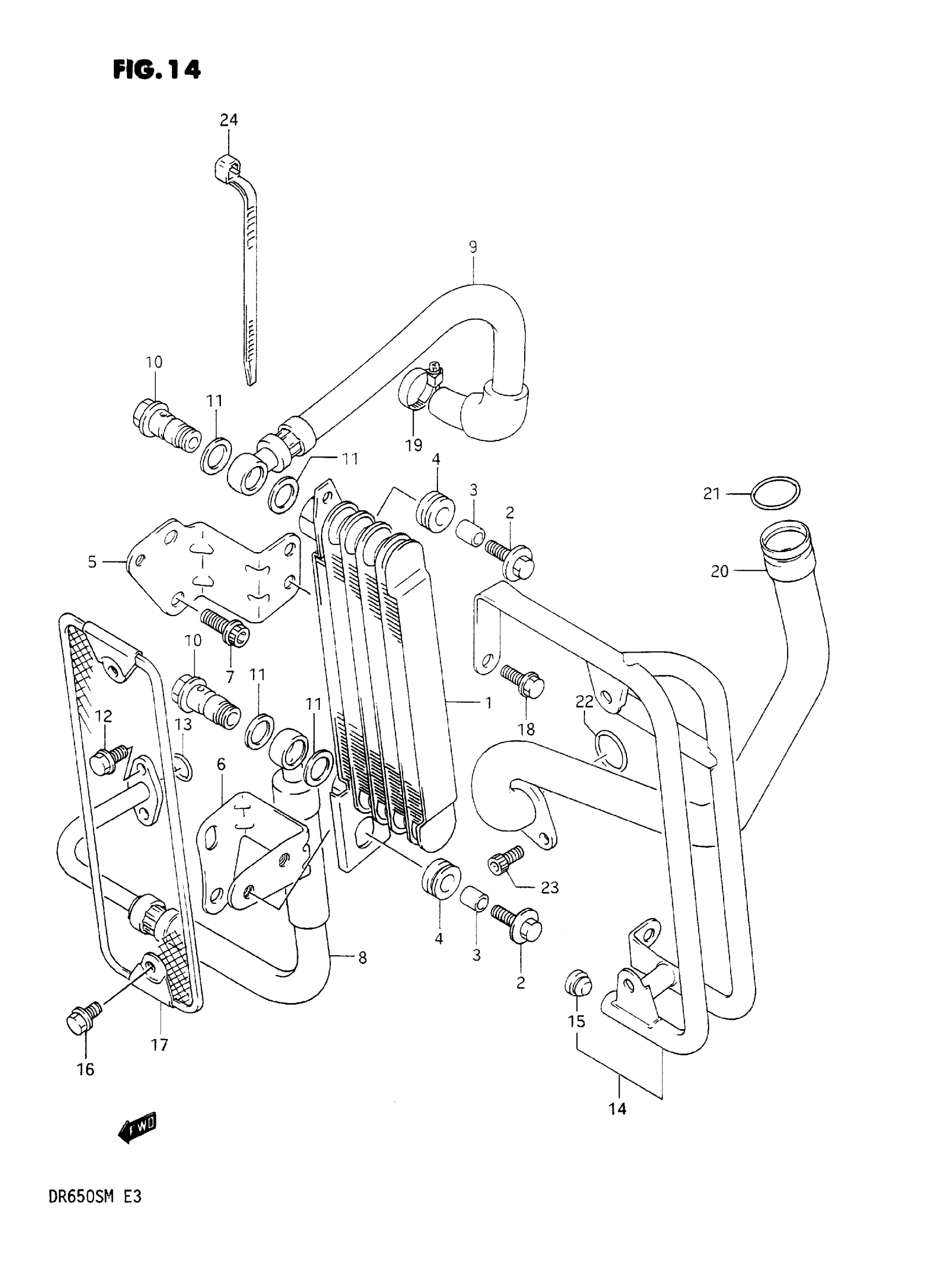

Suzuki DR650SM (1991) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, OIL

16600-14A10

Unavailable

2

BOLT (6X20) This part replaces 09116-06143.

09116-06115

$1.97

3

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

$1.91

4

CUSHION, OIL COOLER

09320-10015

$2.54

5

BRACKET, OIL COOLER UPPER

16620-14A10

Unavailable

6

BRACKET, OIL COOLER LOWER

16630-14A10

Unavailable

7

BOLT This part replaces 07120-08165.

07120-0816A

$3.05

8

HOSE, OIL COOLER NO.1

16460-14A10

Unavailable

9

HOSE, OIL COOLER NO.2

16470-14A10

Unavailable

10

BOLT, UNION (M:12XL:28.5) This part replaces 09360-12004.

09360-12006

$14.73

11

GASKET (14X20X1.5)

09168-14011

$1.85

12

BOLT This part replaces 01547-06165.

01547-0616B

$2.45

13

O RING (D:2.4,ID:12.3)

09280-12008

$2.76

14

GUARD, OIL COOLER | Includes Item(s) 15 This part replaces 16640-14A10.

16640-14A12

Unavailable

15

PLUG, PIPE

09250-09005

Unavailable

16

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

17

BUMPER, OIL COOLER

16650-14A10

Unavailable

18

BOLT

01547-06127

$1.65

19

CLAMP, LOWER This part replaces 09402-15502.

09402-17511

Unavailable

20

PIPE, OIL RETURN

11160-12D01

Unavailable

21

O RING (D:3.7,ID:21.7)

09280-22016

$5.58

22

O RING (D:2.4,ID:23.7) This part replaces 09280-22010.

09280-24010

$5.64

23

BOLT This part replaces 07110-06165.

07130-0616B

$2.39

24

CLAMP

09407-14403

$2.26
