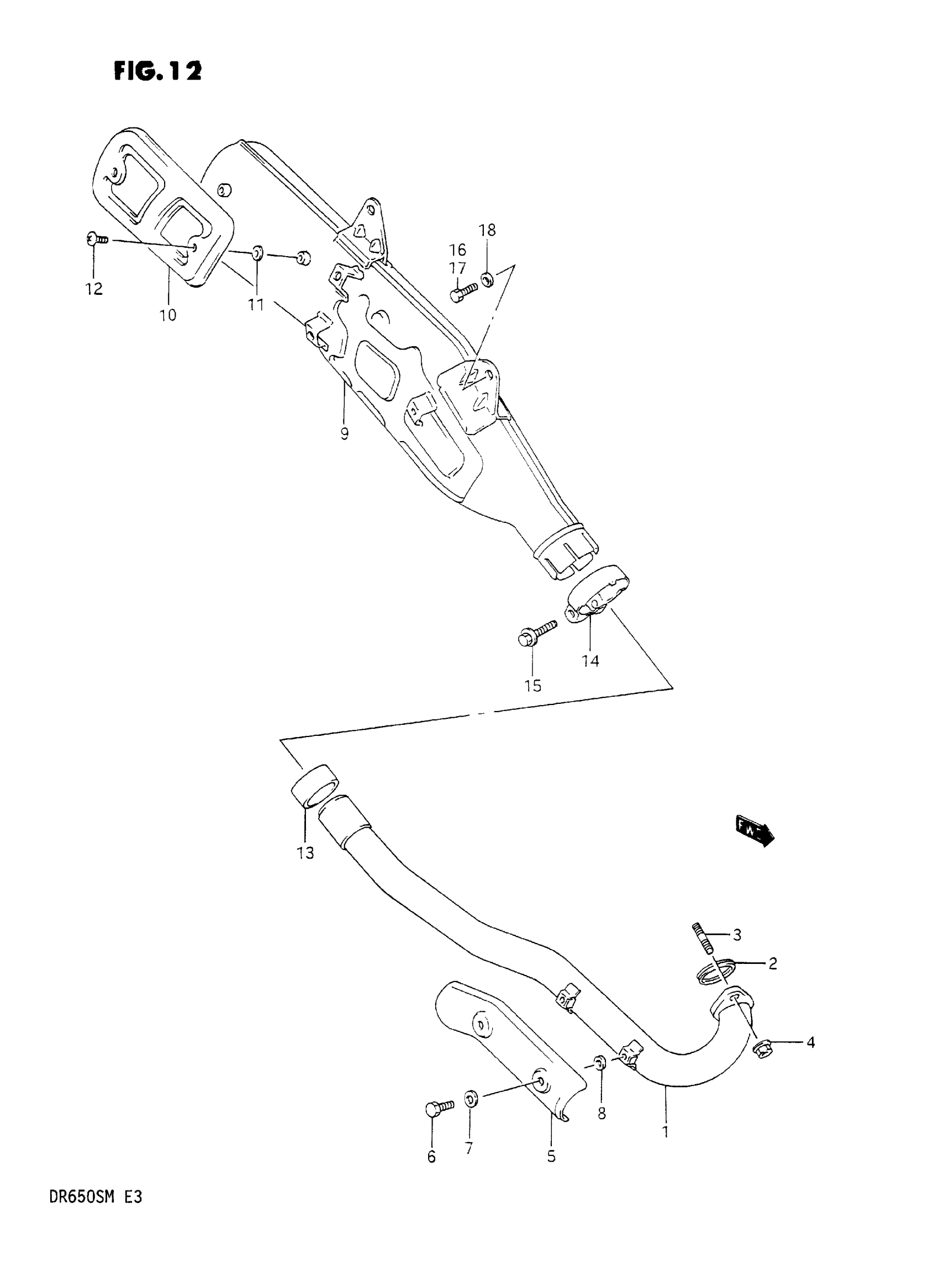

Suzuki DR650SM (1991) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST | MODEL L This part replaces 14150-14A20.

14150-14A22

Unavailable

1

PIPE, EXHAUST | MODEL M This part replaces 14150-14A21.

14150-14A22

Unavailable

2

GASKET, EXHAUST PIPE (NA)

14181-01D00

$7.11

3

BOLT, STUD

09108-08106

$3.35

4

NUT This part replaces 08316-26085.

08316-2008A

$2.70

5

COVER, EXHAUST PIPE

14180-12D00

Unavailable

6

SCREW, MUFFLER COVER This part replaces 09139-06041.

09139-06076

$2.42

7

WASHER (6.5X18X1)

09160-06056

$1.72

8

GASKET (6X16X1.4)

09168-06122

$2.73

9

BODY, MUFFLER

14310-15A20-H01

Unavailable

10

COVER, MUFFLER

14781-14A10

Unavailable

11

GASKET (NA) This part replaces 14181-14A00-H17.

09168-06121

Unavailable

12

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06104.

02142-0610A

$1.49

13

CONNECTOR, MUFFLER | MODEL L This part replaces 14771-44B10.

14771-44B00

$24.43

13

CONNECTOR (NA) | MODEL M

14771-44B00

$24.43

14

CLAMP

14469-05A00

Unavailable

15

BOLT This part replaces 01517-08405.

01550-08407

$3.42

16

BOLT | FR

09106-08107

$2.81

17

BOLT | RR

09106-08106

$2.72

18

WASHER (8.5X19X2.3) This part replaces 09160-08053.

09160-08039

$2.03
