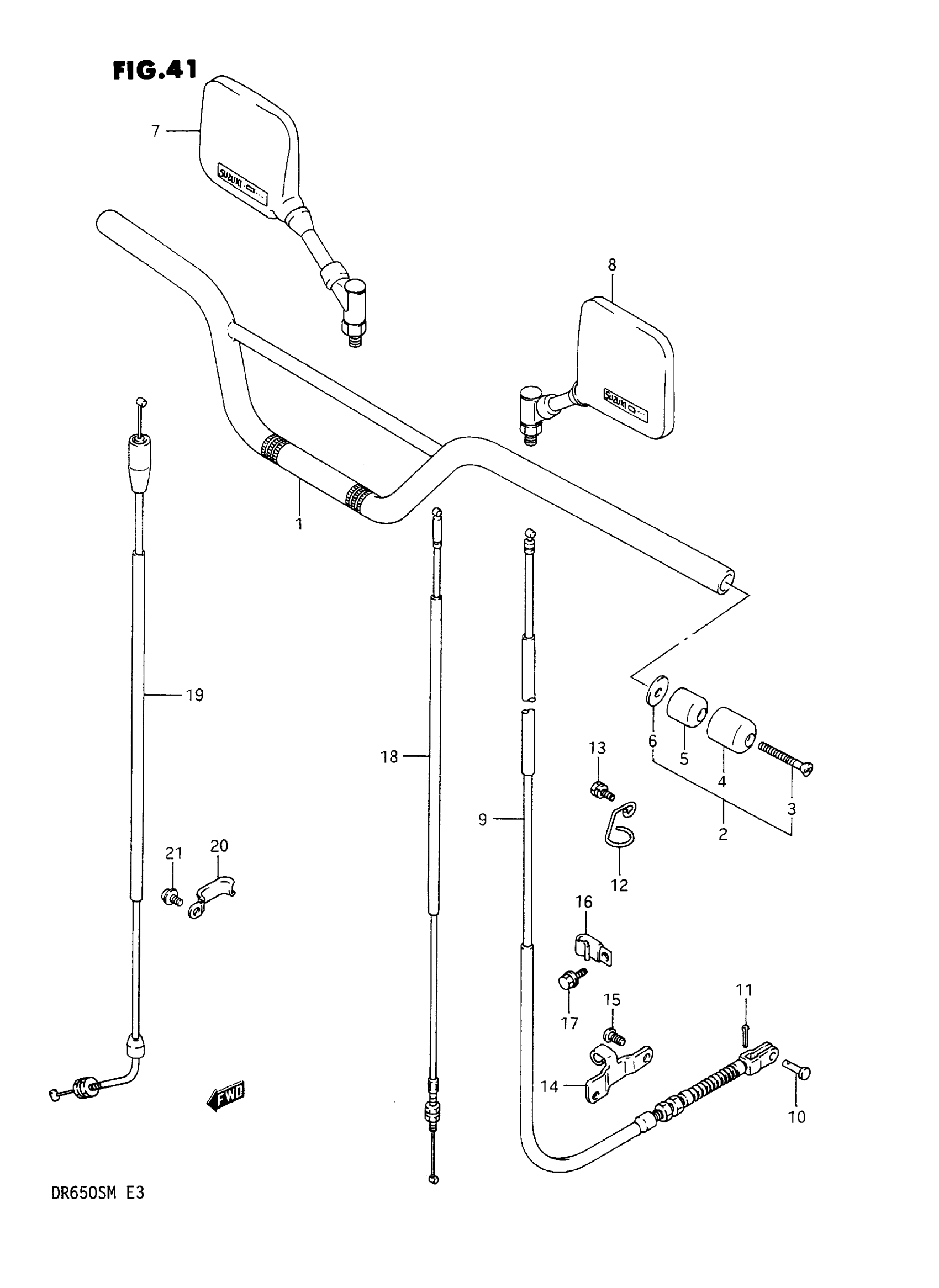

Suzuki DR650SM (1991) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (BLACK) | MODEL L

56110-12D00-291

Unavailable

1

HANDLEBAR (BLACK) | MODEL M

56110-12D10-291

Unavailable

2

BALANCER SET,HA | Includes Item(s) 3 - 6 This part replaces 56200-25810.

56200-02822

$33.95

3

SCREW This part replaces 02132-06455.

02122-0645B

$2.76

4

CAP

56274-04700

Unavailable

5

BALANCER

56271-49410

$30.95

6

SPACER This part replaces 56275-34400.

56275-34401

$4.02

7

MIRROR ASSY RR VIEW R This part replaces 56500-12D00.

56500-06G30

$156.05

8

MIRROR ASSY RR VIEW L This part replaces 56600-12D00.

56600-06G30

$156.05

9

CABLE ASSY, CLUTCH

58200-14A00

$29.43

10

PIN

09200-06004

$2.20

11

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

12

GUIDE, CABLE

58621-17200

Unavailable

13

BOLT This part replaces 01134-06125.

01570-0612A

$2.63

14

STOPPER, CABLE

58634-37410

Unavailable

15

SCREW This part replaces 02112-06125.

02112-0612A

$1.49

16

CLAMP This part replaces 09403-09301.

09404-06037

Unavailable

17

BOLT, CLAMP | MODEL L This part replaces 01114-06125.

01550-0612A

$1.97

17

BOLT, CLAMP | MODEL M This part replaces 01517-06125.

01550-0612A

$1.97

18

CABLE ASSY, DECOMPRESSION

58900-14A00

$25.52

19

CABLE ASSY, THROTTLE

58300-12D00

Unavailable

20

GUIDE, THROTTLE CABLE

09403-07309

Unavailable

21

SCREW This part replaces 02152-06125.

02112-0612A

$1.49
