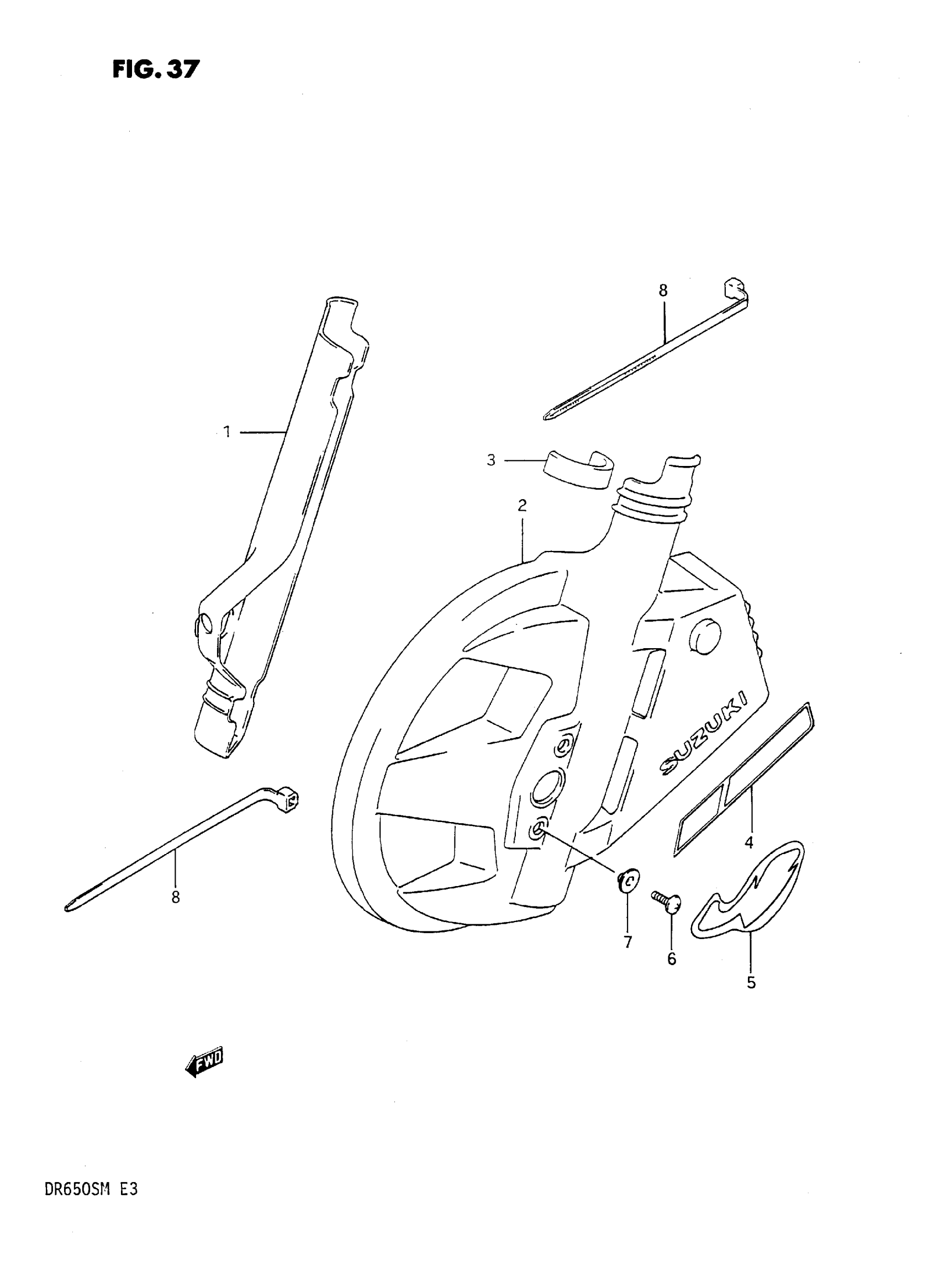

Suzuki DR650SM (1991) FRONT FORK COVER Diagram

#

Description

Price

1

PROTECTOR, FORK RH (WHITE)

51201-44B00-30H

Unavailable

2

PROTECTOR, FORK LH (WHITE)

51202-44B01-30H

Unavailable

3

CUSHION, TANK This part replaces 51204-12D00.

62331-07D00

Unavailable

4

TAPE SET | MODEL L

68250-14A90-B26

Unavailable

5

TAPE SET | MODEL M

68250-15A00-0WF

Unavailable

6

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

7

WASHER

09169-06041

$2.20

8

CLAMP (L:235) This part replaces 09407-25403.

09407-25401

$4.66
