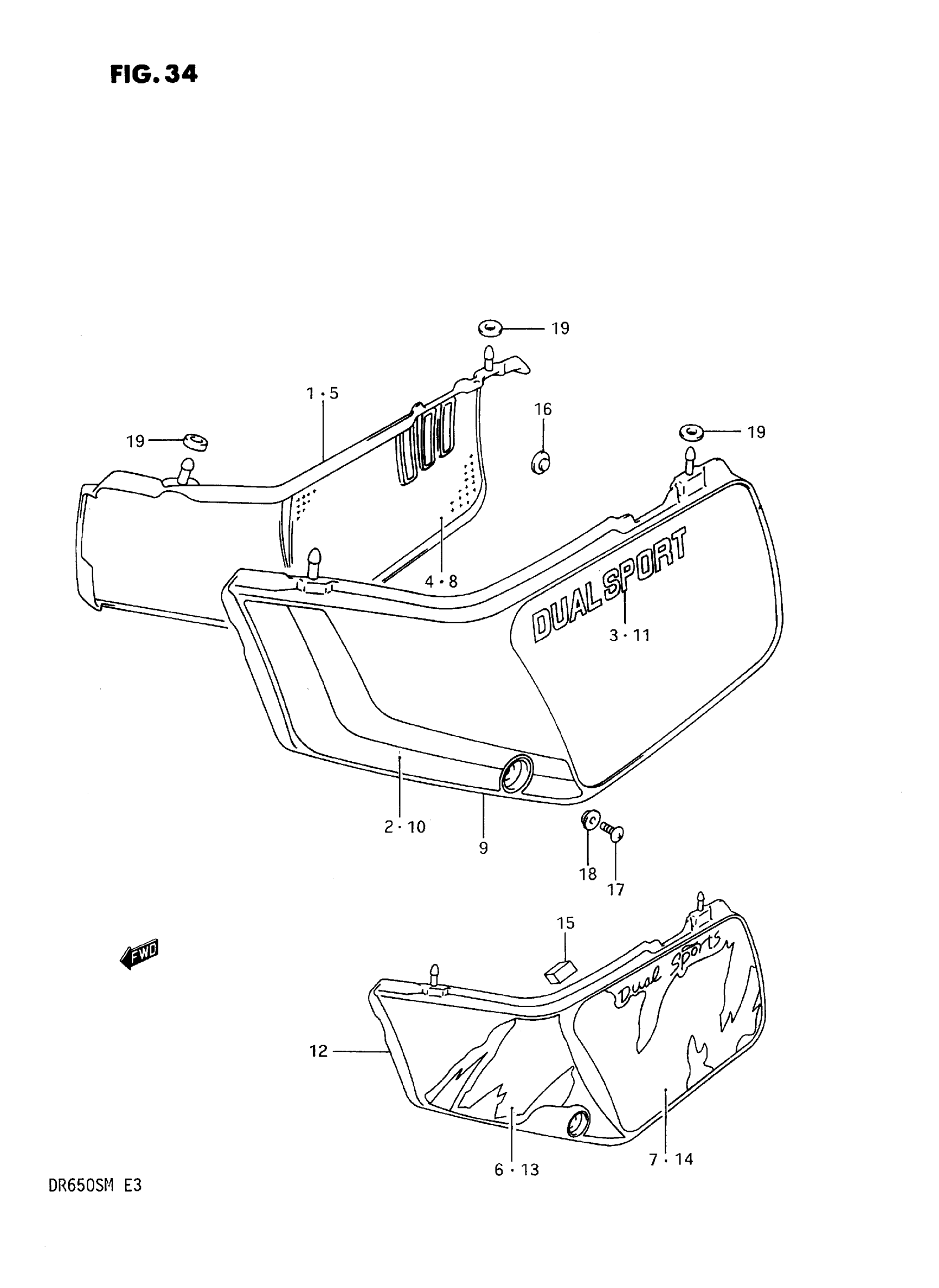

Suzuki DR650SM (1991) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | MODEL L; Includes Item(s) 2 - 4

47110-14C20-30H

Unavailable

2

TAPE, FRONT RH | MODEL L

68135-15A00-B26

Unavailable

3

EMBLEM, REAR RH | MODEL L

68131-14A10-8YM

Unavailable

4

SHIELD, RH

47166-14C00

Unavailable

5

COVER, FRAME RH (WHITE) | MODEL M; Includes Item(s) 6 - 8

47110-14C30-30H

Unavailable

6

TAPE, FRONT RH | MODEL M

68135-15A10-0WF

Unavailable

7

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 68131-14A20-0WE.

68131-14A21-0WE

Unavailable

8

SHIELD, RH

47166-14C00

Unavailable

9

COVER, FRAME LH (WHITE) | MODEL L; Includes Item(s) 10 - 11

47210-14C20-30H

Unavailable

10

TAPE, FRONT LH | MODEL L

68145-15A00-B26

Unavailable

11

EMBLEM, REAR LH | MODEL L

68131-14A10-8YM

Unavailable

12

COVER, FRAME LH (WHITE) | MODEL M; Includes Item(s) 13 - 15

47210-14C30-30H

Unavailable

13

TAPE, FRONT LH | MODEL M

68145-15A10-0WF

Unavailable

14

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 68141-14A20-0WE.

68141-14A21-0WE

Unavailable

15

CUSHION | MODEL M This part replaces 47165-48B10.

47165-48B11

Unavailable

16

CUSHION, MUFFLER

09321-10018

$5.45

17

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

18

WASHER

09169-06041

$2.20

19

CUSHION, BOSS

47161-14A00

$2.08
