Description

Price

1

COIL ASSY,IGNIT This part replaces 33410-12D00.

33410-12D01

Unavailable

2

SCREW This part replaces 02112-16256.

02142-0625A

$1.49

3

CAP, SPARK PLUG INNER

33510-45010

$24.99

4

CAP, SPARK PLUG OUTER

33510-43010

$24.99

5

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

6

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

7

CDI UNIT

32900-12D00

$573.20

8

SCREW (6X16)

09136-06047

Unavailable

9

NUT This part replaces 09159-06017.

08319-31067

$2.03

10

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

11

RECTIFIER ASSY This part replaces 32800-30B01.

32800-33C01

$343.93

12

SCREW This part replaces 02112-36206.

02112-3620A

$2.06

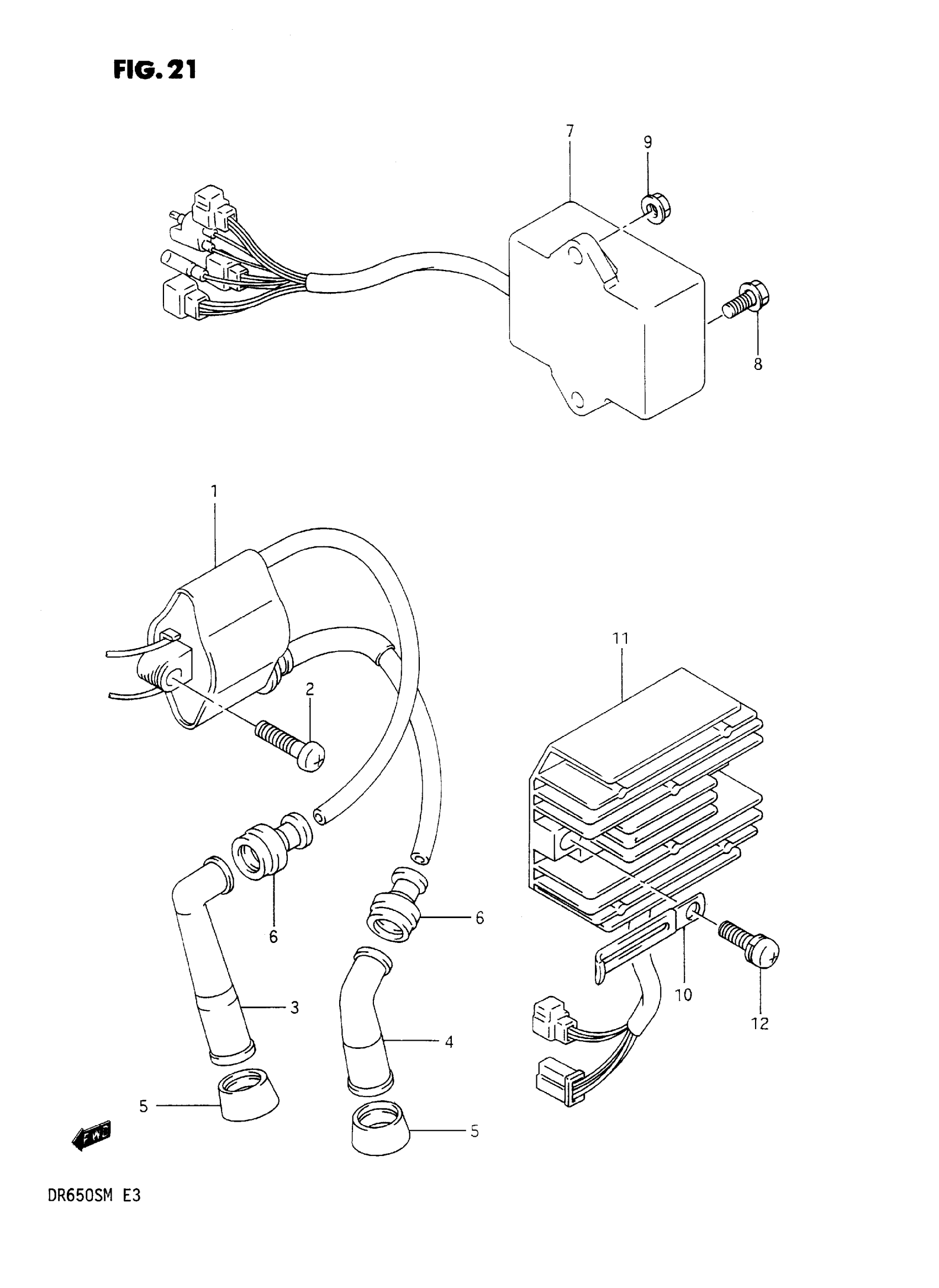

Suzuki DR650SM (1991) ELECTRICAL Diagram
