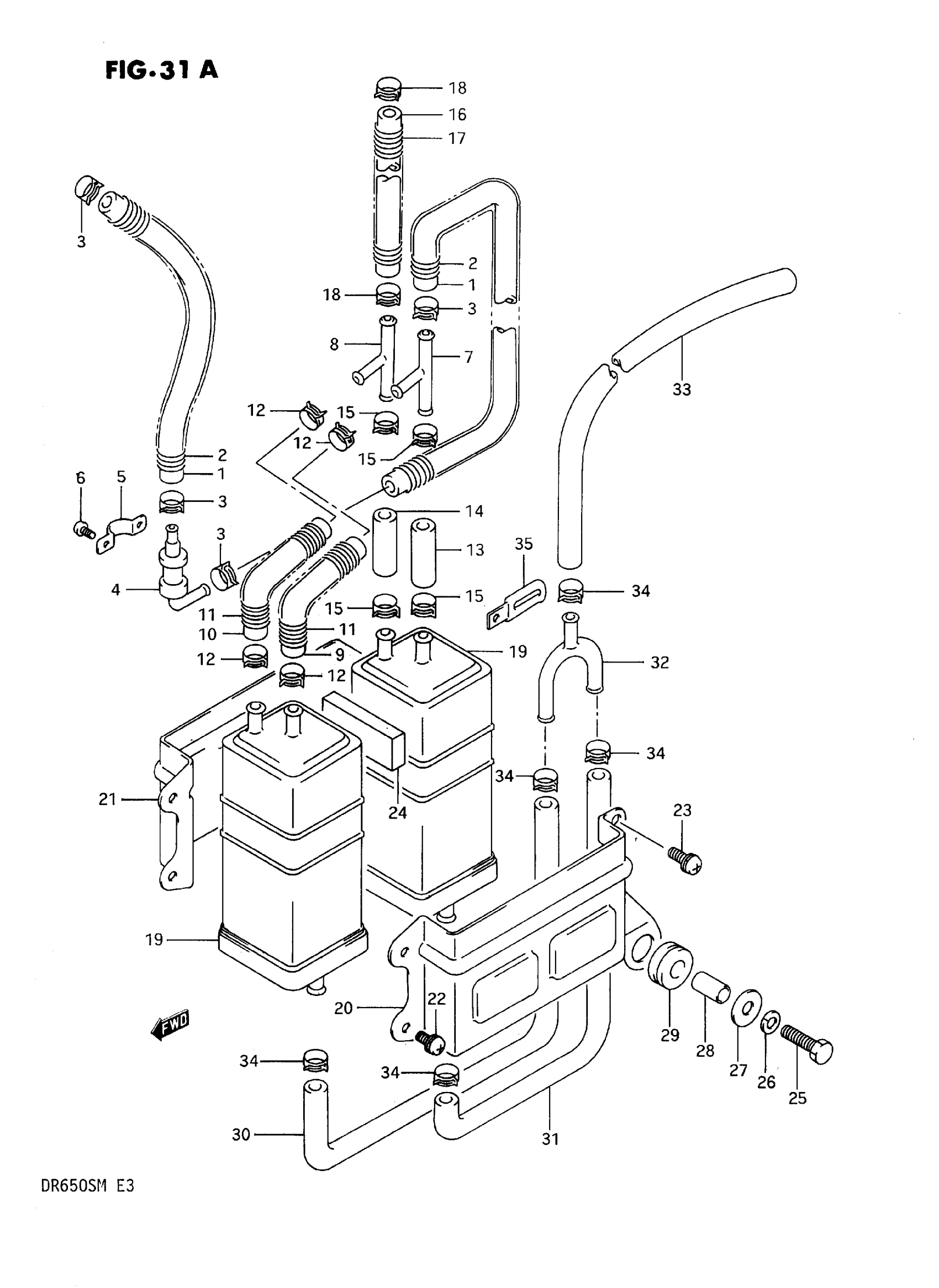

Suzuki DR650SM (1991) CANISTER (FOR CALIFORNIA Diagram

#

Description
Price

1

HOSE, TANK & BREATHER VALVE This part replaces 09358-54116-300.

09355-54115-600

$14.59

2

SPRING

09440-13044

Unavailable

3

CLIP This part replaces 09401-11410.

09401-11413

$2.26

4

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

5

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

6

SCREW This part replaces 02112-04085.

02112-0408A

$1.49

7

PIPE, IN

44950-14A00

Unavailable

8

PIPE, OUT

44940-14A00

Unavailable

9

HOSE, IN LH

09343-05306

Unavailable

10

HOSE, OUT LH

09343-05307

Unavailable

11

SPRING

09440-13036

Unavailable

12

CLIP This part replaces 09401-11410.

09401-11413

$2.26

13

HOSE, TANK & BREATHER VALVE This part replaces 09358-54116-300.

09355-54115-600

$14.59

14

HOSE, TANK & BREATHER VALVE This part replaces 09354-54115-300.

09355-54115-600

$14.59

15

CLIP This part replaces 09401-11410.

09401-11413

$2.26

16

HOSE, TANK & BREATHER VALVE This part replaces 09354-54115-600.

09355-54115-600

$14.59

17

SPRING This part replaces 09440-13037.

09440-13037-XC0

Unavailable

18

CLIP This part replaces 09401-11410.

09401-11413

$2.26

19

CANISTER

17210-14A00

$156.07

20

PLATE, OUTER

44881-14A00

Unavailable

21

PLATE, INNER

44890-14C00

Unavailable

22

SCREW This part replaces 02112-75125.

02112-7512A

$2.42

23

SCREW This part replaces 02112-75165.

02112-7516A

$2.41

24

CUSHION. CENTER

44883-14A00

Unavailable

25

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.78

26

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

27

WASHER

09160-06056

$1.72

28

SPACER

09180-06136

$2.65

29

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

30

HOSE, CANISTER DRAIN FRONT

44884-14C00

Unavailable

31

HOSE, CANISTER DRAIN FRONT This part replaces 44884-14C10.

44884-14C00

Unavailable

32

PIPE, CANISTER DRAIN

44950-14C00

Unavailable

33

HOSE(7X11X600) This part replaces 09352-70113-600.

09352-70119-600

$10.40

34

CLIP This part replaces 09401-11410.

09401-11413

$2.26

35

CLAMP This part replaces 09404-06403.

09404-06039

$1.74
