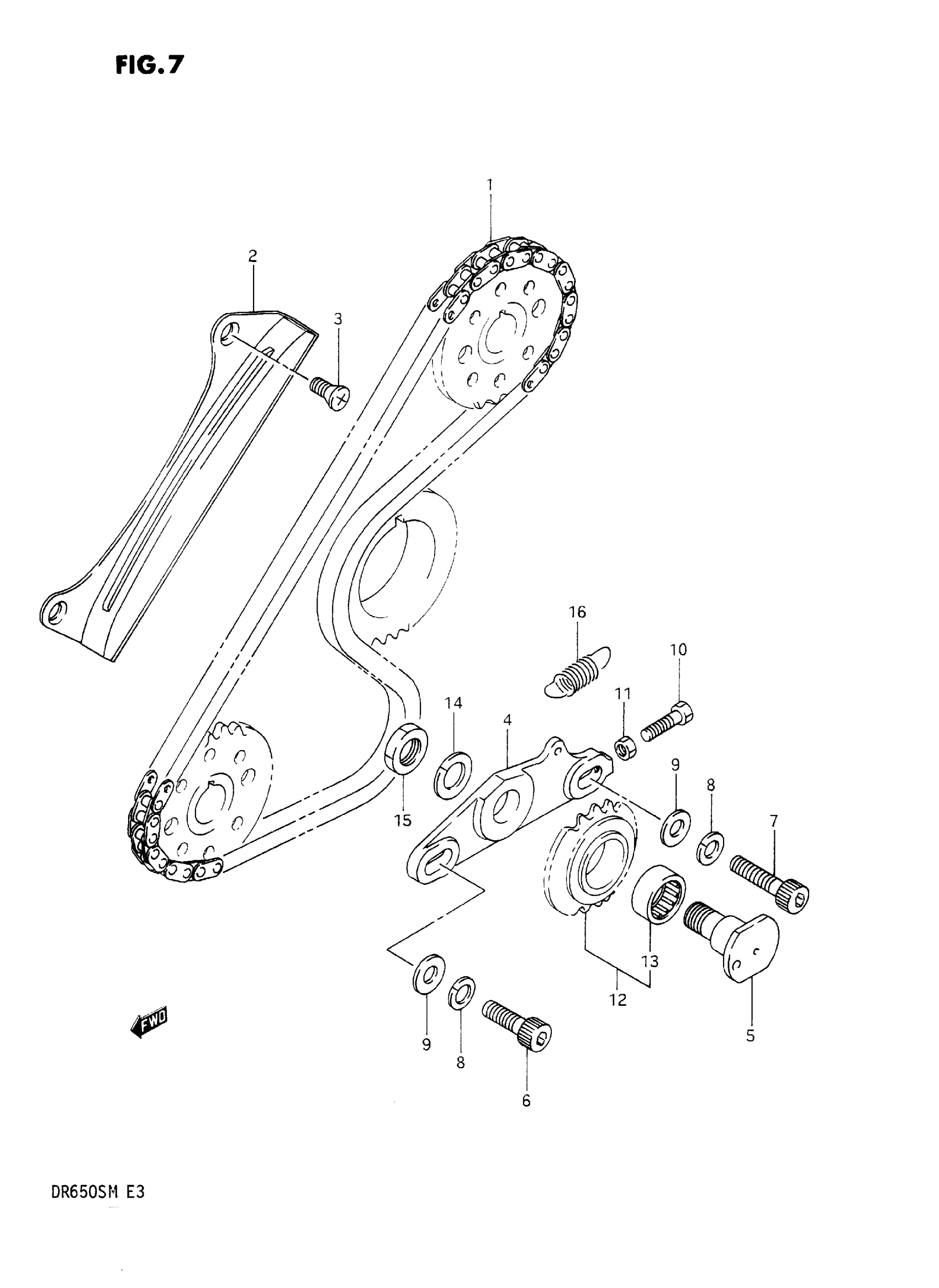

Suzuki DR650SM (1991) BALANCER CHAIN Diagram

#

Description
Price

1

CHAIN, BALANCER This part replaces 12670-37441.

12670-12D00

$134.48

2

GUIDE, CHAIN

12695-12D00

Unavailable

3

SCREW This part replaces 02122-06166.

02122-0616A

$1.49

4

BRACKET, CHAIN TENSIONER

12681-12D00

Unavailable

5

SHAFT, CHAIN TENSIONER

12682-14A01

Unavailable

6

BOLT, FRONT (8X22)

09106-08005

Unavailable

7

BOLT, STEERING DAMPER This part replaces 07110-08305.

07130-0830A

$1.74

8

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

9

WASHER This part replaces 08322-21088.

08322-01087

$2.13

10

BOLT (5X20)

09100-05006

Unavailable

11

NUT This part replaces 08310-22058.

08310-00057

$1.84

12

SPROCKET, TENSIONER (NT:19) | Includes Item(s) 13

12685-44B00

Unavailable

13

BEARING

09263-17007

Unavailable

14

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

15

NUT

09140-12021

Unavailable

16

SPRING

09443-10022

$2.53
