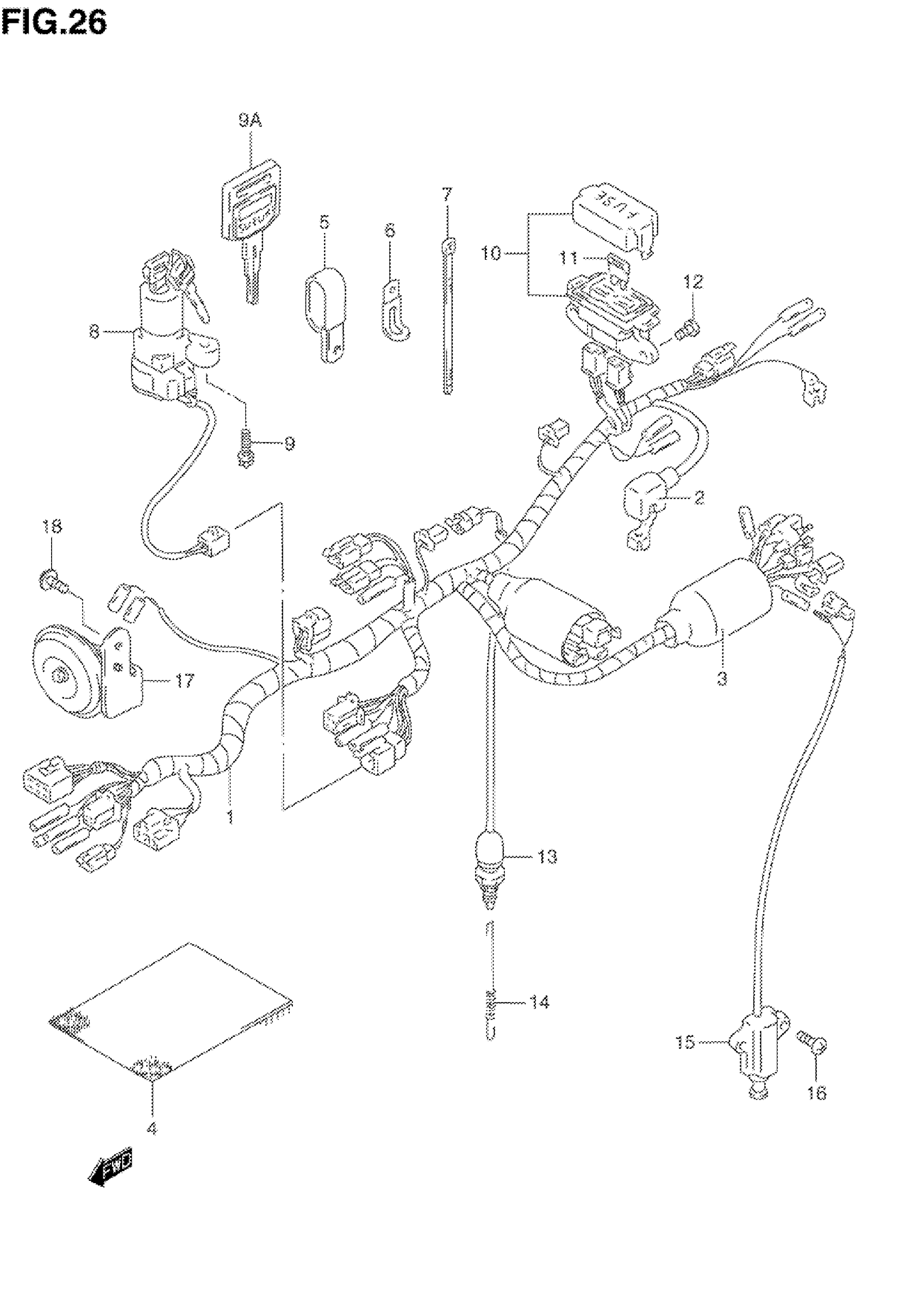

Suzuki DR650SES (1995) WIRING HARNESS (MODEL N/P) Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2 - 3

36610-12E00

Unavailable

2

CAP, BATTERY PLUS This part replaces 33624-44B00.

33624-15D00

Unavailable

3

BOOT

36618-30000

$9.00

4

COVER WIRING HARNESS | MODEL N This part replaces 36618-44B01.

36618-15D21

$18.87

5

CLAMP This part replaces 09403-07315.

09403-04310

$5.35

5

CLAMP

09403-19406

Unavailable

6

CLAMP | MODEL N This part replaces 09404-05402.

09404-06039

$1.74

6

CLAMP (L:60) | MODEL P This part replaces 09404-05401.

09404-06429

$1.83

6

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

6

CLAMP

09404-06607

Unavailable

6

CLAMP This part replaces 09404-08404.

09404-08420

$3.16

6

CLAMP This part replaces 09404-08413.

09404-08420

$3.16

7

CLAMP

09407-10404

$2.90

7

CLAMP

09407-12402

$3.04

7

CLAMP (L:145) This part replaces 09407-14402.

09407-14407

$3.57

7

CLAMP (L:125)

09407-14403

$2.26

7

CLAMP (L:185)

09407-18402

$2.19

7

CLAMP (L:235)

09407-25401

$4.66

7

CLAMP

09407-30401

$5.72

8

LOCK ASSY,STEER This part replaces 37100-12D10.

37100-12D11

Unavailable

8

LOCK ASSY,STEER | CALIFORNIA ONLY This part replaces 37100-12E00.

37100-12D11

Unavailable

9

SCREW

09139-06026

$2.50

9A

KEY, BLANK | OPT

37146-26D10

$49.70

10

FUSE ASSY | Includes Item(s) 11 - 11

36740-12E00

Unavailable

11

FUSE (10A)

09481-10101

$2.07

11

FUSE (20A)

09481-20101

$2.12

12

SCREW This part replaces 02142-06126.

02142-0612A

$1.49

13

SWITCH ASSY, STOP

37740-45D00

$18.27

14

SPRING This part replaces 09443-06079.

09443-06079-XC0

Unavailable

15

SWITCH ASSY,SID This part replaces 37840-44A11.

37840-44X52

$57.00

16

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

17

HORN ASSY This part replaces 38500-14A20.

38500-44B00

$87.70

18

BOLT This part replaces 01137-06125.

01570-0612A

$2.63

19

REFER TO FIG.26A (E-12) FOR

SPECIAL NOTE

Unavailable
