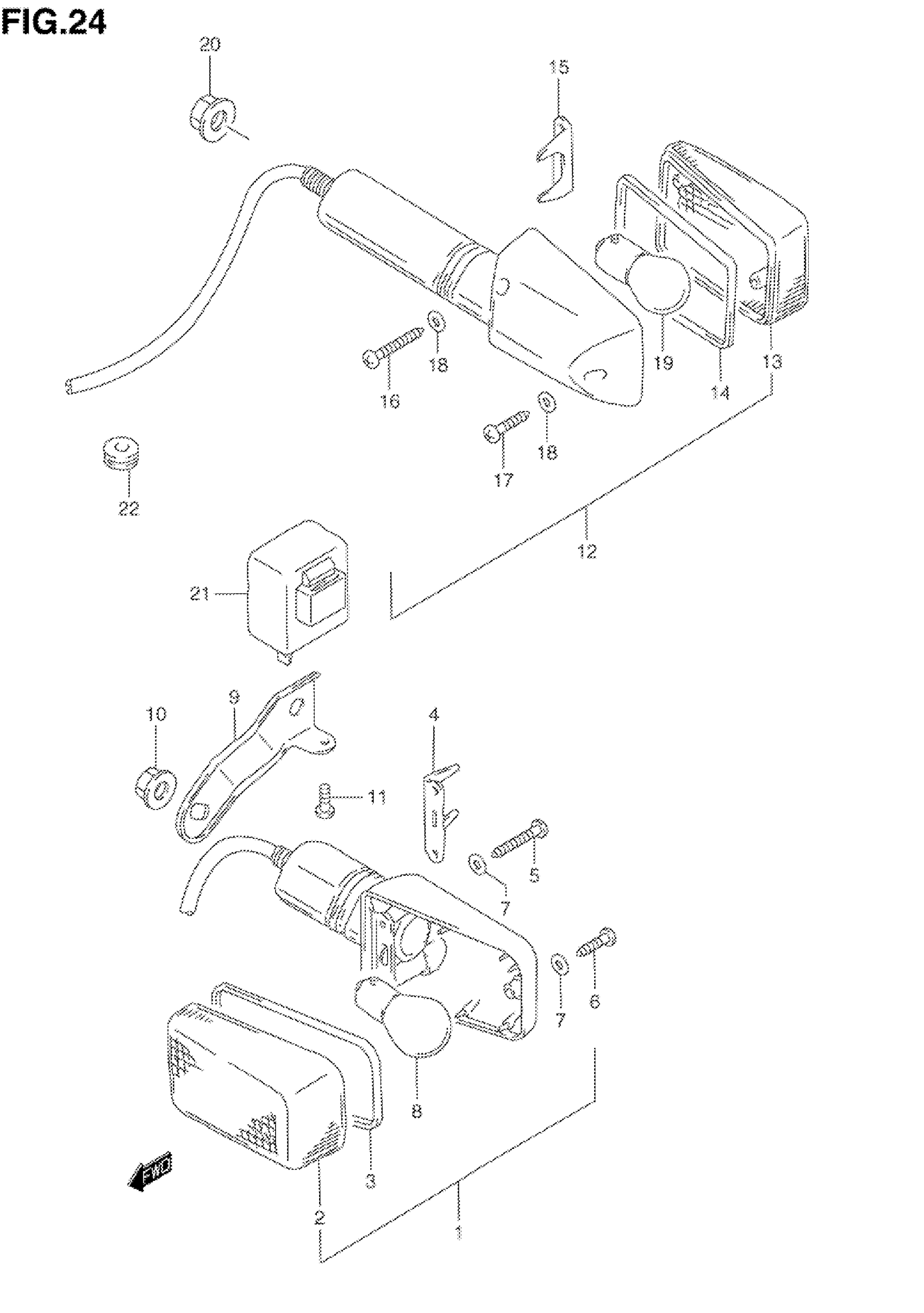

Suzuki DR650SES (1995) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL | MODEL N/P

35601-01D10

Unavailable

1

LAMP ASSY, FRONT TURNSIGNAL | MODEL R/S; Includes Item(s) 2 - 8

35601-29EC0

$110.10

2

LENS

35612-17C20

$10.69

3

GASKET

35613-27A00

$4.52

4

PLATE

35616-27A00

Unavailable

5

TAPPING SCREW

35623-27A00

$1.65

6

TAPPING SCREW

35725-40511

$1.91

7

GASKET

35627-27A02

$1.58

8

BULB (12V,21W)

09471-12045

$3.27

9

BRACKET, FRONT RH

35671-12E00

Unavailable

9

BRACKET, FRONT LH

35681-12E00

Unavailable

10

NUT | MODEL N/P This part replaces 08316-16105.

08316-1010B

$2.66

10

NUT | MODEL R/S This part replaces 08316-10103.

08316-1010B

$2.66

11

SCREW | MODEL N/P This part replaces 02142-05084.

02142-0508A

$1.49

11

SCREW | MODEL R/S This part replaces 02142-05083.

02142-0508A

$1.49

12

LAMP ASSY, REAR TURNSIGNAL | MODEL N/P This part replaces 35603-12E10.

35603-14D10

Unavailable

12

LAMP ASSY, REAR TURN SIGNAL | CALIFORNIA ONLY,MODEL N/P This part replaces 35603-12E00.

35603-14D20

Unavailable

12

LAMP ASSY,REAR TURNSIGNAL | MODEL R/S; Includes Item(s) 13 - 19 This part replaces 35603-29E60.

35603-29E90

$88.10

13

LENS

35652-17C20

$10.28

14

GASKET

35613-27A00

$4.52

15

PLATE

35616-27A00

Unavailable

16

TAPPING SCREW

35623-27A00

$1.65

17

TAPPING SCREW

35725-40511

$1.91

18

GASKET

35627-27A02

$1.58

19

BULB (12V,21W)

09471-12045

$3.27

20

NUT | MODEL N/P This part replaces 08316-16105.

08316-1010B

$2.66

20

NUT | MODEL R/S This part replaces 08316-10103.

08316-1010B

$2.66

21

RELAY, TURN SIGNAL | MODEL N/P This part replaces 38610-45D00.

38610-45D01

$78.73

21

RELAY ASSY, TURNSIGNAL | MODEL R/S

38610-45D01

$78.73

22

CUSHION

09308-05015

$2.17
