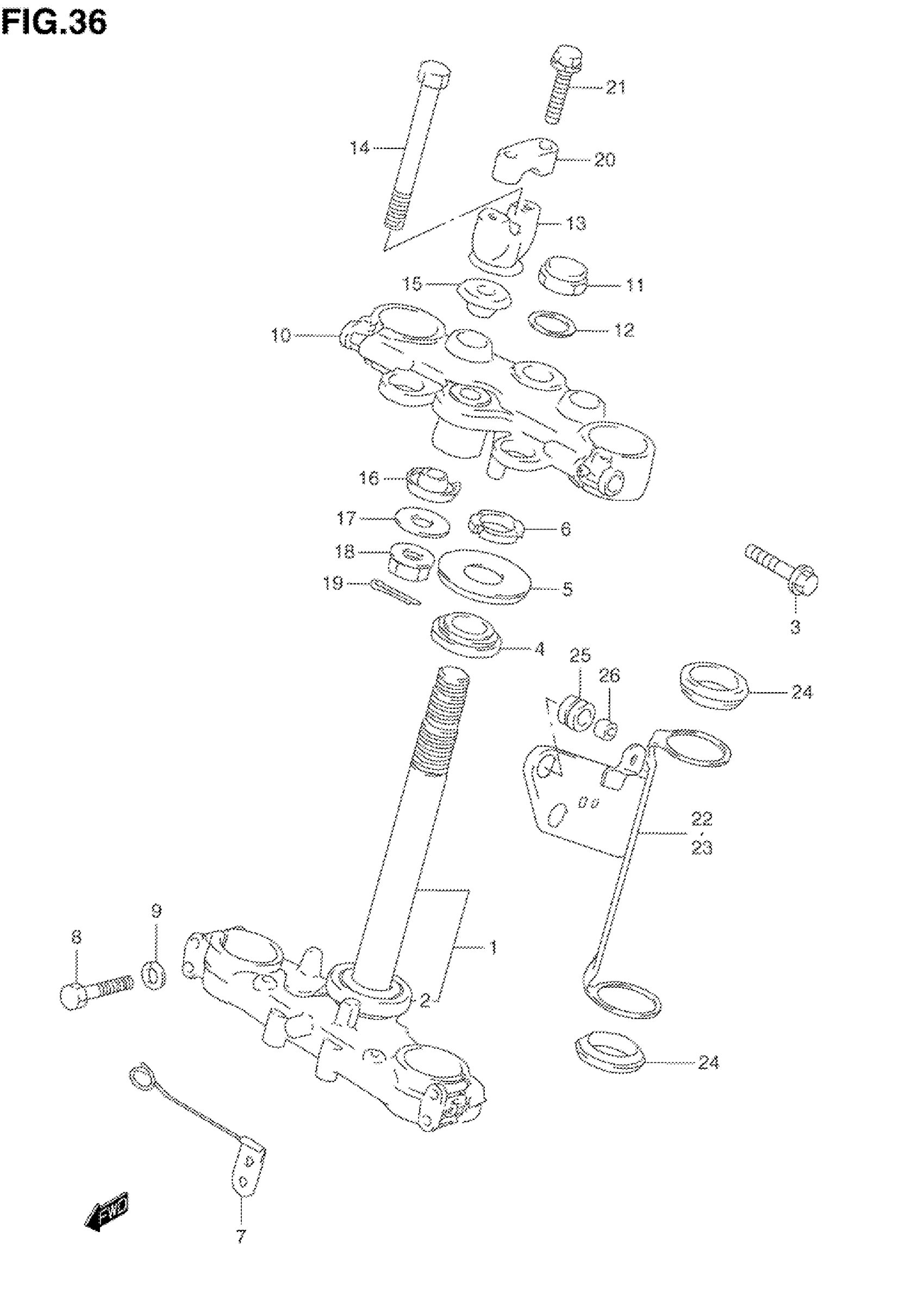

Suzuki DR650SES (1995) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2

51410-12E00

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

BOLT | MODEL N/P This part replaces 01517-10458.

01550-1045B

$4.77

3

BOLT, UPPER | MODEL R This part replaces 01550-10457.

09103-10284

$4.77

3

BOLT | MODEL S

09103-10284

$4.77

4

BEARING, UPPER

09265-25008

Unavailable

5

DUST SEAL

51643-40200

$7.96

6

NUT, STEERING STEM

51631-40200

Unavailable

7

GUIDE, SPEEDOMETER CABLE

34938-44B10

Unavailable

8

BOLT | MODEL N/P This part replaces 01107-08458.

01500-08453

$2.50

8

BOLT, LOWER BRACKET | MODEL R/S

01570-08457

Unavailable

9

.LOCK WASHER | MODEL N/P This part replaces 08321-31087.

08321-01087

$2.13

9

.LOCK WASHER | MODEL R/S

08321-01087

$2.13

10

BRACKET, UPPER

51311-12E00

Unavailable

11

NUT

51353-24B00

$30.67

12

WASHER

51356-24B01

$5.38

13

HOLDER, HANDLE

56221-12E00

Unavailable

14

BOLT | MODEL N/P/R This part replaces 51321-14200.

56321-28C00

$8.28

14

BOLT | MODEL S

56321-28C00

$8.28

15

DAMPER RUBBER, UPPER

56241-14200

$44.53

16

DAMPER RUBBER, LOWER

56242-14200

$36.08

17

WASHER This part replaces 51356-40400.

09160-10035

$1.78

18

NUT

08319-31107

$2.73

19

PIN This part replaces 04111-20308.

04111-2030A

$1.50

20

HOLDER, HANDLE UPPER

56211-12E00

Unavailable

21

BOLT | MODEL N/P This part replaces 01147-08358.

01570-0835A

$3.16

21

BOLT | MODEL R/S This part replaces 01570-08357.

01570-0835A

$3.16

22

COVER, FORK RH

51530-12E00

Unavailable

23

COVER, FORK LH

51540-12E00

Unavailable

24

DAMPER,HEADLAMP | MODEL N/P This part replaces 51553-14A20.

51553-38C01

$8.73

24

DAMPER,HEADLAMP | MODEL R/S This part replaces 51553-38C00.

51553-38C01

$8.73

25

CUSHION | MODEL R/S

09320-09018

$2.44

26

SPACER (6.5X10X10) | MODEL R/S This part replaces 09180-06030.

09180-06310

$1.91
