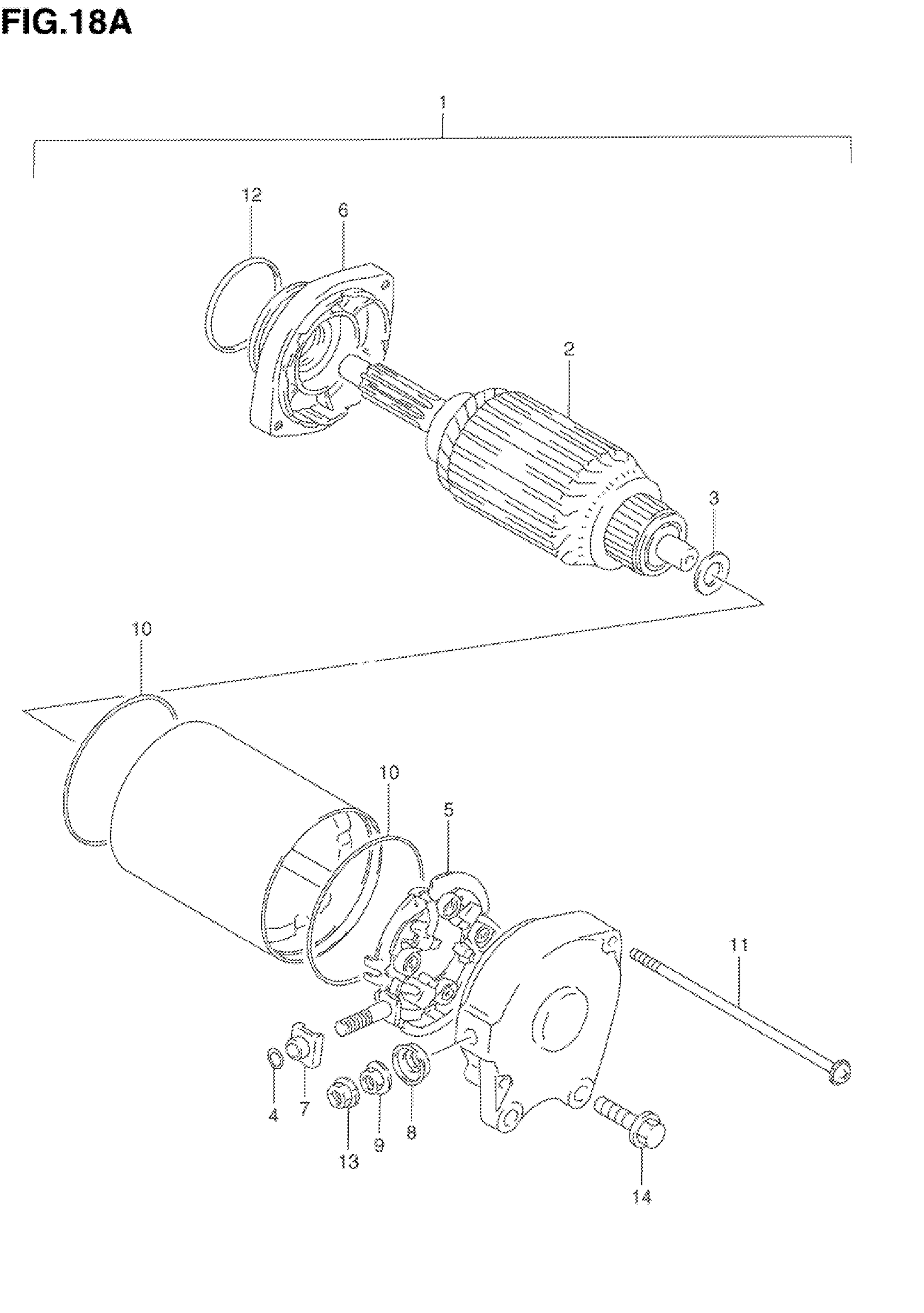

Suzuki DR650SES (1995) STARTING MOTOR (MODEL R/S) Diagram

#

Description

Price

1

MOTOR ASSY, STARTING (YELLOW) | Includes Item(s) 2 - 12

31100-12D01

Unavailable

2

ARMATURE

31310-12D00

Unavailable

3

.SHIM SET This part replaces 31361-47010.

31170-43400

Unavailable

4

O RING

31143-38300

$5.10

5

BRUSH HOLDER SET (-)

31132-45C00

$71.38

6

BRACKET SET

31150-44B00

Unavailable

7

BUSHING

31172-38300

$6.55

8

BUSHING

31173-88C00

Unavailable

9

.NUT

08310-00067

$2.13

10

O RING

31264-44110

$11.87

11

SCREW

31281-31D00

$8.65

12

O RING (D:2.1,ID:34.7) This part replaces 31156-24B00.

09280-35005

$9.05

13

NUT This part replaces 08361-35066.

08361-3506A

$1.80

14

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45
