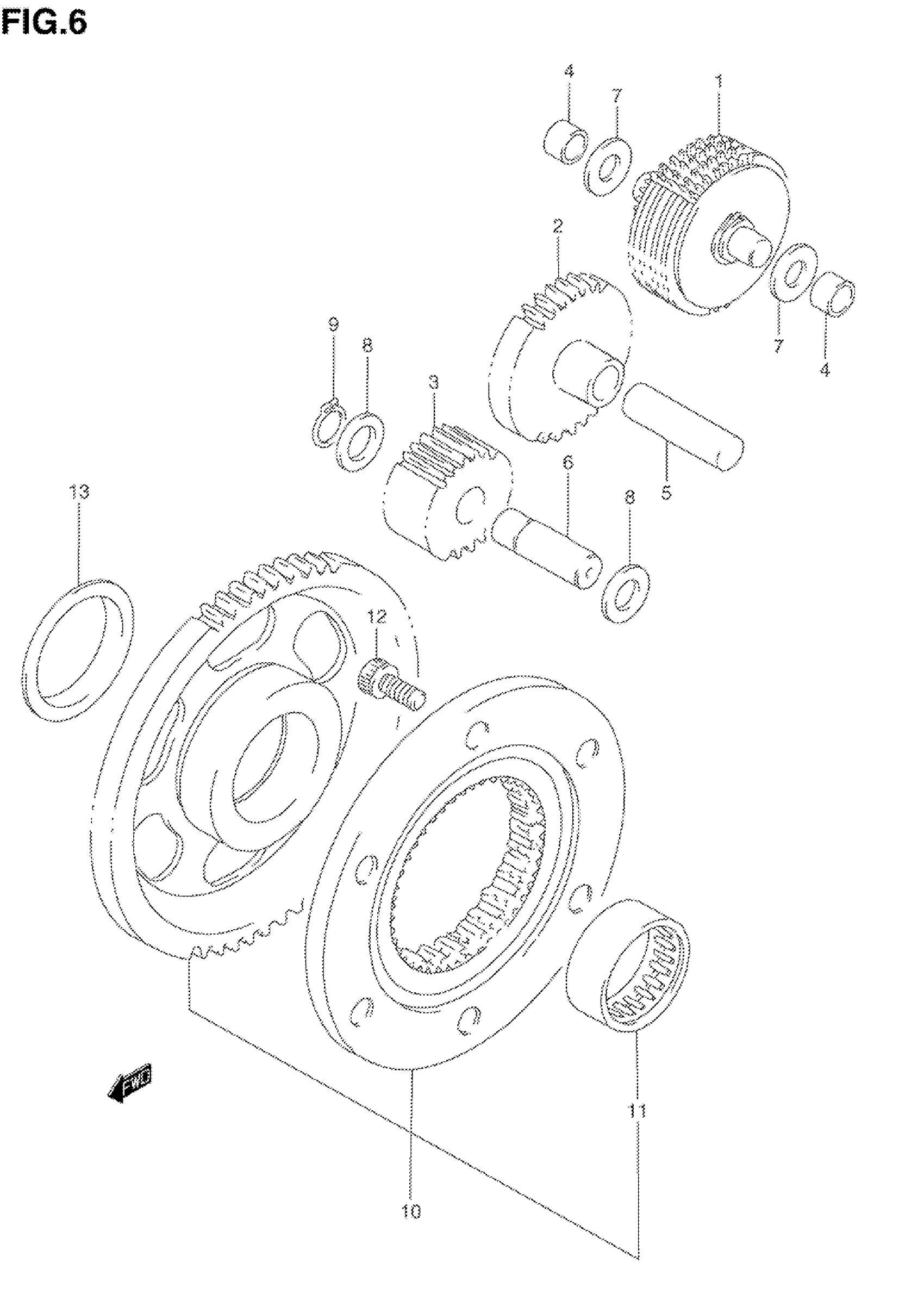

Suzuki DR650SES (1995) STARTER CLUTCH (MODEL R/S) Diagram

#

Description

Price

1

LIMITER ASSY, STARTER IDLE GEAR (NT:44) This part replaces 12600-12D00.

12600-12D01

$262.28

2

GEAR, STARTER IDLE NO.2 | NT:27

12612-12D01

$83.65

3

GEAR, STARTER IDLE NO.3 | NT:18

12613-12D00

Unavailable

4

BUSH LIMITER GEAR SHAFT

12618-31D01

$22.62

5

PIN This part replaces 09202-12002.

09206-12006

$9.43

6

SHAFT, IDLE GEAR NO.3

12615-12D00

Unavailable

7

WASHER

08211-10221

$2.28

8

WASHER

08221-12205

$2.30

9

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

10

CLUTCH SET, STARTER | Includes Item(s) 11 This part replaces 12600-12810.

12600-09860

$347.67

11

BEARING

09263-31009

$47.00

12

BOLT This part replaces 07130-08203.

07130-0820B

$3.49

13

WASHER, FR DRIVE OUTPUT This part replaces 08211-40521.

09181-40195

$6.70
