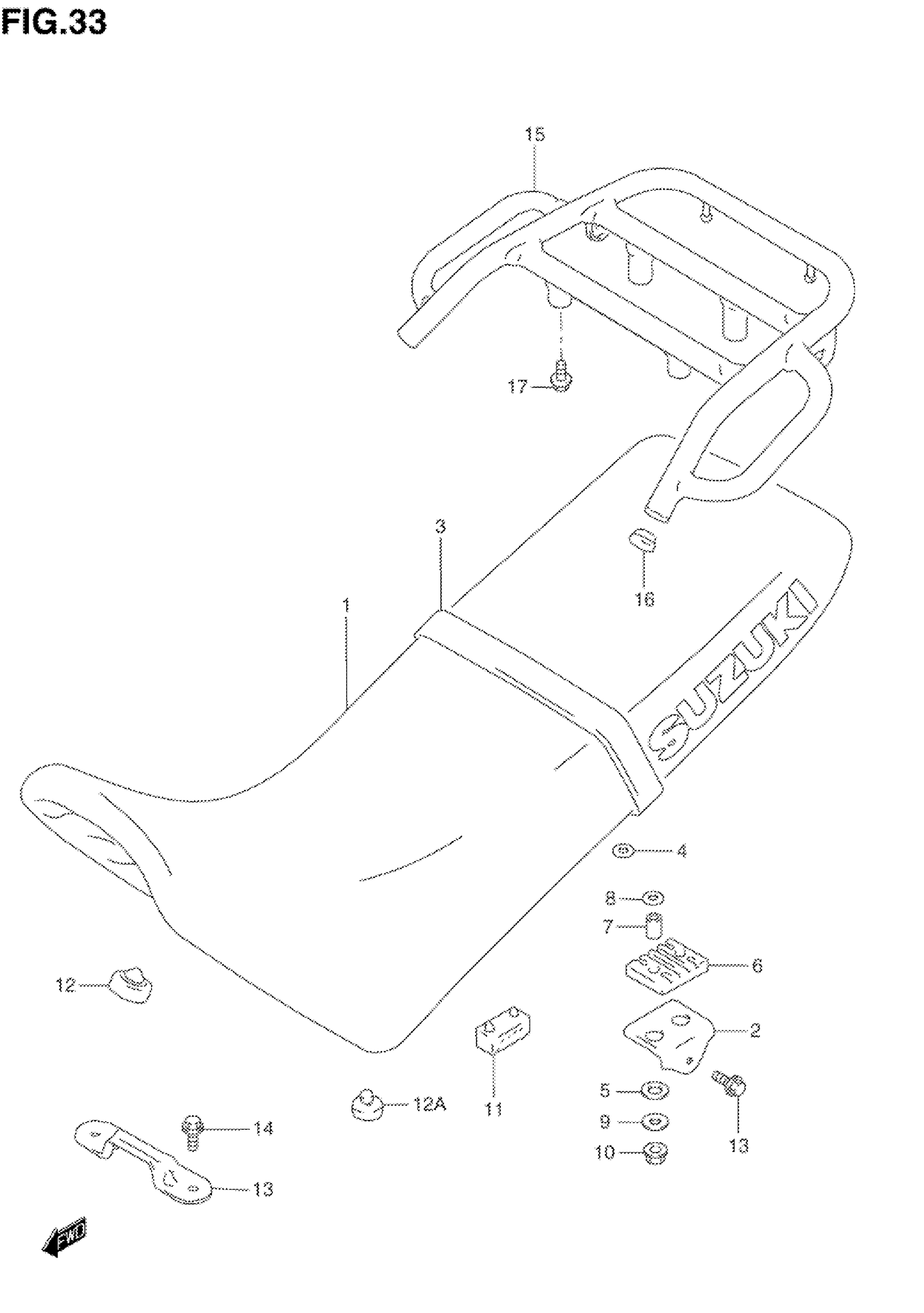

Suzuki DR650SES (1995) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 45100-12E10-9DD.

45100-12E51-9DD

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL R/S; Includes Item(s) 2 - 12A This part replaces 45100-12E40-9DD.

45100-12E41-9DD

Unavailable

2

BRACKET, SEAT RH

45210-12E00

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 45180-12E10-4UZ.

45180-12E50-4UZ

Unavailable

4

WASHER | MODEL N/P This part replaces 09169-06034.

09169-06071

$2.50

4

.WASHER | MODEL R/S This part replaces 08322-01063.

08322-0106B

$2.26

5

CUSHION, SEAT HEAD

45147-23450

Unavailable

6

CUSHION, UPPER

45150-23450

$6.38

7

SPACER

45219-44B00

Unavailable

8

WASHER, UPPER

08212-06201

$1.67

9

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

10

NUT This part replaces 08316-26066.

08316-1006B

$2.50

11

CUSHION

45149-31300

$3.56

12

CUSHION

45149-12E00

Unavailable

12A

CUSHION, FRONT | MODEL R/S

09321-10011

$2.91

13

PLATE, FRONT HOOK

45119-12E00

Unavailable

14

PLUG, DRAIN | MODEL N/P This part replaces 01107-08166.

01500-0816B

$2.50

14

BOLT (8X16) | MODEL R/S This part replaces 01550-08163.

01550-0816A

$2.32

15

CARRIER, REAR (SILVER)

46310-12E00-21R

Unavailable

16

CAP

09250-16014

Unavailable

17

BOLT | MODEL N/P This part replaces 01517-06168.

01550-06167

$2.30

17

BOLT | MODEL R/S This part replaces 01550-06163.

01550-0616A

$1.97
