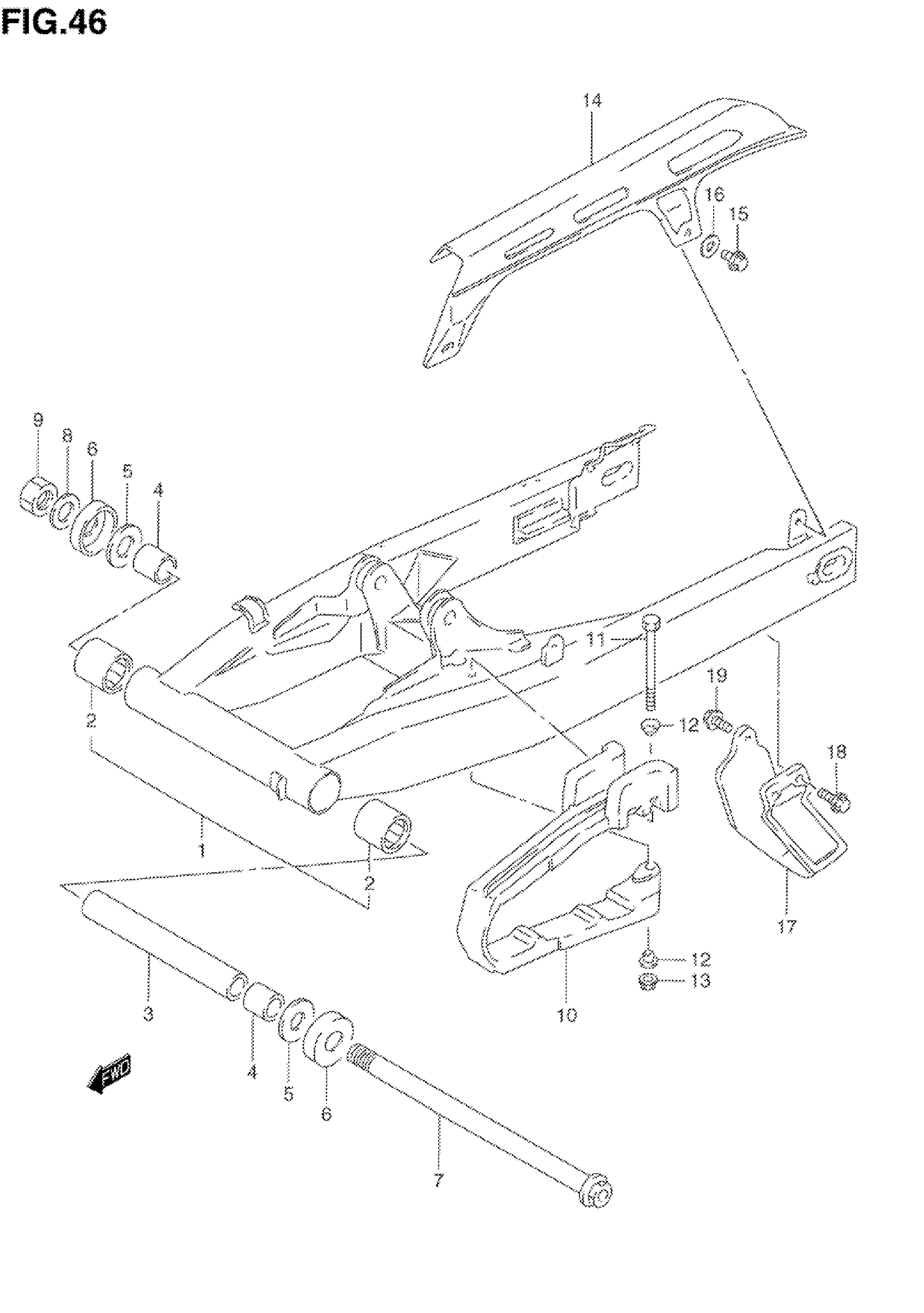

Suzuki DR650SES (1995) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGINGARM ASS | Includes Item(s) 2 This part replaces 61000-12D30-13L.

61000-12D31-13L

Unavailable

2

BEARING

09263-22022

$22.69

3

SPACER, CENTER

61282-14A00

Unavailable

4

SPACER, PIVOT

61251-32410

$14.20

5

WASHER

08211-16341

$2.39

6

SEAL This part replaces 61262-14A00.

61262-14A01

$6.17

7

SHAFT | MODEL N This part replaces 61211-12D00.

61211-12D10

Unavailable

7

SHAFT | MODEL N/P/R/S

61211-12D10

Unavailable

8

WASHER (BLACK) | MODEL N

08322-11165

Unavailable

8

WASHER | MODEL N/P This part replaces 08322-11168.

08322-01167

$2.10

8

WASHER | MODEL R/S

08322-01167

$2.10

9

NUT (BLACK) | MODEL N

08319-21165

Unavailable

9

NUT | MODEL N/P/R/S This part replaces 08319-21168.

08319-2116A

$9.00

10

BUFFER,CHAIN TC This part replaces 61273-12D20.

61273-12D21

$60.43

11

BOLT

61275-44B00

Unavailable

12

WASHER This part replaces 09169-05020.

09169-05020-XC0

Unavailable

13

NUT This part replaces 08319-31053.

08319-3105B

$3.55

14

CASE, CHAIN

61310-14A00

Unavailable

15

BOLT | MODEL N/P This part replaces 01517-06105.

01550-0610A

$1.97

15

BOLT | MODEL R/S This part replaces 01550-06103.

01550-0610A

$1.97

16

WASHER

09169-06026

$2.20

17

GUIDE, CHAIN

61341-14A03

$31.55

18

BOLT | MODEL N/P This part replaces 01517-06128.

01550-06127

$2.30

18

BOLT, CLAMP | MODEL R/S This part replaces 01550-06123.

01550-0612A

$1.97

19

BOLT | MODEL N/P This part replaces 01517-06167.

01550-06167

$2.30

19

BOLT | MODEL R/S This part replaces 01550-06163.

01550-0616A

$1.97
