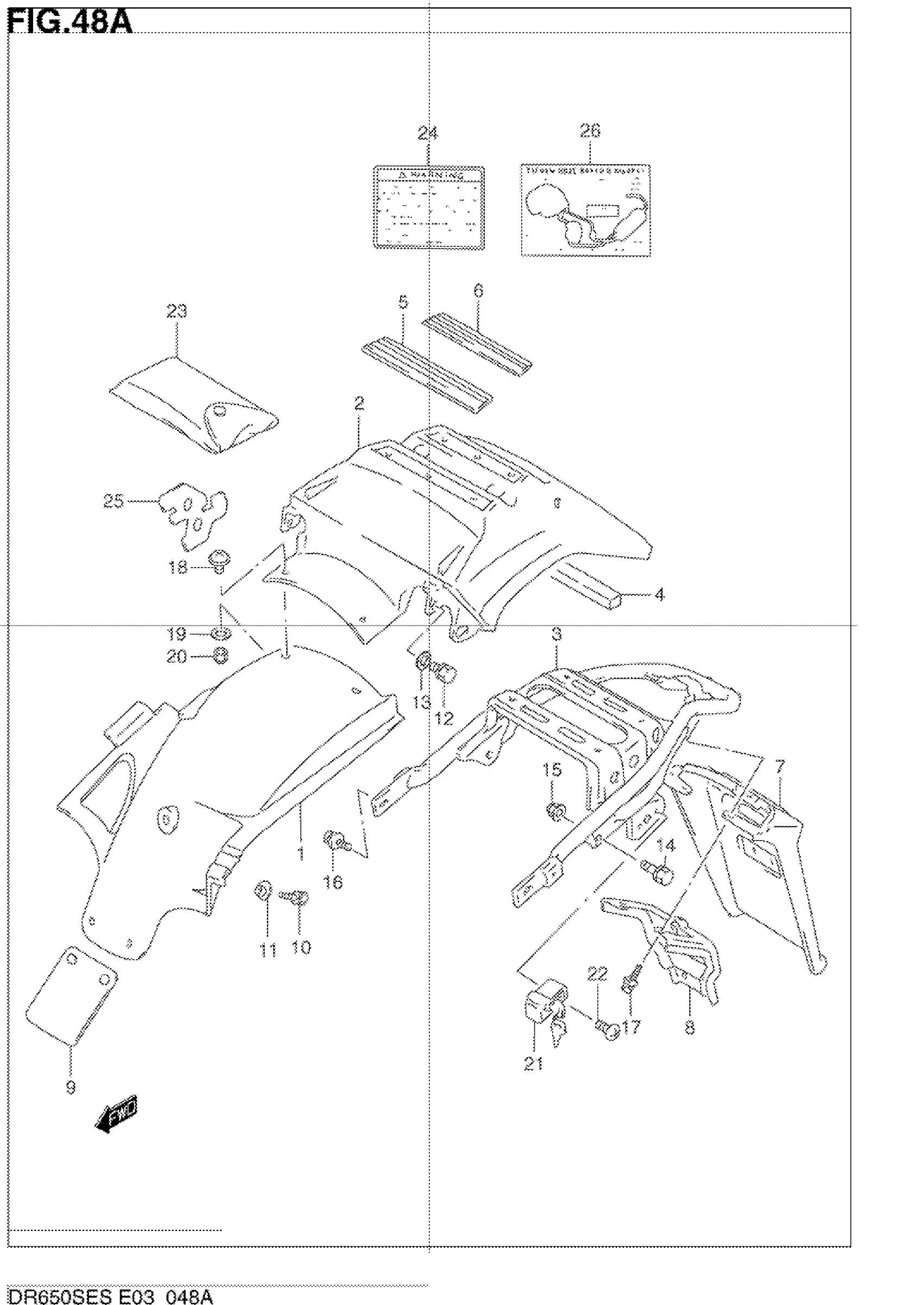

Suzuki DR650SES (1995) REAR FENDER (MODEL R/S) Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT

63112-12E10

Unavailable

2

BODY, REAR FENDER REAR (WHITE

63113-12E20-30H

Unavailable

3

REINFORCEMENT, REAR FENDER

63120-12E10

Unavailable

4

CUSHION, FENDER (L:125)

63192-12E00

Unavailable

5

CUSHION, FENDER (L:166.2)

63193-12E00

Unavailable

6

CUSHION, FENDER (L:149.5)

63193-12E10

Unavailable

7

EXTENSION, REAR FENDER

63311-03D20

Unavailable

8

REINFORCEMENT, EXTENSION

63320-03D03

Unavailable

9

MUD GUARD, REAR FENDER

63411-13700

Unavailable

10

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

11

WASHER

09169-06010

$2.60

12

BOLT This part replaces 01570-06123.

01570-0612A

$2.63

13

WASHER This part replaces 09169-06028.

09169-06041

$2.20

14

BOLT This part replaces 01570-08253.

01570-0825A

$3.15

15

NUT

08319-31087

$2.32

16

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

17

BOLT, EXTENSION

09116-06152

$2.36

18

SCREW (5X16)

09136-05035

Unavailable

19

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

20

NUT

08319-21057

$2.07

21

LOCK SET HELMET This part replaces 95700-44810.

95700-41821

$152.77

22

SCREW (6X14)

09139-06089

$3.03

23

TOOL ASSY

09800-21023

Unavailable

24

LABEL,GENERAL W This part replaces 68319-15D00.

68319-33E02

$7.25

25

SHIELD, REAR FENDER

63116-12E01

Unavailable

26

LABEL, PIPING DIAGRAM | CALIFORNIA ONLY

68387-12E00

Unavailable

27

LABEL, TIRE AIR PRESSURE | DRAWING NOT SHOWN

68332-12D00

Unavailable

28

MANUAL, OWNER'S | MODEL R

99011-12E60-03A

Unavailable

28

MANUAL, OWNER'S | MODEL SDRAWING NOT SHOWN

99011-12E61-03A

Unavailable
