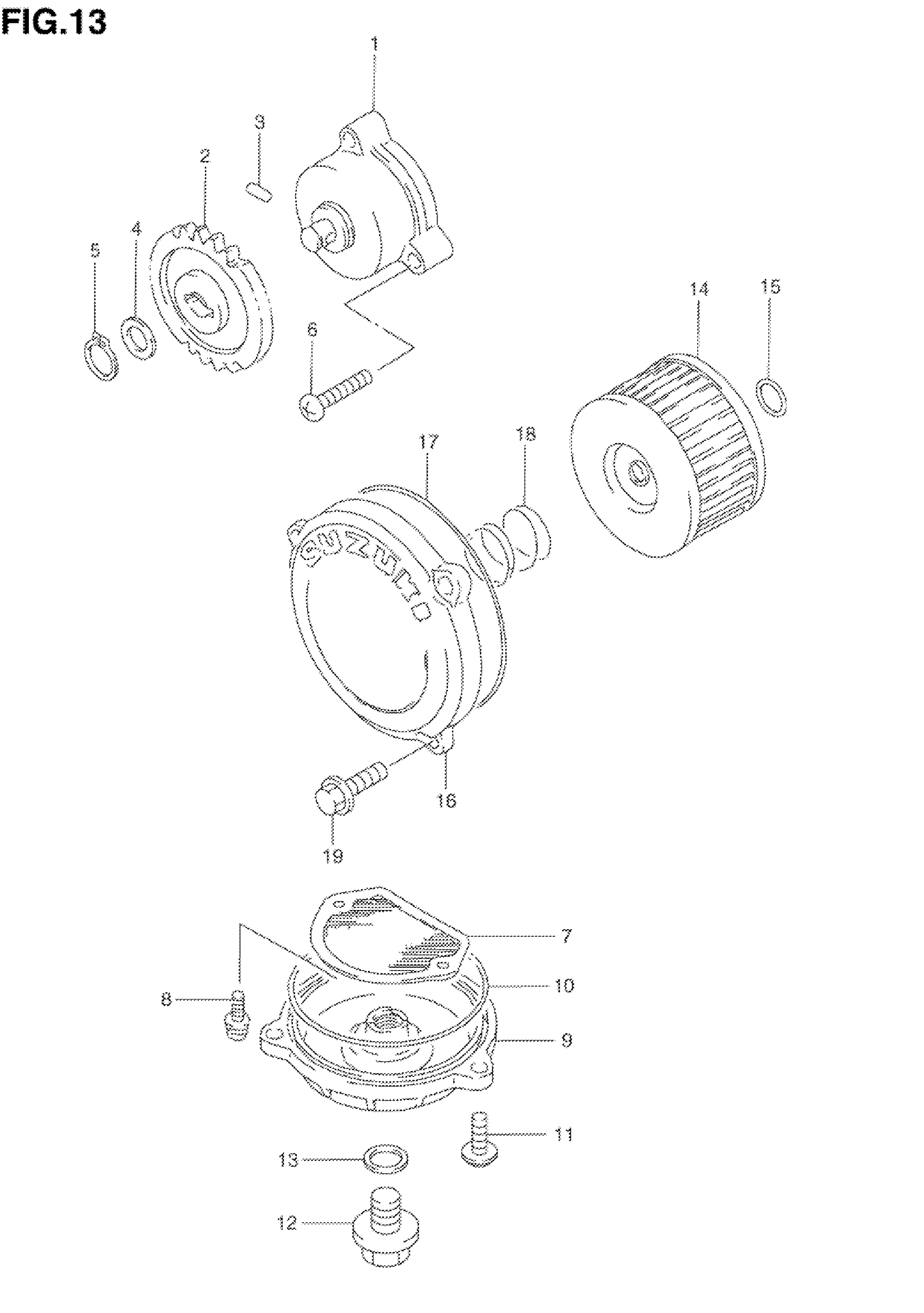

Suzuki DR650SES (1995) OIL PUMP Diagram

#

Description
Price

1

PUMP, ENGINE OIL

16400-12D00

Unavailable

2

GEAR, DRIVEN (NT:22)

16331-12D10

Unavailable

3

PIN

09261-04009

$1.56

4

WASHER

08221-10185

$2.15

5

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78

6

SCREW | MODEL N/P

02112-06257

$1.78

6

SCREW | MODEL R/S This part replaces 02112-06253.

02112-0625A

$1.80

7

STRAINER, ENGINE OIL

16520-14A00

Unavailable

8

SCREW | MODEL N/P This part replaces 02112-75126.

02112-7512A

$2.42

8

SCREW | MODEL R/S This part replaces 02112-75123.

02112-7512A

$2.42

9

CAP, OIL STRAINER

16523-37402

Unavailable

10

O RING (D:2.4,ID:82)

09280-82001

$5.18

11

BOLT | MODEL N/P This part replaces 01517-06207.

01550-06207

$2.30

11

BOLT | MODEL R/S This part replaces 01550-06203.

01550-0620A

$1.97

12

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

13

GASKET | MODEL N/P

09168-14004

$1.83

13

GASKET | MODEL R/S

09168-14002

$2.26

14

FILTER, ENGINE OIL This part replaces 16510-37440.

16510-37450

$6.06

15

O RING (D:2.4,ID:15.8) | MODEL N/P

09280-16005

$2.23

15

O-RING (D:2.4,ID:15.8) | MODEL R/S

09280-15007

$1.70

16

CAP, OIL FILTER

16512-12E00

$27.28

17

.O RING (D:2.4,ID:73)

09280-72001

$4.94

18

SPRING | MODEL N/P

09440-21004

$2.75

18

SPRING | MODEL R/S

09440-21006

$2.03

19

BOLT

01547-06167

$1.65
