1995 Suzuki DR650SES OIL Cooler Diagram

← All diagrams

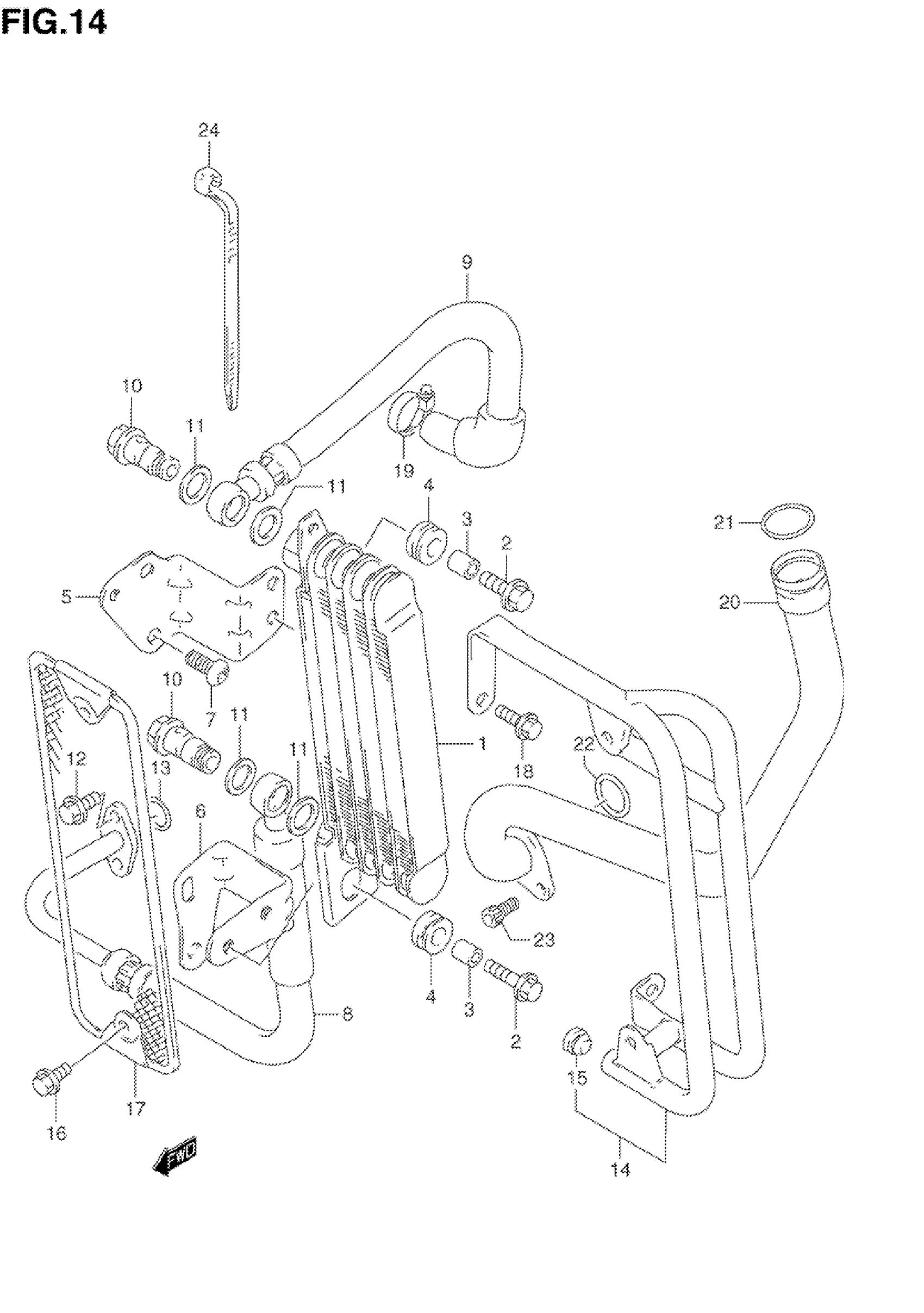

Find the part on the OIL Cooler diagram for your 1995 Suzuki DR650SES, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki DR650SES OIL Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COOLER ASSY, OIL

16600-14A10

1
Out of stock

2

BOLT (6X20) This part replaces 09116-06143.

09116-06115

2
Out of stock

3

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

2
Out of stock

4

CUSHION, OIL COOLER

09320-10015

2
Out of stock

5

BRACKET, OIL COOLER UPPER

16620-14A10

1
Out of stock

6

BRACKET, OIL COOLER LOWER

16630-14A10

1
Out of stock

7

BOLT (8X12)

09106-08116

2
Out of stock

8

HOSE, OIL COOLER NO.1

16460-14A10

1
Out of stock

9

HOSE, OIL COOLER NO.2

16470-14A10

1
Out of stock

10

BOLT, UNION (M:12XL:28.5) | MODEL N/P This part replaces 09360-12004.

09360-12006

2
Out of stock

10

BOLT, UNION (M:12XL:28.5) | MODEL R/S

09360-12006

2
Out of stock

11

GASKET (14X20X1.5)

09168-14011

4
Out of stock

12

BOLT | MODEL N/P This part replaces 01547-06165.

01547-0616B

2
Out of stock

12

BOLT | MODEL R/S This part replaces 01547-06163.

01547-0616B

2
Out of stock

13

O RING (D:2.4,ID:12.3)

09280-12008

1
Out of stock

14

GUARD, OIL COOLER | MODEL N This part replaces 16640-14A10.

16640-14A12

1
Out of stock

14

GUARD, OIL COOLER | MODEL P This part replaces 16640-14A11.

16640-14A12

1
Out of stock

14

GUARD, OIL COOLER | MODEL R/S; Includes Item(s) 15

16640-14A12

1
Out of stock

15

PLUG, PIPE

09250-09005

1
Out of stock

16

BOLT, CLAMP | MODEL N/P This part replaces 01517-06125.

01550-0612A

2
Out of stock

16

BOLT, CLAMP | MODEL R/S This part replaces 01550-06123.

01550-0612A

2
Out of stock

17

BUMPER, OIL COOLER

16650-14A10

1
Out of stock

18

BOLT | MODEL N/P

01547-06127

3
Out of stock

18

BOLT | MODEL R/S

07130-06127

3
Out of stock

19

CLAMP, LOWER This part replaces 09402-15502.

09402-17511

1
Out of stock

20

PIPE, OIL RETURN

11160-12D01

1
Out of stock

21

O RING (D:3.7,ID:21.7)

09280-22016

1
Out of stock

22

O RING (D:2.4,ID:23.7) | MODEL N/P This part replaces 09280-22010.

09280-24010

1
Out of stock

22

O RING (D:2.4,ID:23.7) | MODEL R/S This part replaces 09280-24005.

09280-24010

1
Out of stock

23

BOLT | MODEL N/P This part replaces 07110-06167.

07130-06167

2
Out of stock

23

BOLT | MODEL R/S This part replaces 07130-06163.

07130-0616B

2
Out of stock

24

CLAMP

09407-14403

1
Out of stock
