1995 Suzuki DR650SES Crank Balancer Diagram

← All diagrams

Find the part on the Crank Balancer diagram for your 1995 Suzuki DR650SES, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

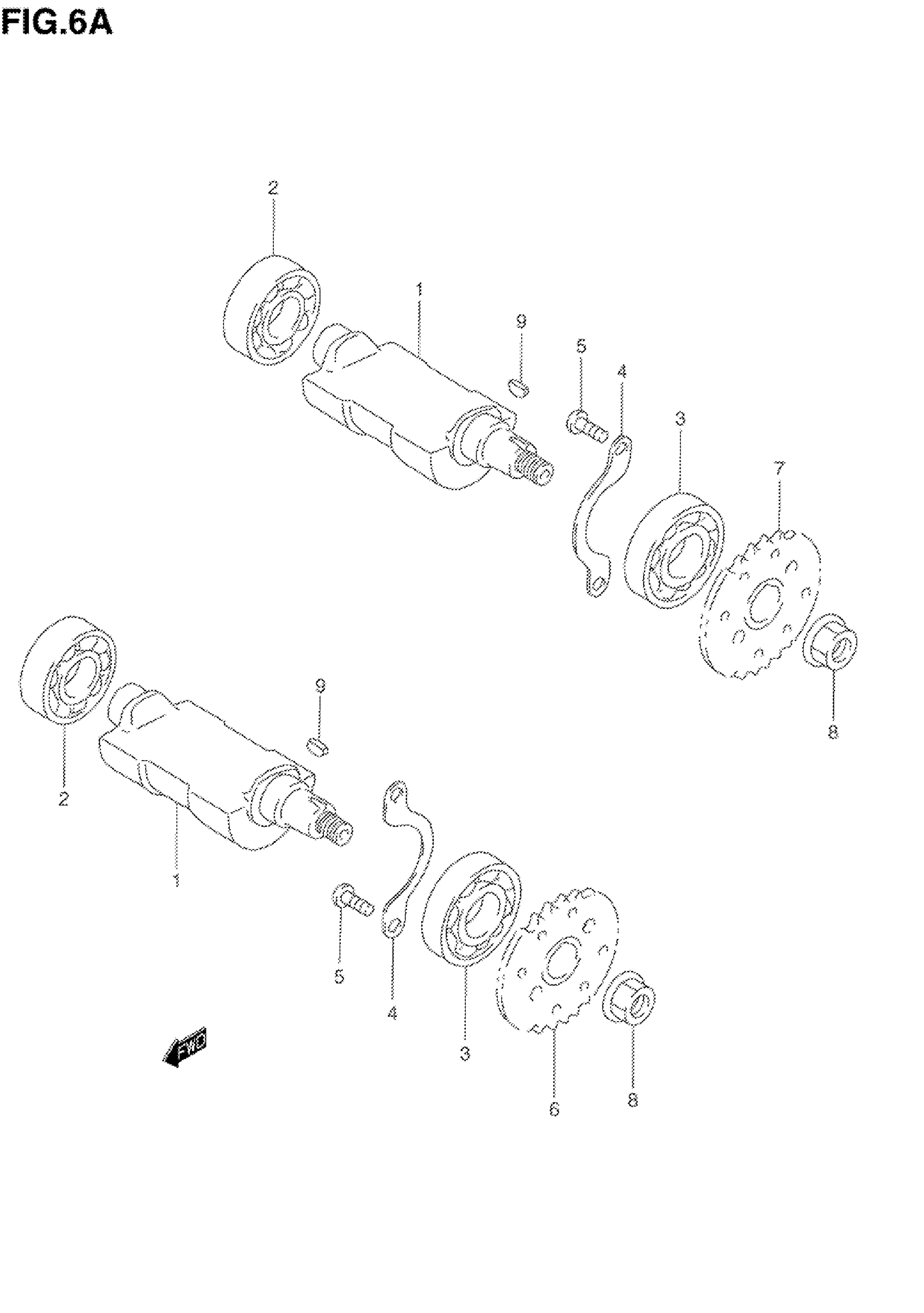

1995 Suzuki DR650SES Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BALANCER, CRANK This part replaces 12651-12D10.

12651-12D11

2
Out of stock

2

BEARING, RH (20X42X12)

09262-20106

2
Out of stock

3

BEARING, LH (20X47X12)

09262-20122

2
Out of stock

4

RETAINER, BEARING

12659-37400

2
Out of stock

5

SCREW This part replaces 02112-06126.

02112-0612A

4
Out of stock

6

SPROCKET, FRONT (NT:25)

12665-37453

1
Out of stock

7

SPROCKET, REAR (NT:25)

12675-37453

1
Out of stock

8

NUT This part replaces 09159-10014.

09159-10046-XC0

2
Out of stock

9

KEY

08341-31039

2
Out of stock

10

REFER TO FIG.6B(B-13) FOR

SPECIAL NOTE

—
Out of stock
