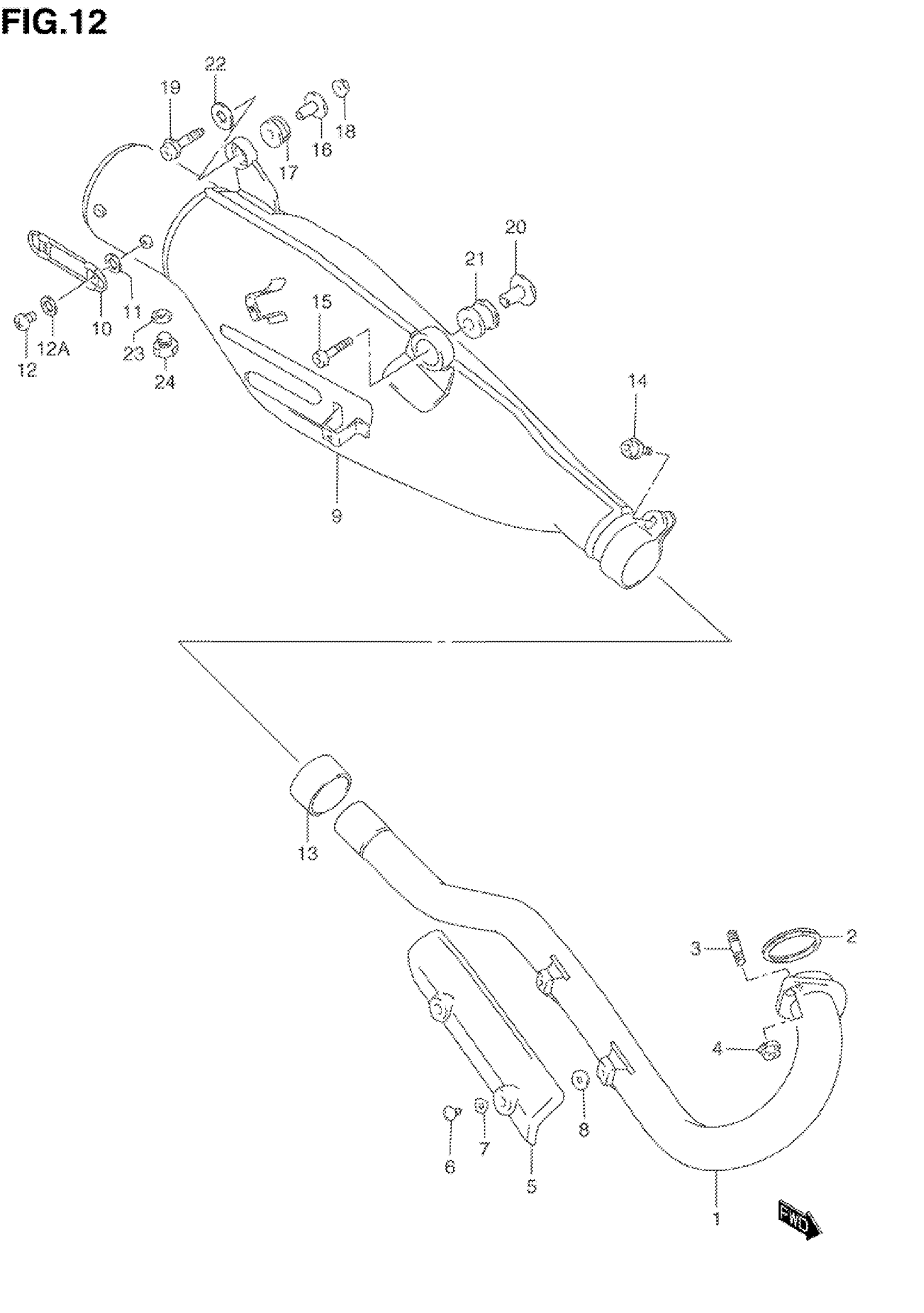

Suzuki DR650SES (1995) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST | MODEL N This part replaces 14150-14A21.

14150-14A22

Unavailable

1

PIPE, EXHAUST | MODEL P/R/S

14150-14A22

Unavailable

2

GASKET, EXHAUST PIPE (NA)

14181-01D00

$7.11

3

BOLT, STUD

09108-08106

$3.35

4

NUT | MODEL N/P This part replaces 09159-08085.

09159-08083

$3.83

4

NUT | MODEL R/S

09159-08083

$3.83

5

COVER, EXHAUST PIPE

14180-12D00

Unavailable

6

BOLT (6X10)

09139-06076

$2.42

7

WASHER (6.5X13X1)

09160-06082

$1.49

8

GASKET (6X16X1.4)

09168-06122

$2.73

9

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 14310-12E12-H01.

14310-12E21-H01

Unavailable

9

NO DESCRIPTION AVAILABLE | MODEL R/S This part replaces 14310-12E20-H01.

14310-12E21-H01

Unavailable

10

COVER, MUFFLER

14780-12E00

Unavailable

11

GASKET (NA)

09168-06121

Unavailable

12

BOLT (6X10)

09139-06076

$2.42

12A

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

13

CONNECTOR (NA)

14771-44B00

$24.43

14

BOLT | MODEL N/P This part replaces 07120-08405.

07120-0840A

$3.42

14

BOLT | MODEL R/S This part replaces 07120-08403.

07120-0840A

$3.42

15

BOLT (8X40) | FR

09106-08074

$3.85

16

SPACER

09180-08151

$5.18

17

CUSHION

09320-12043

$7.98

18

NUT This part replaces 08319-31085.

08319-3108A

$2.32

19

BOLT, MUFFLER SUPPORT | MODEL N/P,RR This part replaces 07120-08455.

07120-0845B

$3.91

19

BOLT, MUFFLER SUPPORT | MODEL R/S,RR This part replaces 07120-08453.

07120-0845B

$3.91

20

SPACER

09180-08152

$5.83

21

CUSHION

09320-12048

$5.11

22

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35

23

GASKET

09168-12002

$1.59

24

PLUG

09247-12103

$2.84
