1995 Suzuki DR650SES Kick Starter Diagram

← All diagrams

Find the part on the Kick Starter diagram for your 1995 Suzuki DR650SES, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

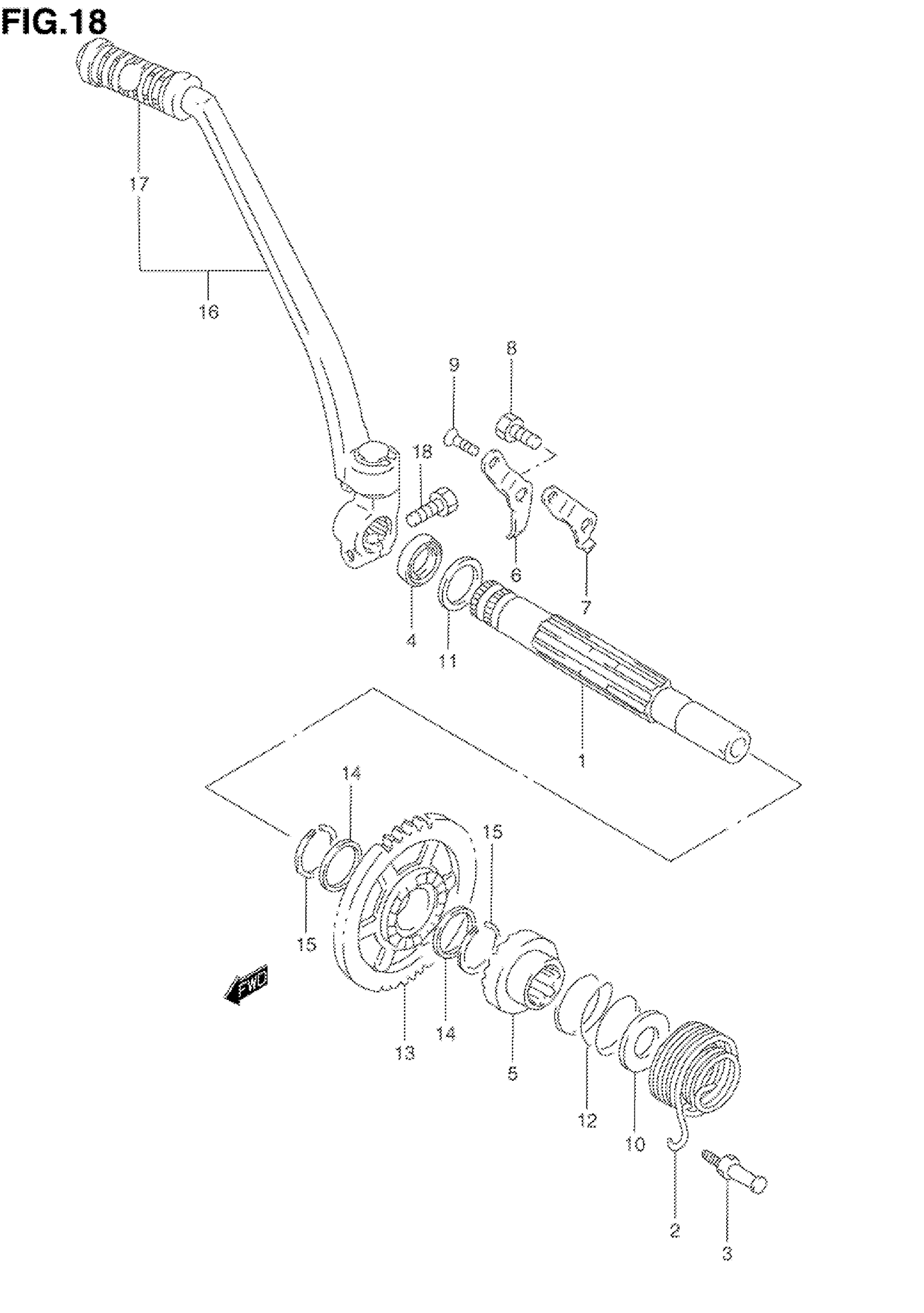

1995 Suzuki DR650SES Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, KICK STARTER

26211-14A02

1
Out of stock

2

SPRING

09448-41003

1
Out of stock

3

BOLT

26237-14500

1
Out of stock

4

OIL SEAL (20X27X6)

09283-20044

1
Out of stock

5

STARTER, KICK This part replaces 26231-38201.

26231-38202

1
Out of stock

6

LIFTER

26232-14A00

1
Out of stock

7

STOPPER

26233-14A01

1
Out of stock

8

BOLT This part replaces 01107-08206.

01500-0820A

1
Out of stock

9

SCREW

02122-06167

1
Out of stock

10

WASHER

08211-17341

1
Out of stock

11

SHIM (20X28X1) This part replaces 08211-20281.

09181-20167

1
Out of stock

12

SPRING

09440-32006

1
Out of stock

13

GEAR, DRIVE (NT:40)

26240-14A00

1
Out of stock

14

WASHER (22X28X1.0) This part replaces 08211-22281.

09181-22139

2
Out of stock

15

CIRCLIP

09380-22006

2
Out of stock

16

LEVER ASSY, KICK STARTER | Includes Item(s) 17

26300-14A03

1
Out of stock

17

RUBBER,KICK STA This part replaces 26352-16401.

26352-16402

1
Out of stock

18

BOLT

09100-08194

1
Out of stock
