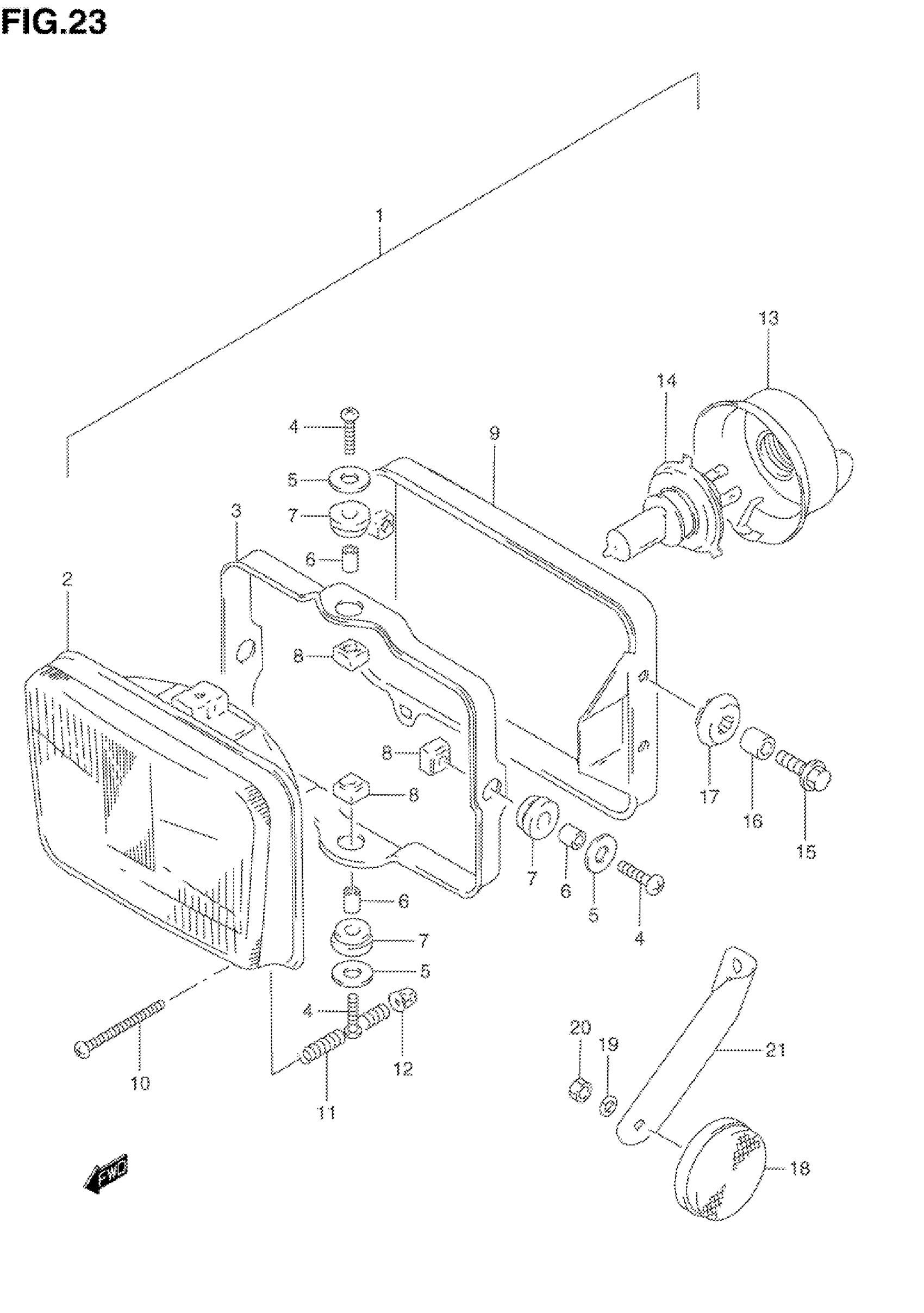

Suzuki DR650SES (1995) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | MODEL N This part replaces 35100-12E30.

35100-12E31-999

Unavailable

1

HEADLAMP ASSY | MODEL P/R/S; Includes Item(s) 2 - 14 This part replaces 35100-12E30-999.

35100-12E31-999

Unavailable

2

UNIT ASSY

35121-12E30

Unavailable

3

RING, MOUNTING

35130-12E20

Unavailable

4

.SCREW This part replaces 35151-31D00.

02112-0516A

$1.49

5

WASHER (5.5X18X1) This part replaces 35138-45230.

09160-05045

$1.93

5

WASHER (5.5X18X1) This part replaces 09160-05003.

09160-05045

$1.93

6

SPACER

35133-45230

$3.30

7

CUSHION

35139-45230

$1.98

8

NUT

35135-45900

$3.25

9

HOUSING

35141-12E20

Unavailable

10

SCREW, LENS (4X45) | MODEL N/P This part replaces 35151-12E20.

09125-04501

$3.16

10

SCREW, ADJUSTER | MODEL R/S

09125-04501

$3.16

11

SPRING, ADJUSTING

35154-12E20

Unavailable

12

.NUT ADJUSTING

35135-12E20

$3.72

13

.COVER SOCKET

35173-01440

$17.37

14

BULB (12V,60/55W H4)

09471-12060

$25.15

15

BOLT (6X20) | MODEL N/P This part replaces 09116-06011.

09116-06115

$1.97

15

BOLT | MODEL R/S

09116-06167

$2.19

16

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

$1.91

17

CUSHION

09320-09018

$2.44

18

REFLECTOR, FRONT SIDE

35950-15500

Unavailable

19

LOCK WASHER | MODEL N/P This part replaces 08321-21057.

08321-0105A

$1.84

19

LOCK WASHER | MODEL R/S This part replaces 08321-01053.

08321-0105A

$1.84

20

NUT | MODEL N/P This part replaces 08313-11055.

08313-1005B

$2.70

20

NUT | MODEL R/S This part replaces 08313-10053.

08313-1005B

$2.70

21

BRACKET, REFLECTOR RH

35956-44B01

$11.83

21

BRACKET, REFLECTOR LH

35957-44B01

$11.83
