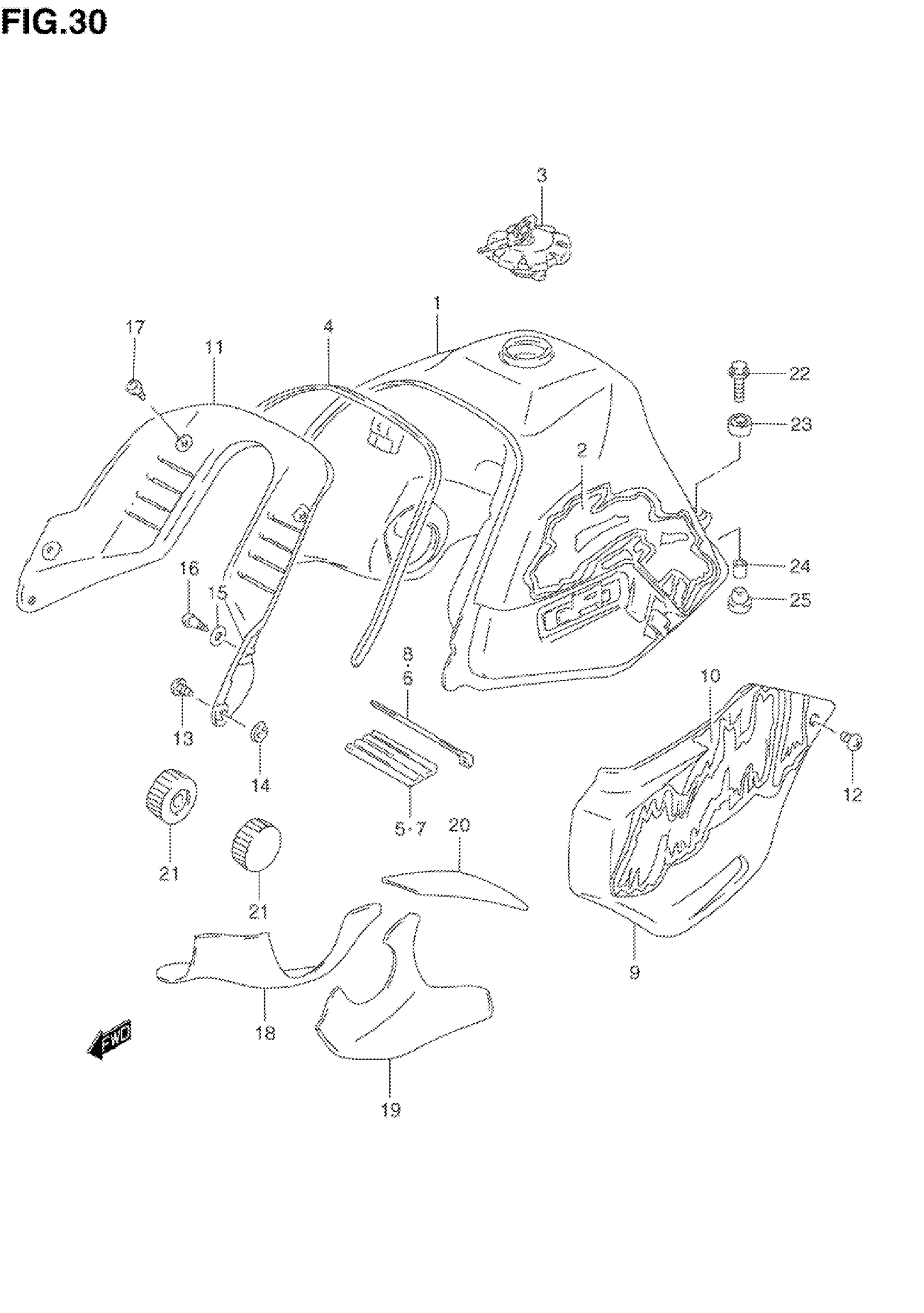

Suzuki DR650SES (1995) FUEL TANK (MODEL N) Diagram

#

Description
Price

1

TANK ASSY, FUEL (WHITE)

44100-12E31-28X

Unavailable

1

TANK ASSY, FUEL (WHITE) | CALIFORNIA ONLY; Includes Item(s) 2

44100-12E21-28X

Unavailable

2

TAPE SET, FUEL TANK

68110-12E11-M79

Unavailable

3

CAP SET,FUEL TA This part replaces 44200-12850.

44200-12852

$158.35

3

CAP SET,FUEL TA | CALIFORNIA ONLY This part replaces 44200-05820.

44200-05822

$74.48

4

MOLDING This part replaces 68241-12E00.

94631-44110

$36.85

5

CUSHION, UPPER

44541-14500

$8.28

6

CLAMP This part replaces 09407-20401.

09407-25402

$4.64

7

CUSHION, UPPER REAR

44542-12E00

Unavailable

8

CLAMP

09407-30402

$4.11

9

COVER, FUEL TANK RH (WHITE)

44171-12E10-30H

Unavailable

9

COVER, FUEL TANK LH (WHITE)

44181-12E10-30H

Unavailable

10

TAPE, TANK COVER RH

68115-12E00-N11

Unavailable

10

TAPE, TANK COVER LH

68125-12E00-N11

Unavailable

11

COVER, FRONT

44271-12E00

Unavailable

12

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-16105.

02142-0610A

$1.49

13

SCREW, COVER REAR This part replaces 03241-15165.

03241-1516A

$1.97

14

NUT

09148-05013

$2.07

15

WASHER (6.5X18X1.6) This part replaces 09160-07011.

09160-06109

$1.49

16

SCREW, FRONT CENTER

09139-05037

$2.06

17

SCREW This part replaces 02142-15105.

02142-15103

Unavailable

18

HEAT SHIELD, FUEL TANK RH | CALIFORNIA ONLY

44267-12E20

Unavailable

19

HEAT SHIELD, FUEL TANK LH | CALIFORNIA ONLY

44268-12E20

Unavailable

20

HEAT SHIELD, FUEL TANK CENTER | CALIFORNIA ONLY

44269-12E20

Unavailable

21

CUSHION,FUEL TANK,FRONT

44511-12D00

$6.93

22

BOLT (6X30) This part replaces 09116-06078.

09116-06172

$2.50

23

CUSHION, UPPER

09320-14022

$3.63

24

SPACER This part replaces 09180-06072.

09180-06271

$2.35

25

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

26

REFER TO FIG.30A(F-7) FOR

SPECIAL NOTE

Unavailable
