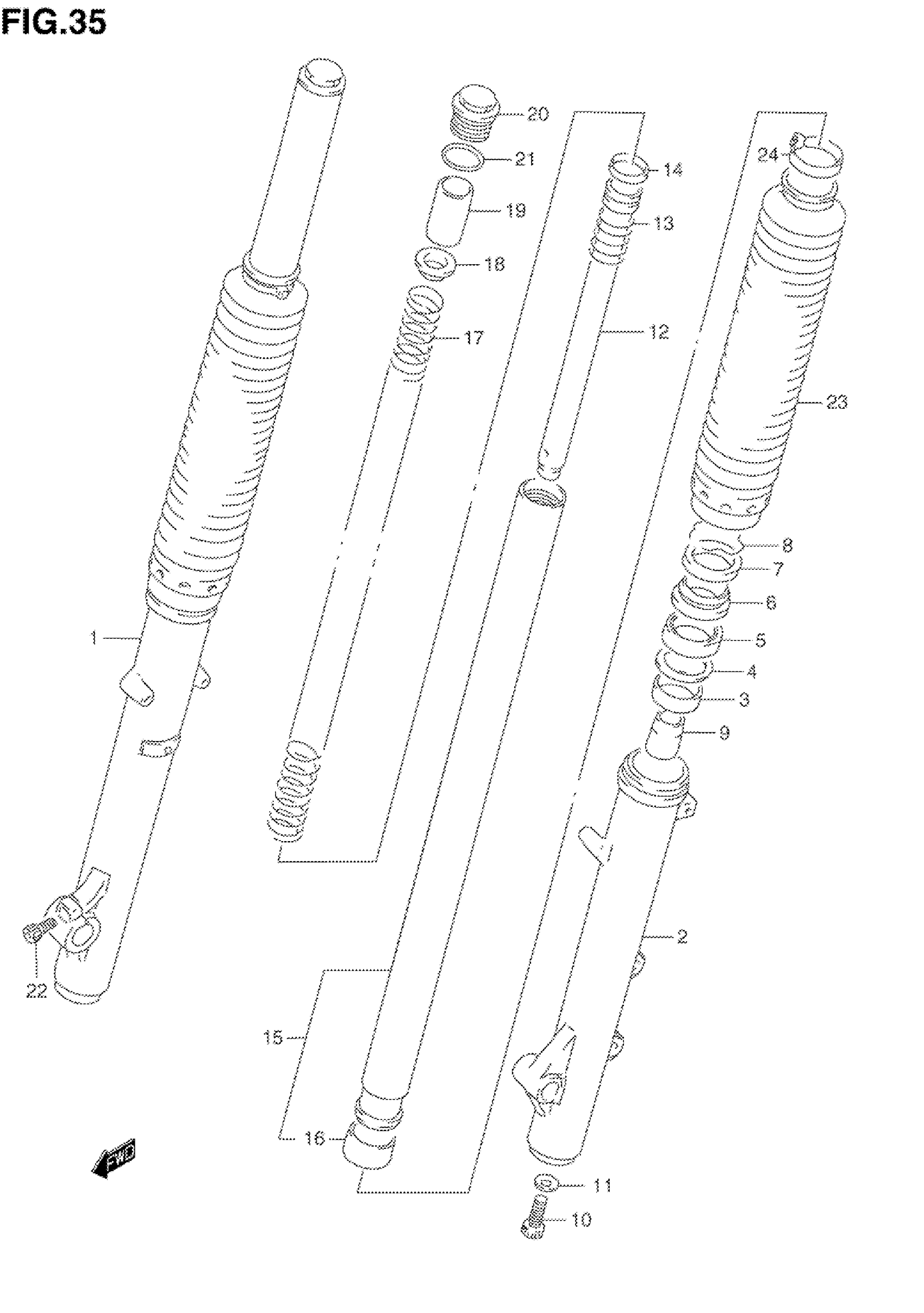

Suzuki DR650SES (1995) FRONT FORK (MODEL N/P) Diagram

#

Description
Price

DAMPER ASSY, RH

51103-12E00

Unavailable

DAMPER ASSY, LH | Includes Item(s) 1 - 22

51104-12E00

Unavailable

1

TUBE, OUTER RH

51130-12D10

Unavailable

2

TUBE, OUTER LH

51140-12D10

Unavailable

3

METAL, SLIDE This part replaces 51167-28C00.

51167-26E10

$24.52

4

WASHER, LOWER

51158-05A00

$5.83

5

OIL SEAL

51153-44B00

$20.86

6

DUST SEAL

51173-44B00

$17.75

7

WASHER, UPPER

51158-44B00

Unavailable

8

SNAP RING

51156-49440

$5.05

9

PIECE, OIL LOCK

51195-12D10

Unavailable

10

BOLT

51147-14200

Unavailable

11

GASKET

51148-14200

$2.47

12

CYLINDER

51146-12E00

Unavailable

13

SPRING

51177-12D00

Unavailable

14

RING, PISTON

51196-24A00

Unavailable

15

TUBE, INNER

51110-12D10

Unavailable

16

.PISTON This part replaces 51121-28C00.

51121-26E10

$30.22

17

SPRING, MAIN

51171-12E00

Unavailable

18

GUIDE, SPRING

51172-12D00

Unavailable

19

SPACER

51176-12D00

Unavailable

20

CAP

51351-10D00

$54.75

21

O RING This part replaces 51117-06C10.

09280-32001

$2.06

22

BOLT, RH

51138-44B00

Unavailable

23

BOOT (BLUE)

51571-12D00-38K

$106.45

24

BAND, BOOT UPPER

51575-12D00

Unavailable

25

REFER TO FIG.35A (G-3) FOR

SPECIAL NOTE

Unavailable
