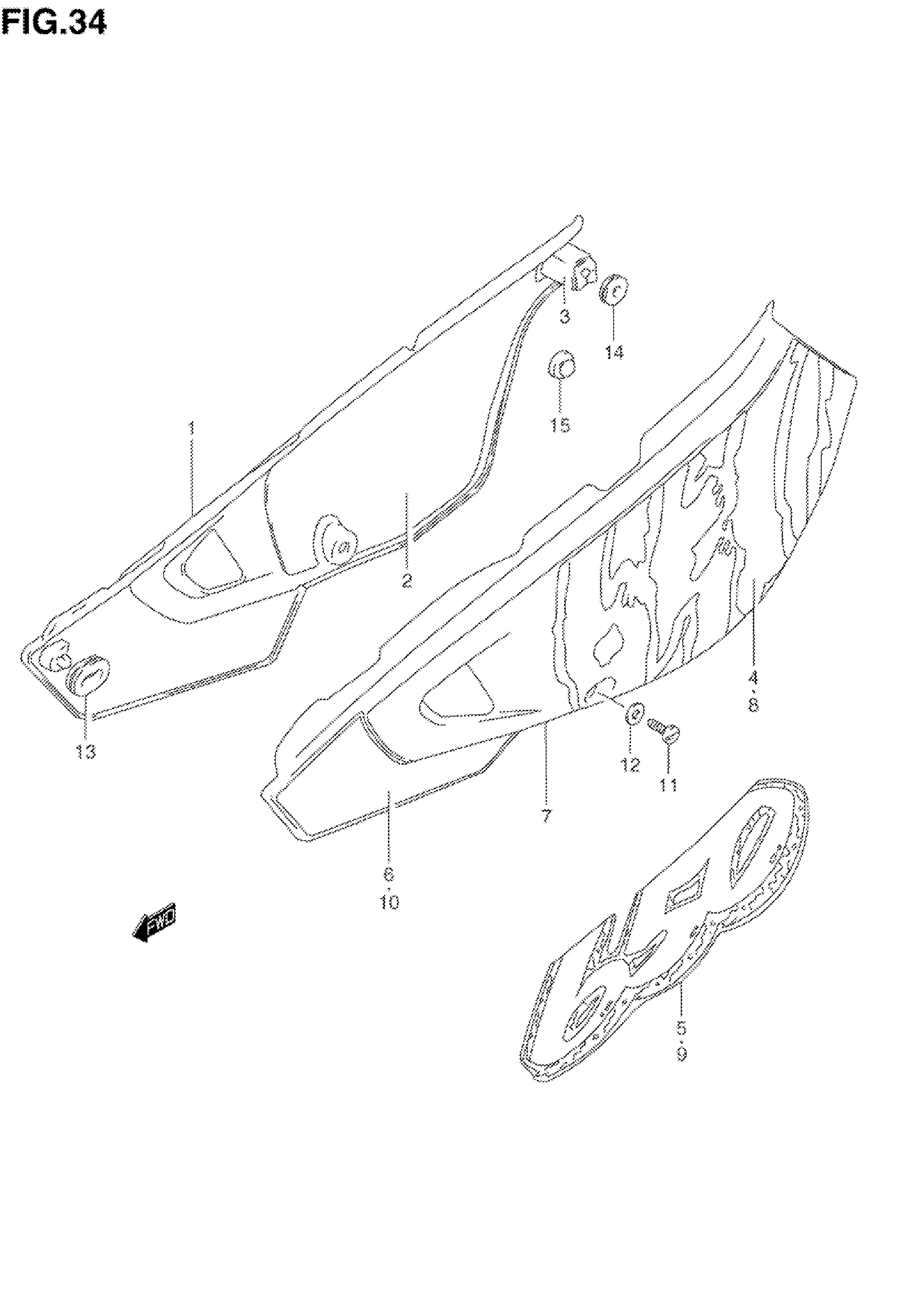

Suzuki DR650SES (1995) FRAME COVER (MODEL N/P) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | MODEL N This part replaces 47110-12E10-28X.

47111-12E00-30H

Unavailable

1

COVER, FRAME RH (WHITE) | MODEL P; Includes Item(s) 2 - 6 This part replaces 47110-12E20-28X.

47111-12E00-30H

Unavailable

2

SHIELD, COVER LOWER RH

47166-12E00

Unavailable

3

SHIELD, COVER UPPER RH

47167-12E00

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 68135-12E10-M82.

68135-12E11-M82

Unavailable

5

EMBLEM, RH | MODEL P

68135-12E20-A4F

Unavailable

6

TAPE, RH NO.2

68136-12E00

Unavailable

7

COVER, FRAME LH (WHITE) | MODEL N This part replaces 47210-12E10-28X.

47211-12E00-30H

Unavailable

7

COVER, FRAME LH (WHITE) | MODEL P; Includes Item(s) 8 - 10 This part replaces 47210-12E20-28X.

47211-12E00-30H

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 68145-12E10-M82.

68145-12E11-M82

Unavailable

9

EMBLEM, LH | MODEL P

68145-12E20-A4F

Unavailable

10

TAPE, LH NO.2

68146-12E00

Unavailable

11

SCREW

02142-06167

$1.49

12

WASHER This part replaces 09169-06028.

09169-06041

$2.20

13

CUSHION, FRONT

09320-08029

$2.41

14

CUSHION, REAR

09320-08028

$3.04

15

CUSHION, MUFFLER

09321-10018

$5.45

16

REFER TO FIG.34A (F-15) FOR

SPECIAL NOTE

Unavailable
