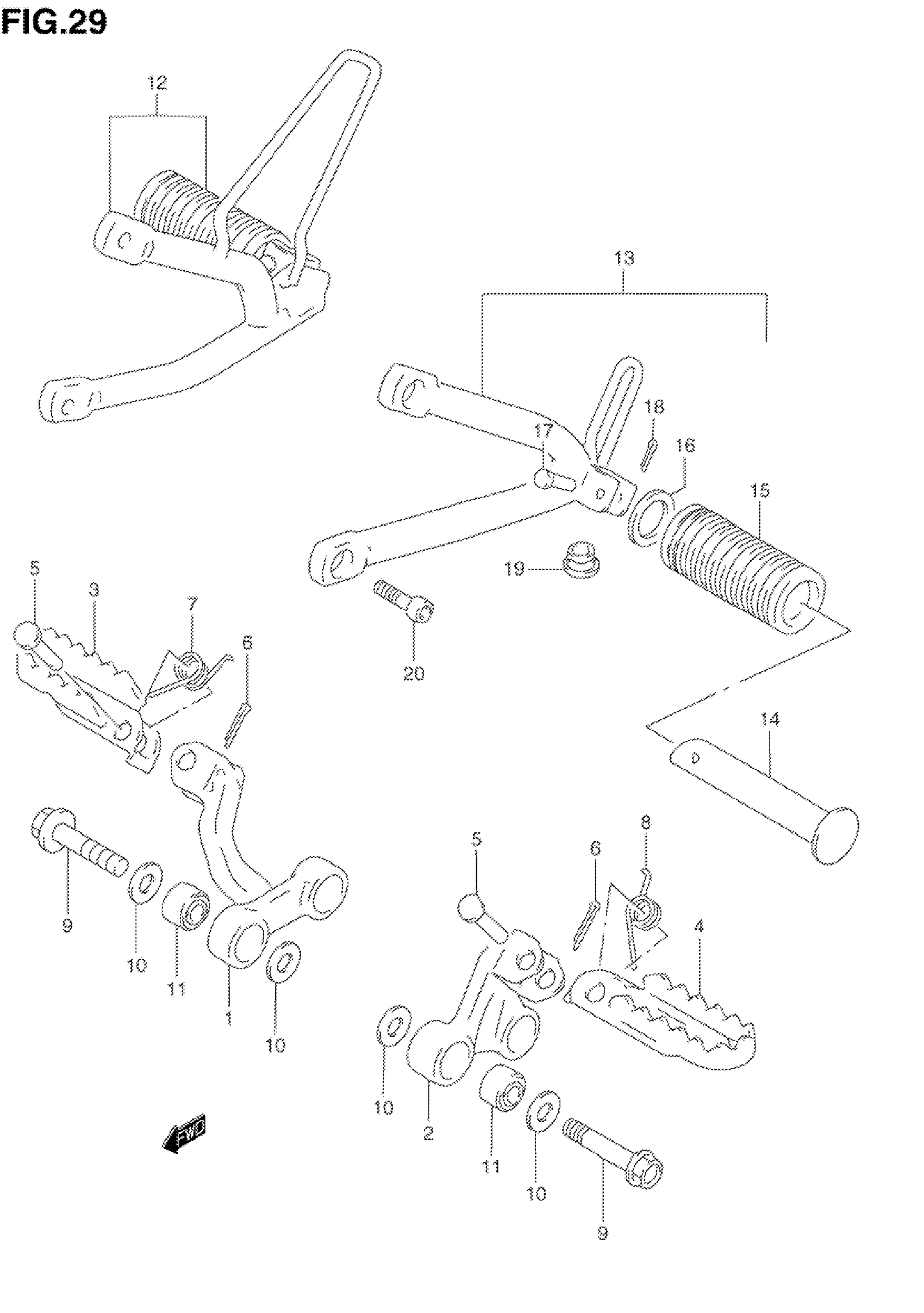

Suzuki DR650SES (1995) FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST RH (BLACK)

43510-14A00-019

Unavailable

2

BAR, FOOTREST LH (BLACK) | MODEL N/P

43520-14A00-019

Unavailable

2

BAR, FOOTREST LH (BLACK) | MODEL R/S

43520-12D00-019

Unavailable

3

FOOTREST, FRONT RH (BLACK)

43550-44B10-019

$32.92

4

FOOTREST, FRONT LH (BLACK)

43560-44B10-019

Unavailable

5

PIN

09200-10008

$2.62

6

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

7

SPRING This part replaces 09448-15008.

09448-15008-XC0

Unavailable

8

SPRING, LH

09448-15004

$2.34

9

BOLT

09103-10232

$5.65

10

WASHER This part replaces 09160-10059.

09160-10124

$2.35

11

BUSH

09319-10033

$6.83

12

NO DESCRIPTION AVAILABLE This part replaces 43600-12E00-019.

43600-12E01-019

Unavailable

13

NO DESCRIPTION AVAILABLE | Includes Item(s) 14 - 19 This part replaces 43700-12E00-019.

43700-12E01-019

Unavailable

14

BAR

43610-03001

$6.52

15

RUBBER

43612-44B00

Unavailable

16

WASHER This part replaces 09160-19006.

09160-19024

$2.65

17

PIN

09200-06010

$1.72

18

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

19

CAP

09250-16014

Unavailable

20

BOLT, BRACKET | MODEL N/P This part replaces 07110-08207.

07130-08207

$4.32

20

BOLT | MODEL R/S This part replaces 07130-08203.

07130-0820B

$3.49
