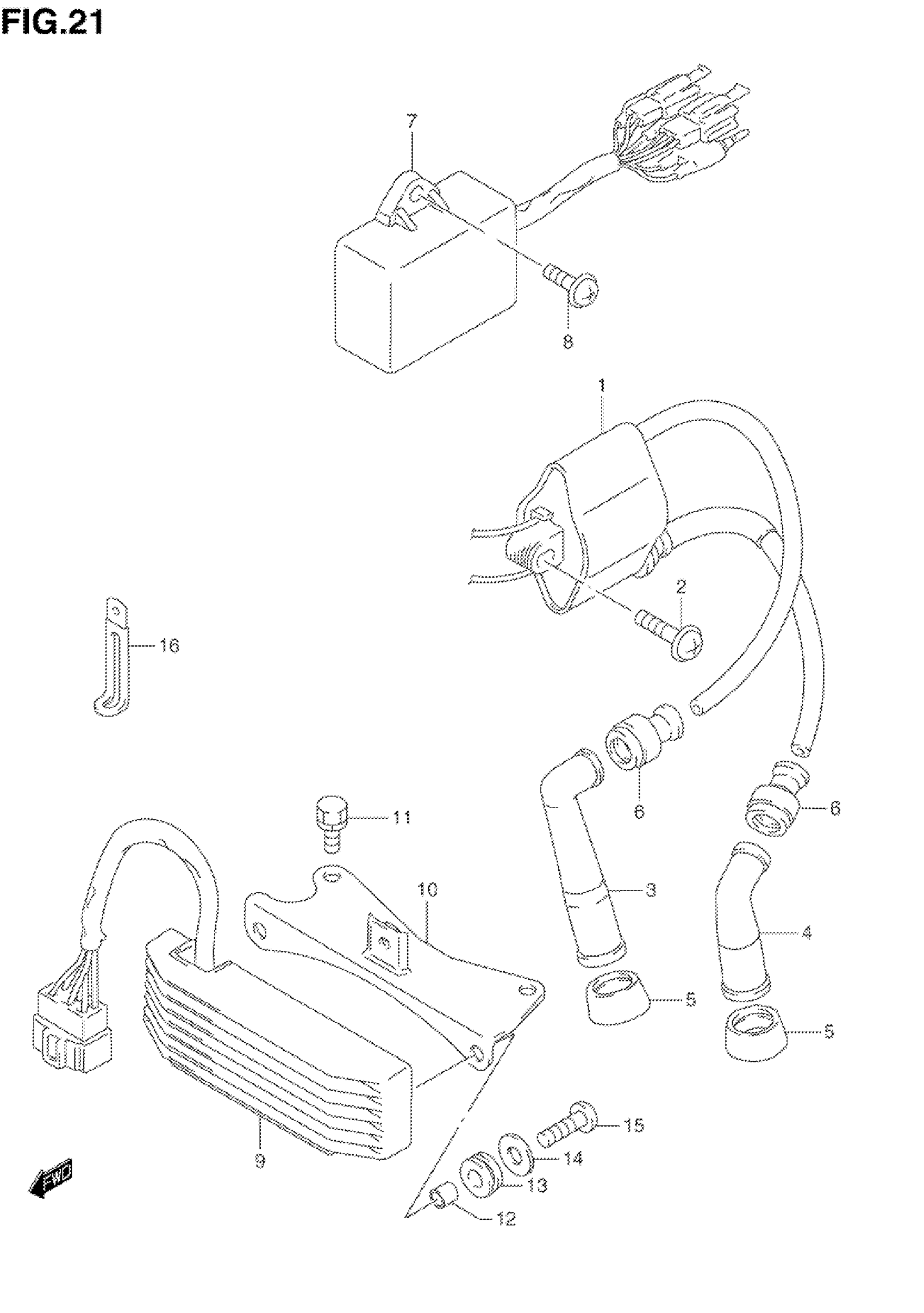

Suzuki DR650SES (1995) ELECTRICAL (MODEL N/P) Diagram

#

Description
Price

1

COIL ASSY,IGNIT This part replaces 33410-12D00.

33410-12D01

Unavailable

2

SCREW This part replaces 02112-16256.

02142-0625A

$1.49

3

CAP, SPARK PLUG

33510-45010

$24.99

4

CAP, SPARK PLUG

33510-43010

$24.99

5

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

6

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

7

CDI UNIT

32900-12D00

$573.20

8

SCREW This part replaces 02152-06168.

02112-16167

$3.15

9

RECTIFIER ASSY This part replaces 32800-12E00.

32800-12E01

$320.45

10

BRACKET

32830-12E00

Unavailable

11

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

12

SPACER (6.1X8X9.5) This part replaces 09180-06044.

09180-06248

$2.12

13

CUSHION This part replaces 09320-08048.

09320-08501

$3.23

14

WASHER (6.5X18X1)

09160-06056

$1.72

15

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

16

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

17

REFER TO FIG.21A (E-5) FOR

SPECIAL NOTE

Unavailable
