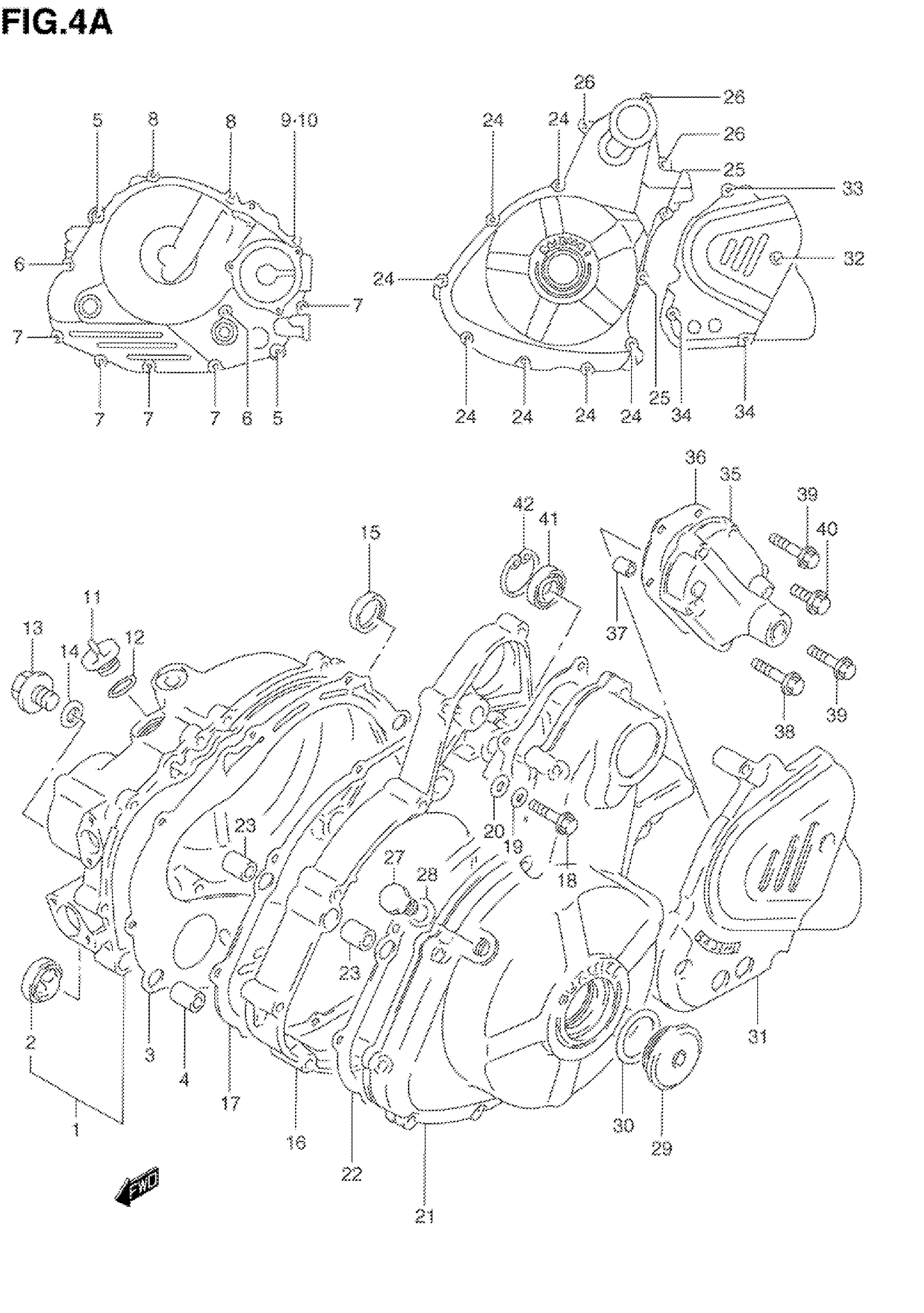

Suzuki DR650SES (1995) CRANKCASE COVER (MODEL R/S) Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-12D30

Unavailable

2

LENS, OIL LEVEL

11971-33210

$18.20

3

GASKET, CLUTCH COVER

11482-12D01

$32.30

4

PIN

04211-13189

$2.19

5

BOLT (6X50)

01547-06507

$2.41

6

BOLT (6X40)

01547-06407

$2.32

7

BOLT (6X35)

01547-06357

$2.03

8

BOLT (6X25)

01547-06257

$2.03

9

BOLT (6X25)

09103-06180

$3.72

10

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

11

.PLUG This part replaces 09259-20008.

09259-20008-XC0

$7.50

12

O RING

09280-17003

$1.65

13

PLUG, OIL CHECK

09247-14015

$4.45

14

GASKET

09168-14002

$2.26

15

PLUG, CLUTCH COVER HOLE

11342-15D00

$10.07

16

COVER, MAGNETO INNER

11331-12D30

Unavailable

17

GASKET, MAGNETO INNER COVER

11483-12D10

$33.85

18

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

19

LOCK WASHER This part replaces 08321-01063.

08321-0106A

$1.84

20

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

21

COVER, MAGNETO OUTER

11351-12D40

Unavailable

22

GASKET, MAGNETO OUTER COVER

11483-12D20

$74.01

23

PIN

04211-13189

$2.19

24

BOLT (6X60)

01547-06607

$3.18

25

BOLT (6X55)

01547-06557

$2.32

26

BOLT (6X35)

01547-06357

$2.03

27

PLUG, T.D.C

09247-12103

$2.84

28

GASKET

09168-12002

$1.59

29

PLUG

09259-36016-20H

$13.80

30

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

31

COVER, ENGINE SPROCKET

11361-12D40

Unavailable

32

BOLT (6X45)

01547-06457

$2.32

33

BOLT (6X35)

01547-06357

$2.03

34

BOLT (6X20)

01547-06207

$2.01

35

COVER,GEAR SHF

11371-12D30

$86.82

36

GASKET, GEAR SHIFT COVER

11485-12D01

$5.83

37

PIN

04211-09129

$1.65

38

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

39

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

40

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

41

BEARING, STARTER PINION

09262-12001

$18.47

42

CIRCLIP This part replaces 08331-41286.

08331-41289

$2.68
