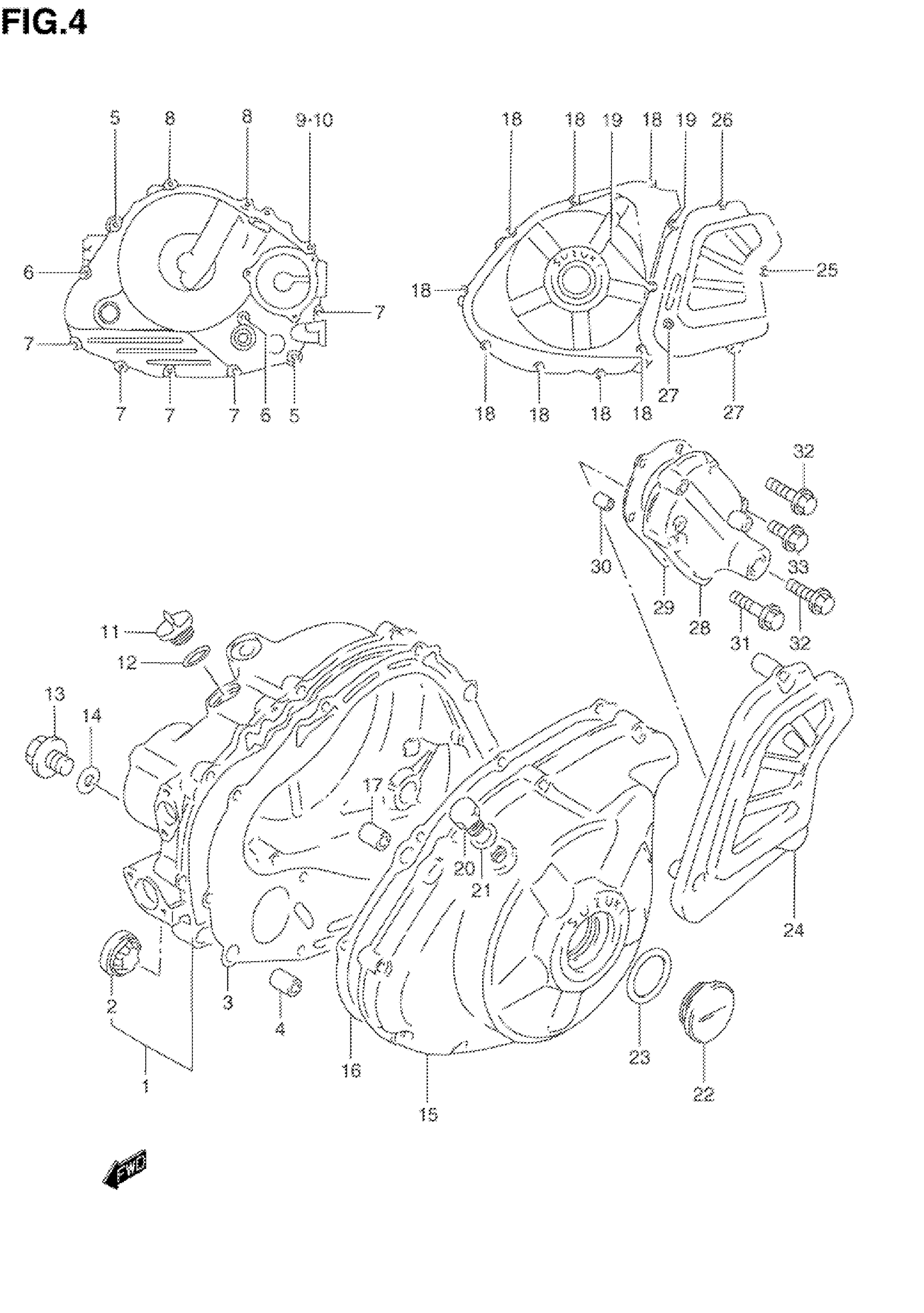

Suzuki DR650SES (1995) CRANKCASE COVER (MODEL N/P) Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-12D30

Unavailable

2

LENS, OIL LEVEL

11971-33210

$18.20

3

GASKET, CLUTCH COVER

11482-12D01

$32.30

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

BOLT (6X50)

01547-06507

$2.41

6

BOLT (6X40)

01547-06407

$2.32

7

BOLT (6X35)

01547-06357

$2.03

8

BOLT (6X25)

01547-06257

$2.03

9

BOLT (6X25)

09103-06161

Unavailable

10

WASHER This part replaces 08322-21067.

08322-01067

$2.13

11

PLUG, OIL FILLER

09259-20019

$11.52

12

O RING

09280-17003

$1.65

13

PLUG, OIL CHECK

09247-14026

$3.76

14

GASKET

09168-14004

$1.83

15

COVER, MAGNETO

11351-12D30

Unavailable

16

GASKET, MAGNETO COVER

11483-12D10

$33.85

17

PIN This part replaces 09206-13001.

04211-13189

$2.19

18

BOLT (6X30)

01547-06307

$2.03

19

BOLT (6X25)

01547-06257

$2.03

20

PLUG, T.D.C

09247-12104

$2.73

21

GASKET

09168-12002

$1.59

22

PLUG, SHAFT HOLE This part replaces 09259-36018.

09259-36016-20H

$13.80

23

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

24

COVER, ENGINE SPROCKET

11361-12D30

Unavailable

25

BOLT (6X45)

01547-06457

$2.32

26

BOLT (6X35)

01547-06357

$2.03

27

BOLT (6X20)

01547-06207

$2.01

28

COVER,GEAR SHF

11371-12D30

$86.82

29

GASKET, GEAR SHIFT COVER

11485-12D01

$5.83

30

PIN

04211-09129

$1.65

31

BOLT (6X35)

01547-06357

$2.03

32

BOLT (6X30)

01547-06307

$2.03

33

BOLT (6X20)

01547-06207

$2.01

34

REFER TO FIG.4A(B-7) FOR

SPECIAL NOTE

Unavailable
