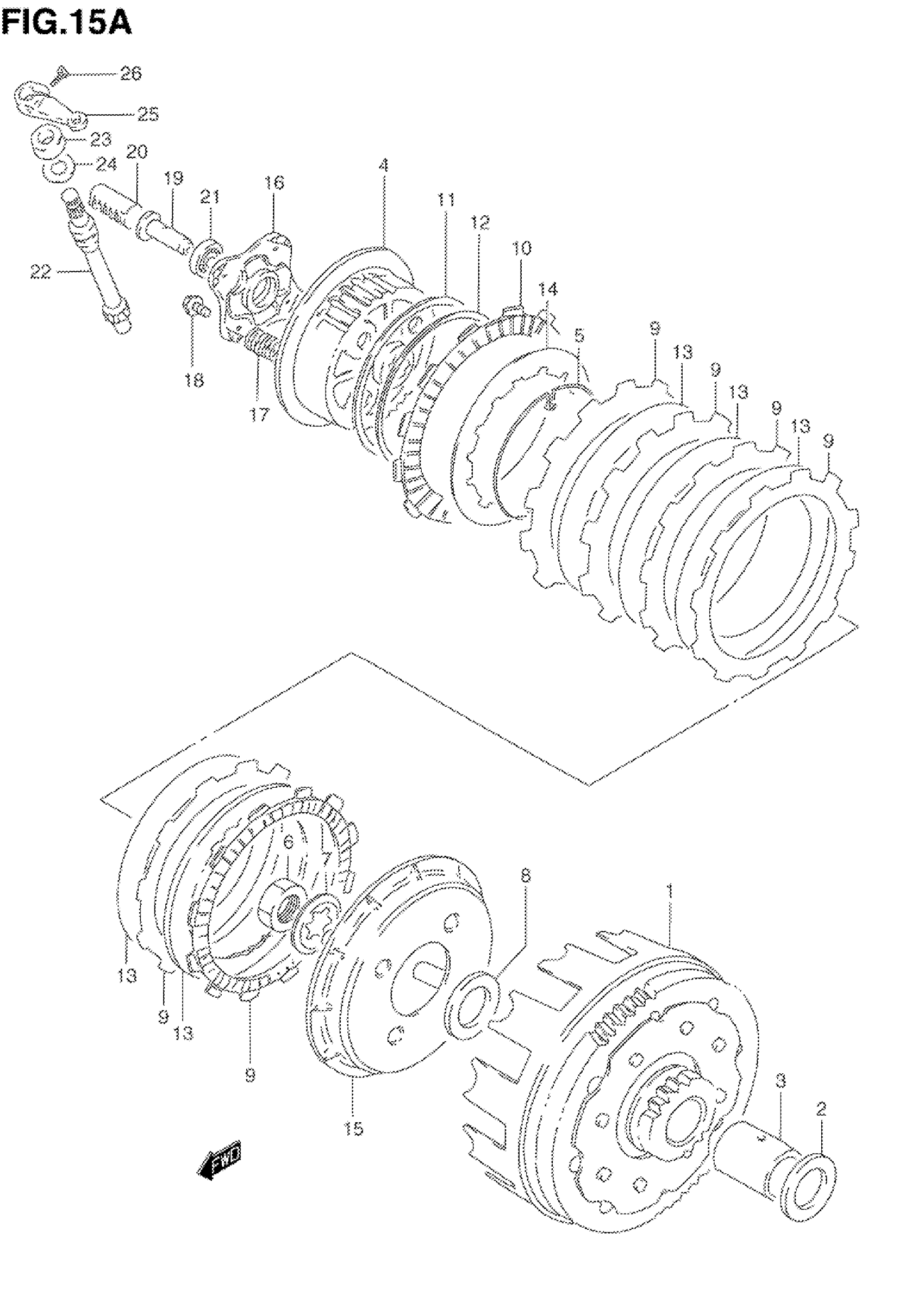

Suzuki DR650SES (1995) CLUTCH (MODEL R/S) Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN | NT:66/18

21200-12D01

Unavailable

2

WASHER

08211-22383

$3.93

3

SPACER

09180-22023

$25.12

4

HUB, SLEEVE

21410-12D01

Unavailable

5

RING, WAVE WASHER

21481-20A01

Unavailable

6

NUT

09140-22003

Unavailable

7

LOCK WASHER

09167-22005

$2.11

8

WASHER

08211-22383

$3.93

9

PLATE, DRIVE (T:2.8)

21441-12D01

$20.64

10

PLATE, CLUTCH DRIVE NO.2 This part replaces 21442-12D00.

21442-37401

$18.67

11

SEAT, WAVE WASHER (T:1.8)

21471-12E00

$14.55

12

WAVE WASHER

09164-00004

$11.35

13

PLATE, DRIVEN, NO.1 (T:1.4)

21451-14A00

$9.52

14

PLATE, DRIVEN, NO.2 (T:2.0)

21451-05A00

$9.83

15

DISK, PRESSURE

21462-12D00

Unavailable

16

PLATE, RELEASE

21465-37400

$20.45

17

SPRING

09440-20013

$3.57

18

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

19

PIECE, CLUTCH PUSH

23121-14A00

Unavailable

20

RACK, RELEASE

23165-37400

Unavailable

21

BEARING

09262-12001

$18.47

22

PINION, RELEASE

23261-16501

Unavailable

23

OIL SEAL (12X22X9)

09285-12006

$6.32

24

WASHER (14.5X22X1) This part replaces 09160-14003.

09160-14054

$2.07

25

ARM, RELEASE

23271-45400

Unavailable

26

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78
