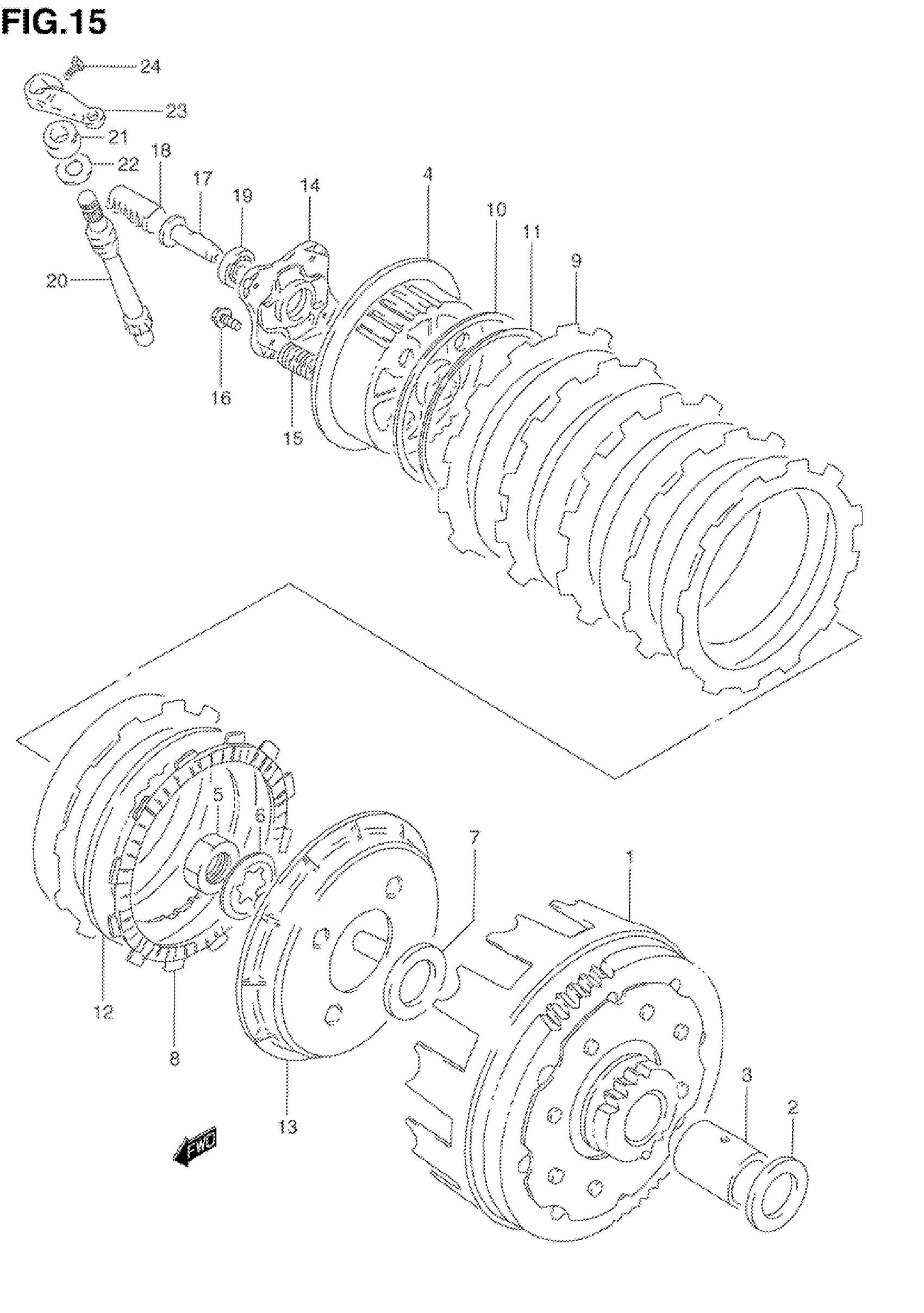

Find the part on the Clutch diagram for your 1995 Suzuki DR650SES, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki DR650SES Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVEN | NT:66/18 MODEL N This part replaces 21200-12D00.

21200-12D01

1
Out of stock

1

GEAR, PRIMARY DRIVEN | NT:66/18 MODEL P

21200-12D01

1
Out of stock

2

WASHER

08211-22383

1
Out of stock

3

SPACER

09180-22023

1
Out of stock

4

HUB, SLEEVE This part replaces 21410-12D00.

21410-12D01

1
Out of stock

5

NUT

09140-22003

1
Out of stock

6

LOCK WASHER

09167-22005

1
Out of stock

7

WASHER

08211-22383

1
Out of stock

8

PLATE, DRIVE (T:2.8)

21441-12D01

6
Out of stock

9

PLATE, CLUTCH DRIVE NO.2 This part replaces 21442-12D00.

21442-37401

1
Out of stock

10

SEAT, WAVE WASHER (T:1.4)

21471-37400

1
Out of stock

11

WAVE WASHER

09164-00004

1
Out of stock

12

PLATE, CLUTCH DRIVEN (T:1.6) This part replaces 21451-12D00.

21451-14A00

6
Out of stock

13

DISK, PRESSURE

21462-12D00

1
Out of stock

14

PLATE, RELEASE

21465-37400

1
Out of stock

15

SPRING

09440-20013

4
Out of stock

16

BOLT This part replaces 01517-06207.

01550-06207

4
Out of stock

17

PIECE, CLUTCH PUSH

23121-14A00

1
Out of stock

18

RACK, RELEASE

23165-37400

1
Out of stock

19

BEARING (12X28X8) This part replaces 08110-60010.

09262-12001

1
Out of stock

20

PINION, RELEASE

23261-16501

1
Out of stock

21

OIL SEAL (12X22X9)

09285-12006

1
Out of stock

22

WASHER (14.5X22X1) This part replaces 09160-14003.

09160-14054

1
Out of stock

23

ARM, RELEASE

23271-45400

1
Out of stock

24

BOLT This part replaces 01107-06208.

01500-06207

1
Out of stock

25

REFER TO FIG.15A (D-3) FOR

SPECIAL NOTE

—
Out of stock
